User Manual for Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays

Click to enlarge the picture
Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays Contents of the user manual for the Chief CM2-L40U Universal Automated Pop-Up Lift
  • Product category: Monitor Furniture & Cabinet Mounts Chief
  • Brand: Chief
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Chief Monitor Furniture & Cabinet Mounts

Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays
User manual for the Chief CM2-L40U Universal Automated Pop-Up Lift contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Chief product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!



Product description

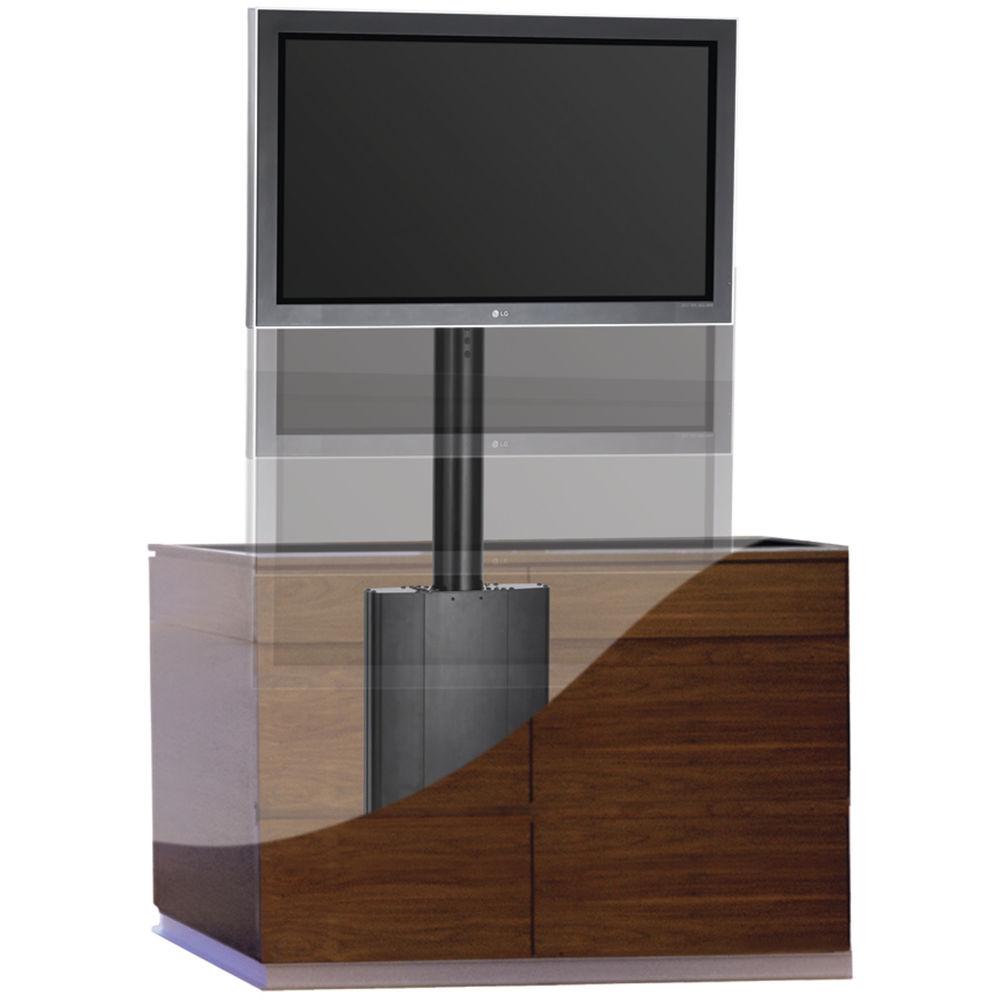

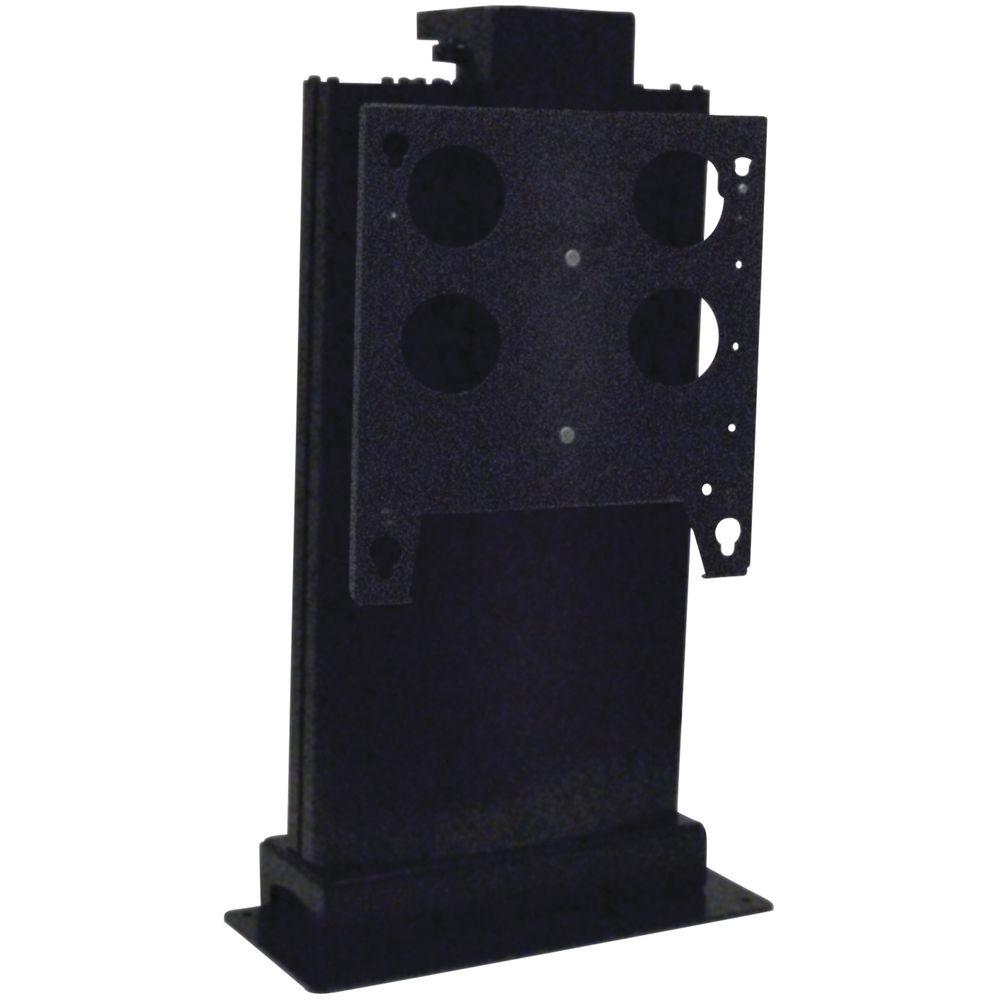

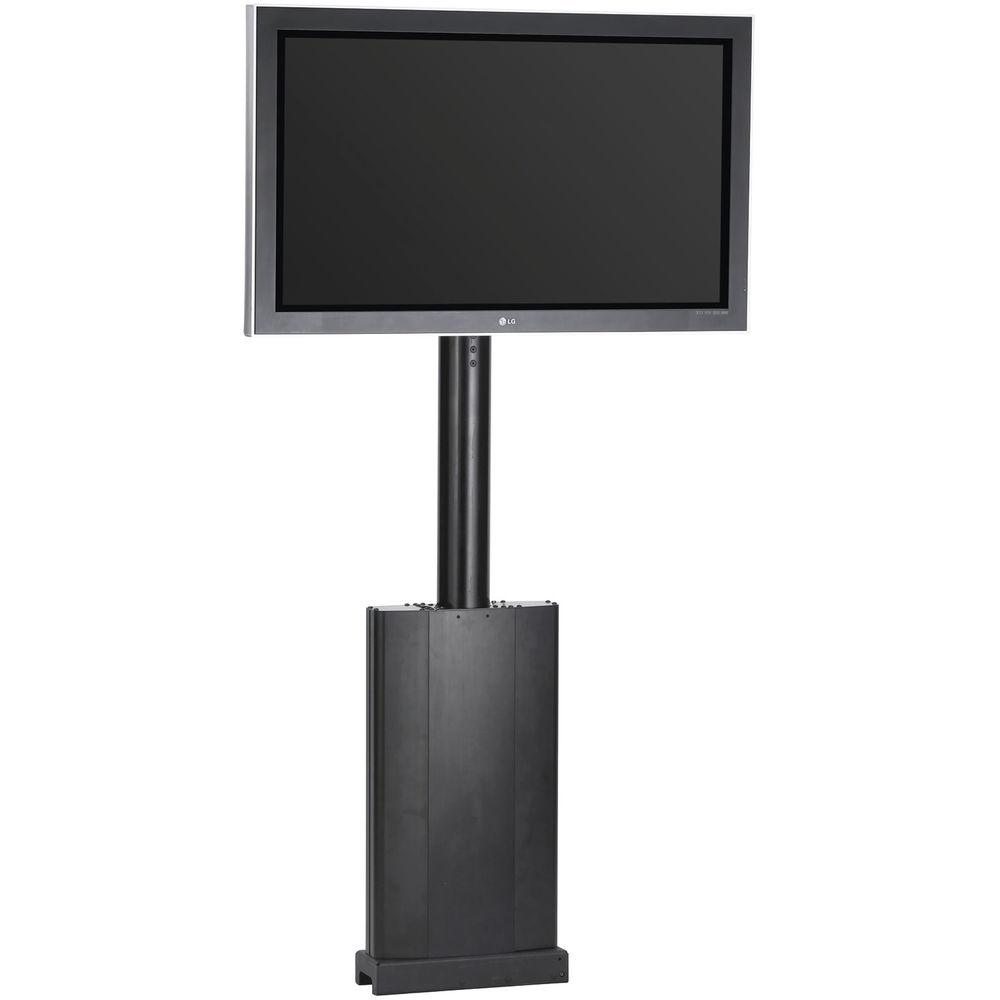

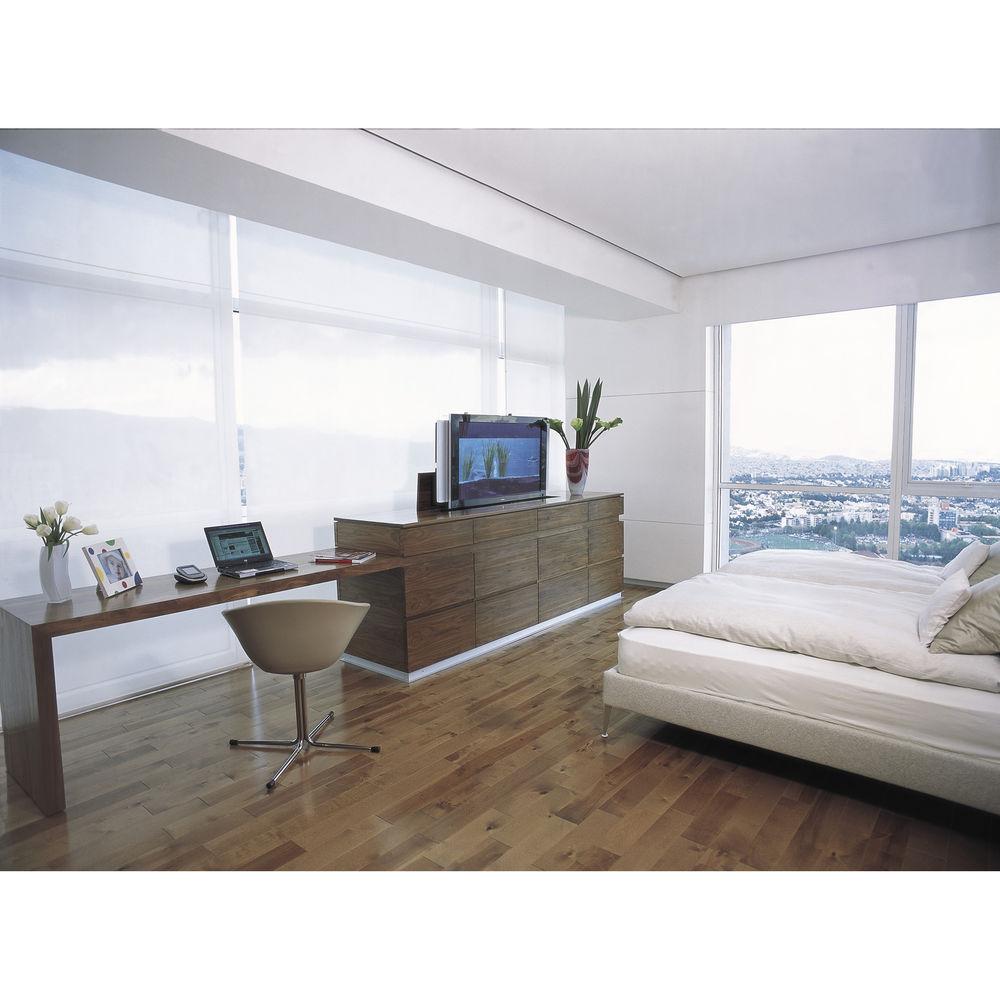

Create a custom installation that permits your display to be hidden when not in use, yet lift out into a show position as needed. With the Chief CM2L40 Automated Pop-Up Lift, you can raise or lower your flat panel screen with the press of a button. Designed for flat panel TVs up to 61" or 170 lbs, the CM2L40 provides fast adjustments at over 2" per second. The lift provides up to 40" of travel with a stored height of only 31", and the exclusive Auto Drive gliding system provides fast and quiet adjustment. Customizable store and show positions allow fine-tuning for any installation, and the unique lift design eliminates flat panel TV width constraints. A cable management system makes installation clean and hassle free. The CM2L40U includes a universal interface bracket making it compatible with hundreds of flat panel displays from 32-61" or 170 lbs. However, if you want to confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro.fwutvfrdbcfefzscacubvqvbu

Viewing Conveniences

  • Exclusive Auto Drive gliding system provides fast and quiet travel at over 2" (51 mm) per second with preset viewing positions.

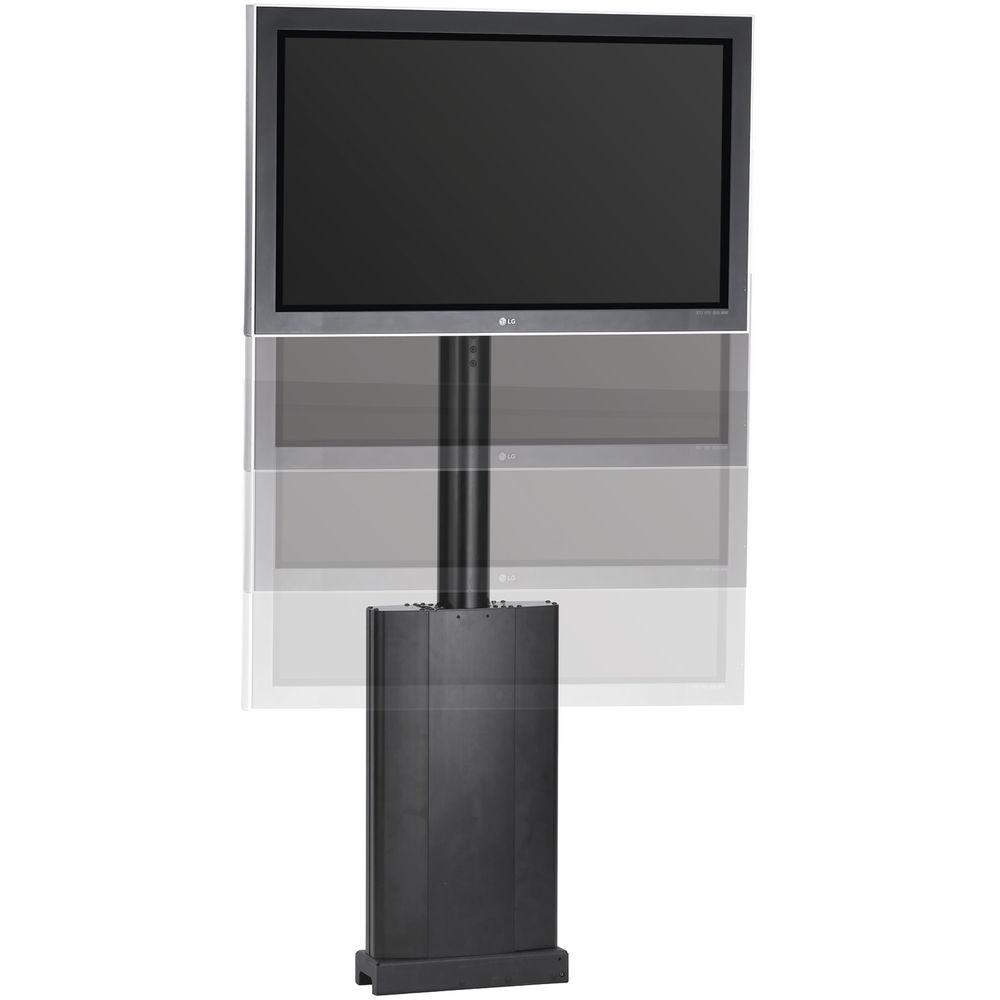

  • Telescoping design collapses to a stored height of 31" (790 mm) with approximately 40" (101.6 cm) of travel.
  • Multiple control options include serial communication, dry contact control and IR remote (included).

Easy Installation

  • Ships fully assembled.
  • Unique lift design eliminates flat panel TV width constraints.
  • Q-Latch Mounting System simplifies installation. It uses a lockable latch to safely secure display to the mount- no tools required. Provides quick display connect/disconnect and is compatible with multiple accessories. A padlock can be used to secure the display.
  • Customizable store and show positions allow fine-tuning for any installation.
  • A unique cable management system allows cables to move freely within the lift and makes installation clean and hassle free.
UPC: 841872098036 In the Box Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays
  • Automated Flat-Display Lift
  • Remote Control
  • 6" Power Cable
  • Ten-Year Warranty Against Defects In Material & Workmanship
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Chief CM2-L40U Universal Automated Pop-Up Lift for Flat Panel Displays in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Chief CM2-L40U Specs

    Lift Type Automatic telescoping lift
    Depth From Mounting Source Not specified by manufacturer
    Mounting Source Opening (WxD) Determined by the size of the flat-panel display used with lift
    Closure Panel Dimension (WxD) Determined by the size of the flat-panel display used with lift
    Max Equipment Size Flat-panel displays up to 61"
    Travel Distance 40"
    Travel Speed 2" per second
    Adjustments Custom adjustable store & show positions
    Control Option Remote control
    Integrated Control None
    Low Voltage None
    Construction Steel
    Power Requirements 120VAC
    Maximum Current Draw Not specified by manufacturer
    Dimensions Not specified by manufacturer
    Weight Capacity 190 lbs
    Weight Not specified by manufacturer
    Package Weight 135.0 lb
    Box Dimensions (LxWxH) 39.0 x 28.13 x 18.0"
