User Manual for Chief ConnexSys LVSXU Video Wall Landscape Mounting System Click to enlarge the picture
Contents of the user manual for the Chief ConnexSys LVSXU Video Wall Landscape
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
 |
User manual for the Chief ConnexSys LVSXU Video Wall Landscape contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

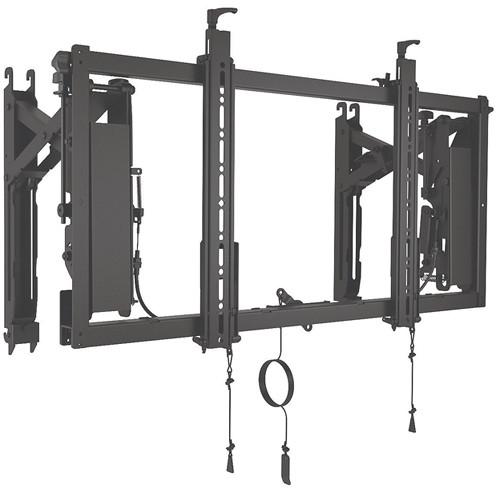

Product description The Chief ConnexSys LVSXU Video Wall Landscape Mounting System supports 42 to 80" displays up to 150 lb on a single strut channel for quick row-leveling. It can extend your display from 4 to 13.4" from the wall and supports 200 x 100 to 700 x 400 mm mount patterns in either landscape orientation. It provides -2.5 to 4° of tilt adjustment, 1" of height adjustment, and three levels of lateral adjustment. The ConnexSys LVSXU mount installs on a separately sold rail and provides six points of adjustment in one location at the top. - Speed
-
- Hang units on a single strut channel for quick row-leveling
- Eliminates the need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect latching secures displays
- PowerZone provides 6 points of adjustment in one location at the top of the mount
- Alignment
-
- Height adjustment of ±1" on each interface
- Tilt adjustment at a single pivot point protects displays from twisting
- Depth can be set between 4 and 7.4" from the wall, providing a range of "home positions", making it suitable for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
- Walls can be out of alignment by up to 2" horizontally

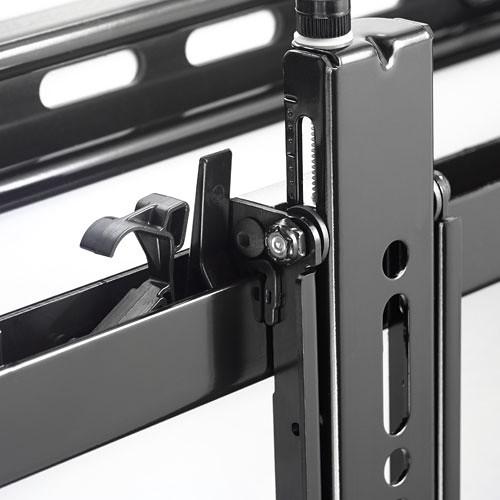

- Three levels of lateral adjustment: Mount left/right along rail, interface left/right along mount, and lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions
- Serviceability
-

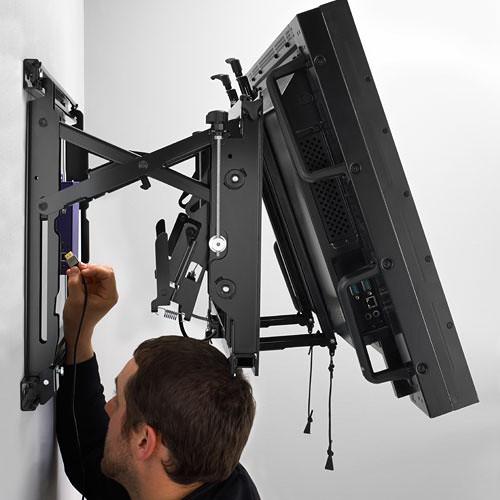

- RapidDraw display release system – cord release system gently and remotely pops any screen out for easy access and can be extended up to 13.4" for service
- Protects displays by not requiring an aggressive push to release/pop-out
- Releases only on demand, preventing accidental pop-outs
- Cord can be set up to pull for release from any 90° angle
- Kickstand provides 20° of bottom tilt access
- Rigidity
-
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable "home" depth position locks screens in place to maintain alignment despite accidental bumps/pushes
- Additional Features
-
- Accepts padlocks with up to 0.25" shank diameter
- Each mount comes with adjustments set in the same position
UPC: 841872161174 In the Box Chief ConnexSys LVSXU Video Wall Landscape Mounting System Assembly Hardware Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief ConnexSys LVSXU Video Wall Landscape Mounting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LVSXU Specs | | | Supported Screen Sizes | 42 to 80" / 106.7 to 203.2 cm | | Supported Weight Capacity | 150 lb / 68.2 kg | | Mounting-Hole Pattern | 200 x 100 to 700 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -2.5 to +4
