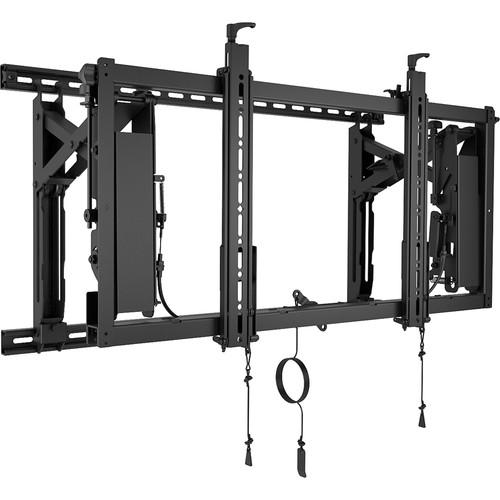

User Manual for Chief ConnexSys Video Wall Landscape Mounting System with Rail Click to enlarge the picture
Contents of the user manual for the Chief ConnexSys Video Wall Landscape Mounting
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief ConnexSys Video Wall Landscape Mounting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The TAA-compliant Chief ConnexSys Video Wall Landscape Mounting System supports 42 to 80" displays up to 150 lb on a single strut channel for quick row-leveling. It can extend your display up to 13.4" from the wall and supports 200 x 100 to 700 x 400 mm mount patterns in landscape orientation. It also provides -2.5 to 4° tilt adjustment. This mount includes a rail and features tool-free ClickConnect latching to secure displays. PowerZone technology provides six points of adjustment in one easy-to-access location at the top of the mount. - Hang units on a single strut channel for quick row-leveling
- Reduced installation time, particularly for XL and recessed configurations
- Tool-free ClickConnect latching secures displays
- PowerZone provides six points of adjustment in one easy-to-access location at the top of the mount
- RapidDraw display release
- Kickstand provides 20° of bottom tilt access
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
In the Box Chief ConnexSys Video Wall Landscape Mounting System with Rail (TAA-Compliant) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief ConnexSys Video Wall Landscape Mounting System with Rail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LVS1U-G Specs | | | Supported Screen Sizes | 42 to 80" / 106.7 to 203.2 cm | | Supported Weight Capacity | 150 lb / 68.2 kg | | Mounting-Hole Pattern | 200 x 100 to 700 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -2.5 to +4
