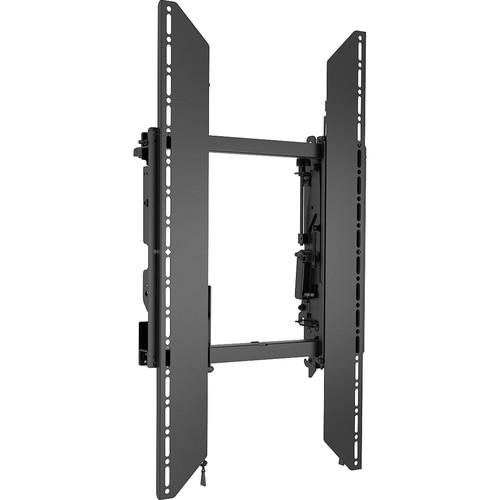

Product description The Chief ConnexSys Video Wall Portrait Mounting System, which ships without rails, hangs a video display on a single strut channel for simplified row leveling. This mount features tool-free ClickConnect latching that secures displays and PowerZone technology that provides six points of adjustment in one easy-to-access location at the top of the mount. - Hangs displays on a single strut channel for simplified row leveling - No need for horizontal spacers
- Engineered for speed and ease of installation, especially for XL and recessed configurations
- Tool-free ClickConnect latching secures displays
- PowerZone provides six points of adjustment in one location at the top of the mount, free from obstruction
- Mount hooks on any depth unistrut or mounting rails
Note:Rails not provided on this model - Open design allows space for placing peripheral devices, electrical and cables
- Tilt adjustment at single point protects displays from twisting
- RapidDraw display release pops out screen for access and can be extended 13.4" for service (34.0 cm)
- More than 3" (7.6 cm) of depth adjustment for flush video walls
- Kickstand provides 20° of bottom tilt access
- Frame designed to keep displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
- Locking display system for screen security
- Each mount comes out of box with adjustments set in exact same position
UPC: 841872161181 In the Box Chief ConnexSys Video Wall Portrait Mounting System without Rails Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief ConnexSys Video Wall Portrait Mounting System without Rails in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LVSXUP Specs | | | Supported Screen Sizes | 40 to 80" / 101.6 to 203.2 cm | | Supported Weight Capacity | 150 lb / 68.2 kg | | Mounting-Hole Pattern | 200 x 100 to 800 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -2.5 to +4
