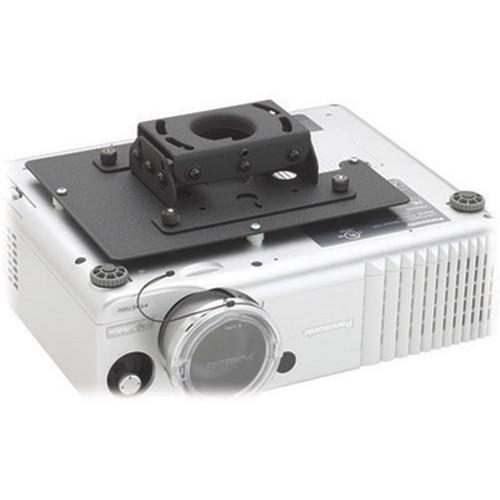

Product description Chief's RPA-123 RPA Series Inverted Ceiling Mount (Black) with the exclusive All-Points Security System is the top-selling projector mount in the industry. More RPA Series Mounts are installed in offices, schools and homes than any other mount. Why is the RPA so popular? Because it gives you everything you need for a quick installation, low-profile look and hassle-free projector maintenance. Also, a winner in the Media & Methods 2003 Awards Portfolio for making a significant contribution to the school market. Note: The RPA can be flush mounted without additional accessories. For other types of installations, you will need to order from Chief's extensive line of accessories; Threaded Extension Column and Threaded Rod not included - Low-profile, aesthetic design
- Quick projector disconnect/reconnect
- Steel-into-steel construction
- UL listed for proven strength
- Easy installation - no assembly
- Independent roll, pitch and yaw adjustments make it easy to precisely register the projector
- Disconnect without affecting adjustments Convenient lamp and filter access
- Convenient lamp and filter access
- All-Points Security System included at no additional cost (not available with all RPA Series Mounts)
- Three ceiling mounting methods
- Flush mount without disassembly
- Allows cables to be routed through the top of the mount without additional accessories
- Compatible with a large assortment of accessories to easily overcome a variety of installation challenges
- Allows lateral shift by adding the LSB-100 Lateral Shift Accessory
- Compatible with the PG-1 Projector Guard Security Cage
- Allows natural convection ventilation
LSB-100 Lateral Shift Accessory - Often times ceiling structures will not allow the projector to be mounted in exact alignment with the projection screen. The LSB-100 Lateral Shift Accessory saves an abundance of time and hassles in trying to solve this common problem. The LSB-100 allows the projector to be shifted 3" right or left of the installation spot (5.75" on projectors under 15 lb). Also use the LSB-100 to easily accommodate different lens placement when projectors are replaced in existing installations. Compatible with all RPA and UPC Series Mounts, and maintains a quick disconnect feature. Includes All-Points Security System hardware.
In the Box Chief Custom Inverted LCD/DLP Projector Ceiling Mount for LCD/DLP and CRT Projectors - RPA-123 (Black) RPA-123 Bracket SLB Bracket Plate, Adjustment 4 x Screws, Self-Tapping, Pan Head, 10-24 x 1/2", with Washer Screw, Set, 5/16" Ten-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Custom Inverted LCD DLP Projector Ceiling Mount for LCD DLP and CRT Projectors - RPA-123 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief RPA-123 Specs | | | Depth From Mounting Source | Not Specified by Manufacturer; The RPA adds approximately 2.5" (64 mm) to the installation | | Max Equipment Size | 50 lb (22.7 kg) | | Adjustments | Roll Adjustment: +/- 4° adjustment up or down Loosen screw, adjust mount and tighten screw to hold adjustmentPitch Adjustment: +/- 25° adjustment on each side of the mount. Loosen screw, adjust mount and tighten screw to hold adjustment. Full range of pitch in a flush mount installation. Yaw Adjustment: 360° by turning the mount on the threaded column and securing in place with set screw. 12° yaw possible on flush mount using slots in top of RPA. | | | | Construction | Steel, Black | | Dimensions | 6.25 x 1.75 x 5.5" (159 x 44 x 140 mm) Height does not include interface bracket | | Weight Capacity | 50 lb (22.7 kg) Each mount is designed to support the weight of the projector model(s) specified; However, your ceiling must hold at least five times the weight of your installation | | Weight | Not Specified by Manufacturer | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 9.5 x 9.5 x 3.75" |
