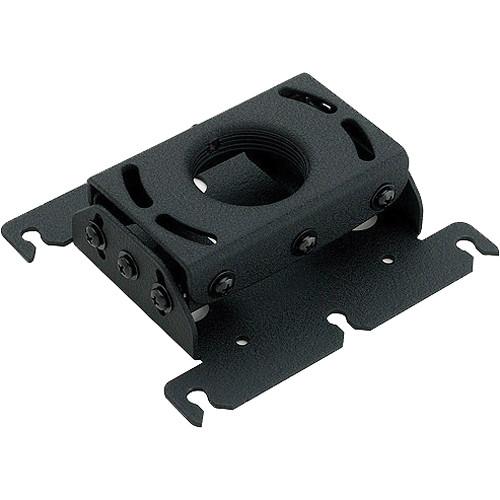

Product description The black Custom RPA Ceiling Projector Mount from Chief consists of a universal top and an SLB-302 Custom Interface Bracket. The universal top can be flush mounted to the ceiling and the custom interface bracket is designed to be attached to Panasonic projectors.
For security against theft, the mount includes the All-Points Security System, which features security hardware at all key connection points to lock the assembly in place. You can lock the yaw, roll, and pitch adjustments to ensure that the position you set your projector at will not be tampered with.
The mount can safely hold projectors weighing up to 50 lb and can be easily flush mounted to a ceiling. In addition, this versatile mount can also be used with 0.25" threaded rods or a 1.5" NPT threaded extension column for different mounting configurations.
In addition to giving your installation a low-profile finish, the mount also features internal cable management for a neat look. Further, the custom designed mount allows for appropriate ventilation to keep your projector cool for optimum performance. Note: The mount is custom designed to support the weight of the projector models specified. However, your ceiling must hold at least 5 times the weight of your installation.
The SLB bracket can be used for Chief SMART-LIFTS.
Often ceiling structures do not allow the projector to be mounted in exact alignment with the projection screen. In this case, the LSB100 Lateral Shift Accessory (sold separately) can be used along with the mount to ensure appropriate alignment. This accessory also easily accommodate different lens placement when projectors are replaced in existing installations. - Low-profile top adds only 1.75" (44mm) to the projector height and the interface bracket adds an additional 0.75" (19mm)
- Independent roll, pitch, and yaw for quick and precise projector registration
- Quick connect/disconnect for convenient lamp and filter access on most projectors
- Maintains registration when disconnected and preset adjustments are not affected
- All-Points Security System features steel-into-steel locking hardware at all key connection points to protect against theft 1
Please Note: The use of the All-Points Security System is optional. close - Built-in cable management for a neat installation without the need for additional accessories
- Custom designed to allow for airflow that ventilates and helps cool projectors
- Can be easily flush mounted to the ceiling without any additional accessories for a low profile, simple installation 2
Please Note: If you need to lower the projector from a structural, finished, or suspended ceiling, appropriate accessories must be purchased separately. close - Other Mounting Options: Mount with 0.25" threaded rods or with 1.5" NPT threaded extension column 3
Please Note: The threaded rods and NPT extension column are not included in the package. These accessories and all the associated hardware must be purchased separately. close UPC: 841872155609 In the Box Chief Custom RPA Ceiling Projector Mount with SLB- 302 Interface Bracket (Black) SLB-302 Custom RPA Interface Bracket Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Custom RPA Ceiling Projector Mount with SLB- 302 Interface Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief RPA302 Specs | Compatible Projectors | Panasonic
PT-EW 530, 530L, 630, 630L, 630U
PT-EX 500, 500L, 600, 600L
PT-EZ 570, 570L, 570U, 570UL | | Compatible with | LSB100 Lateral Shift Accessory
Any 1.5" NPT threaded extension column | | Solution Type | Custom | | Roll | ±4° | | Pitch | ±25° | | Yaw | 360° | | Weight Capacity | 50.0 lb (22.7 kg) | | Dimensions (H x W x D) | Without Interface Bracket : 1.75 x 6.50 x 5.50" (44.00 x 165.00 x 140.00 mm) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 16.4 x 12.4 x 4.5" |
