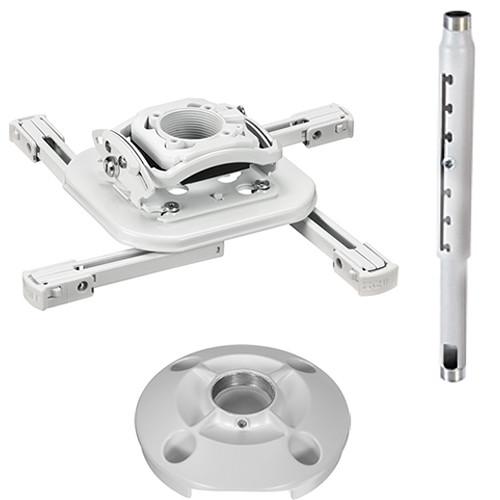

Product description The white Chief Flat Ceiling Mount Kit includes a white Mini Elite Universal Projector Mount (Lock A), a white 3-5' Adjustable Extension Column, and a white Speed-Connect Ceiling Plate and is ideal for mounting smaller projectors weighing up to 25 lb (11.3 kg).
Centris technology automatically adjusts the mount to support different projector weights, and also ensures fingertip tilting and rotation. MicroZone adjustments allow for quick and precise projector registration. Hassle-free cable routing on top of the mount prevents tangle and damage to the cords, and helps reduce clutter around the installation. A Q-lock quick release lever on the mount ensures quickly connecting or disconnecting the projector.
The 3-5' Adjustable Extension Column can be raised or lowered in height by increments of 1" (24.4 mm). Additionally, the notched design lets you adjust without having to disassemble the rods.
With a channel to route the cables through, the Speed-Connect Ceiling Plate provides a clean look and also makes the installation quick and easy. Locking hardware on the plate at the column connection point protects against theft. - RSMAUS Mini RPA Elite Projector Mount (White) The Chief RSMAUS Mini RPA Elite Projector Mount builds on the foundation of the highly successful RPA Elite mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.
Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent MicroZone adjustments and a 25 lb capacity. Centris Technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the RSMAUS is also quick to connect or disconnect for lamp or filter changes via the Q-Lock Release Lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates an "A" series key and lock.
Although the RSMAUS is considered universal insofar as it fits most projectors, to confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.zrrbeafbwetqfwatctxtfyrczebvwqdfcu - Smaller Form Factor
- Compact design is smaller than the RPA Elite by 1/3 and includes all the same features
- Micro-Adjustable
- MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
- Fingertip Positioning
- Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
- Cable Management
- Integrated cable management through top of mount without additional accessories
- Quick Release
- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)
UPC: 841872119816 - CMS-0305W 3-5' Speed-Connect Adjustable Extension Column (White) Threaded on both ends, the white Chief CMS-0305W is a 3 - 5' (91.4 - 152.4cm) adjustable extension column that can be used with any 1.5" NPT accessory to lower a projector or flat panel display to a desired height. Includes a continuously adjustable notch for length changes (1" increments) without disassembly, aluminum construction for fast and easy installation, and flow-through cable management with an integrated port for routing cables. Supports up to 500 pounds.
- Revolutionary notched design allows for lightning-fast height adjustments without disassembly
- Aluminum construction for easier installation - also saves on shipping costs
- Flow-through cable management with an integrated port on one end for routing cables
UPC: 841872092812 - CMS-115W Speed-Connect Ceiling Plate (White) The Chief CMS-115W Speed-Connect Adjustable Extension Column (White) focuses on speed of installation. The Speed-Connect Series was designed as an upgrade to the popular CMA Series of ceiling mount accessories. The Speed-Connect Series integrates easy-to-use features that focus on saving time and maximizing security. The Speed-Connect adjustable extension columns include a host of features to make your installations faster and more secure. Design innovations include a continuously adjustable notch for length changes (1" increments) without disassembly, aluminum construction for easier installation and flow-through cable management with an integrated port (12" columns or longer) for routing cables. Includes 1.5" NPT threads on both ends (in 6"-12' lengths) and can be used with many of Chief's popular accessories.
- Low-profile, aesthetic design
- Integrated cable management - Allows cables to exit the top of the plate through the cable exit port
- All-Points Security System - Exclusive locking hardware at column connection point to protect against theft
- Aluminum construction for optimal strength in a lightweight design
UPC: 841872076096 In the Box Bundle Items RSMAUS Mini RPA Elite Projector Mount (White) zrrbeafbwetqfwatctxtfyrczebvwqdfcu - Nuts, Screws and Hardware
- 10 Year Manufacturer's Warranty
CMS-0305W 3-5' Speed-Connect Adjustable Extension Column (White) CMS-115W Speed-Connect Ceiling Plate (White)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Flat Ceiling Mount Kit for Projectors up to 25 lb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RSMAUS Mini RPA Elite Projector Mount (White)
| Compatibility | To confirm the compatibility of this mount with your projector, visit Chief's | | Adjustments | Roll: +/-3°
Pitch: +/-15°
Yaw: 360° | | Construction | Steel | | Dimensions (HxWxD) | 1.83 x 4.37 x 5.07" (4.6 x 11.1 x 12.9 cm) | | Weight Capacity | 25 lbs (11.3 kg) | | Color | White | | | | Box Dimensions (LxWxH) | 10.4 x 10.3 x 4.6" | - CMS-0305W 3-5' Speed-Connect Adjustable Extension Column (White)
| Construction | Aluminum | | Finish | White | | Length | 3-5' | | Adjustments | Not Specified by Manufacturer | | Weight | Capacity: 500 lbs (226.8kg) | | | | Box Dimensions (LxWxH) | 42.2 x 3.8 x 3.8" | - CMS-115W Speed-Connect Ceiling Plate (White)
| Construction | Aluminum, White | | Dimensions | 6.5 x 6.5 x 1.8" (16.51 x 16.51 x 4.57 cm) | | Weight | Not specified; Weight Capacity: 500 lb (186.62 kg) | | | | Box Dimensions (LxWxH) | 6.8 x 6.7 x 2.8" |
