User Manual for Chief Flat Panel Single Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Chief Flat Panel Single Ceiling Mount
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
 |
User manual for the Chief Flat Panel Single Ceiling Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

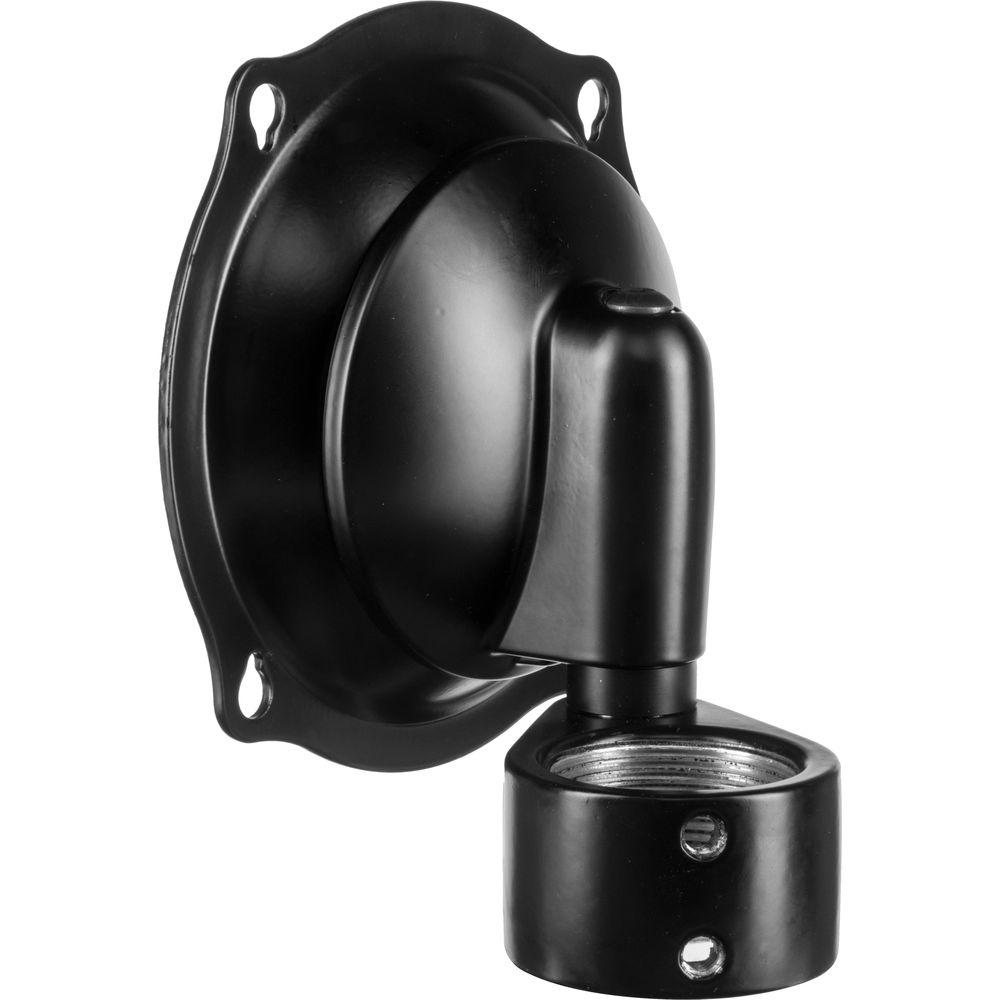

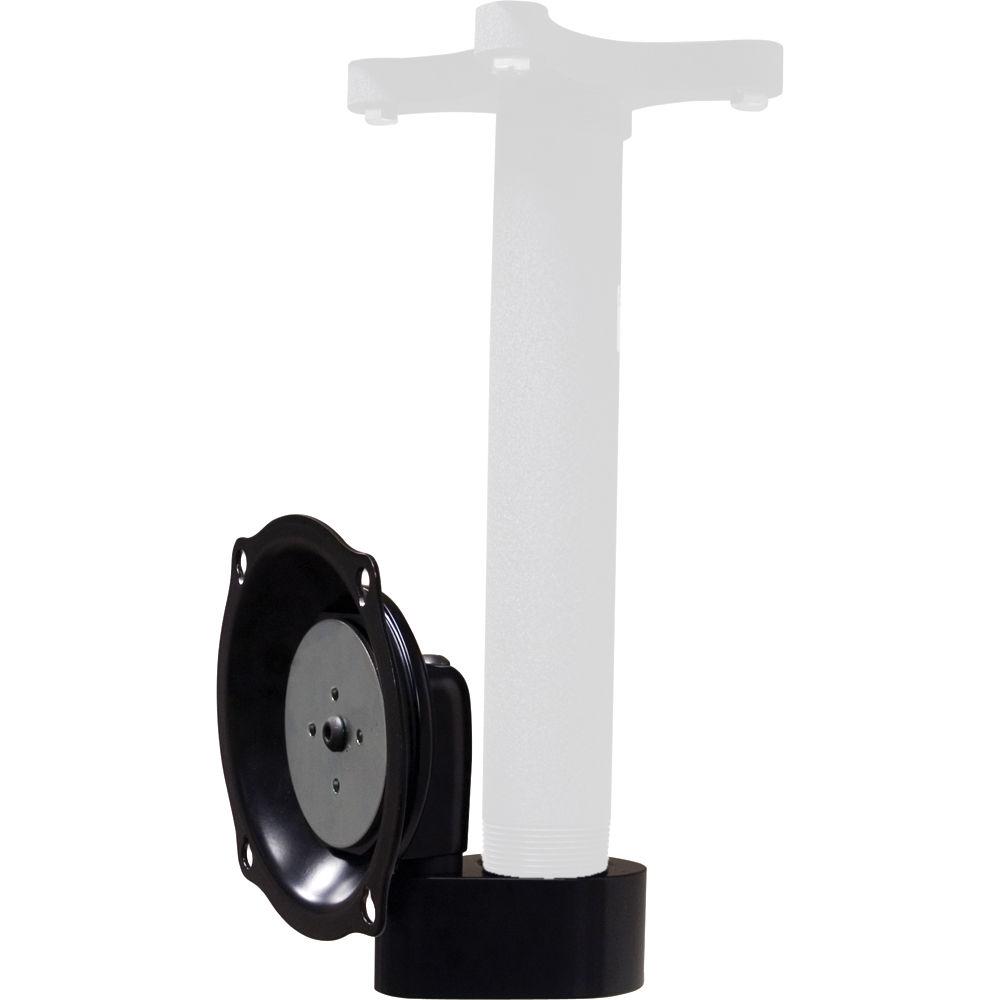

Product description The Chief JHSUB Flat Panel Single Ceiling Mount is a clean, attractive way to quickly mount flat panel TVs up to 45" to the ceiling. Installation requires separate purchase of an extension column and ceiling plate to suit your specific situation. These mounts are useful in a variety of applications such as display, convention, entertainment retail or any situation that might benefit from overhead viewing and extra floor space. In multi-panel installations features like Centris fingertip tilt technology and the ability mount the display in landscape or portrait orientation make it easy to align each panel with the others. As shipped the mount is capable of infinite VESA adjustment from 100x100 to 400x400 mm or may be adapted to non-VESA compatible panels via an optional MSB interface bracket. Please check compatibility with your specific TV at the manufacturer's website. - Centris Technology provides smooth fingertip tilt in all directions.
- Screen angle stays set in place until you decide to re-adjust.
- Post-installation leveling with no tools necessary.
- Fast and easy screen positioning with lockdown capability.
- Portrait and landscape mounting capability.
- Easily route cables through 1.5" NPT extension column. Set screw secures mount to column for extra security.
- Infinite VESA adjustment from 100 x 100 mm to 400 x 400 mm.
- MSB interface bracket can be purchased separately for non-VESA compatible screens.
UPC: 841872114408 In the Box Chief Flat Panel Single Ceiling Mount (Black) Installation Manual 10 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Flat Panel Single Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief JHSUB Specs | Mount Type | Flat ceiling mount | | Max Equipment Size | 45" (160 cm) | | Adjustments | Tilt: +/- 15°
Roll: +/- 2°
Yaw: 360° | | Dimensions | 6 x 6.59 x 5.05" (15.2 x 16.7 x 12.8 cm) | | Weight Capacity | 75 lbs (28 kg) | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 19.3 x 10.4 x 3.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
