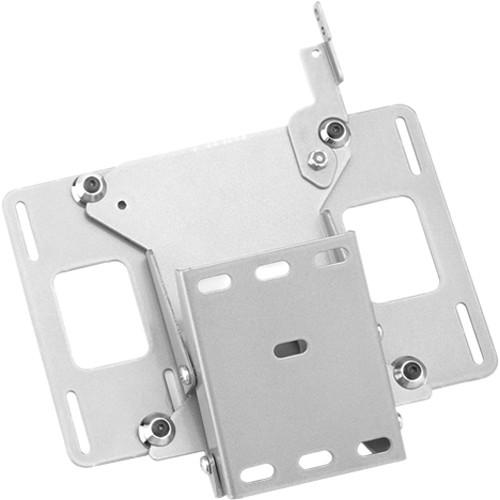

User Manual for Chief FPM-4236 Small Flat Panel Tilt-Adjustable Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief FPM-4236 Small Flat Panel Tilt-Adjustable
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief FPM-4236 Small Flat Panel Tilt-Adjustable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The VESA compliant Chief FPM-4236 provides rigid tilt adjustment (+5°/-18°) to achieve the optimum viewing angle for small flat panel displays. Designed to support most plasma or LCD flat panel displays under 30", the FPM-4236 incorporates Chief's exclusive Q2 Mounting System to provide easy installation, stable mounting, quick release and optional security (with the FSA1000 Lockable Latch). Ideal for digital display or retail signage, displays can be installed in portrait or landscape orientation.To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Easy Mounting - Low profile, display installs in portrait or landscape views.
- VESA 75 x 75mm and 100 x 100mm compliant. Non-VESA compliant interface brackets are available as well.
- Two mounting methods: single wall stud (up to 45 lbs) and drywall mounting (up to 30 lbs).
- Provides 1" (25mm) of vertical or lateral shift.
- Quick, easy and versatile, Chief's exclusive Q2 Mounting System uses self aligning mating components, a steel latching flag and an optional security accessory to help you easily guide, latch and lock your screen to the mount. Due to its universal mounting pattern, Q2 allows you to install the display in either portrait or landscape mode, quickly and easily change out displays, or move a display between mounts.
Conveniences - Includes interface bracket and ships assembled.
- Mounts only 1.5" from the wall. Provides tilt of +5° and -18°.
- Screen tilt can be locked at a certain angle if you want to use it for a touchscreen application.
Proven Quality - UL-listed for proven strength.
- Mount goes through a series of rigorous tests to ensure a safe and secure solution.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
In the Box Chief Pitch-Adjustable Wall Mount Q2 Mounting System for Small Flat Panel Displays - FPM-4236 (Silver Metallic) FPM-4236 Wall Bracket 2 x Wood Screws 4 x Drywall Anchor 2 x Washers, Flat, .25 ID x .56 OD Ten-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FPM-4236 Small Flat Panel Tilt-Adjustable Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief FPM4236 Specs | | | Supported Weight Capacity | Drywall: 30 lb / 13.6 kg
: 45 lb / 20.4 kg | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -18 to +5
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
