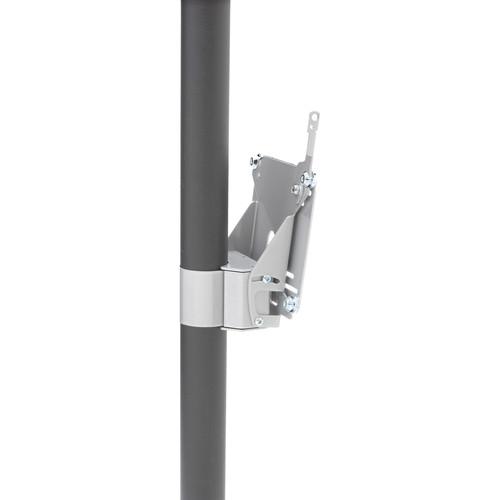

Product description An innovative alternative to wall mounting, the VESA compliant Chief FSP-4200S allows you to attach a small flat panel display to any 1.5" to 2" (38 - 51mm) outer diameter (OD) pole. A wide range of tilt adjustment allows you to achieve the perfect viewing angle. Designed to support LCD flat panel displays under 30", the FSP-4200S incorporates Chief's exclusive Q2 Mounting System to provide easy installation, stable mounting, quick release and optional security (with the FSA1000 Lockable Latch). Ideal for digital display or retail signage, display can be installed in portrait or landscape orientation. Includes pole clamp and interface brackets, and comes with a 10-year warranty. To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Note: Pole not included Easy Installation - VESA 75 x 75mm and 100 x 100mm compliant.
- Non-VESA compliant interface brackets available.
- Universal clamp attaches to any 1.5" to 2" (38 - 51mm) outer diameter pole (pole not included).
- Quick, easy and versatile, exclusive Q2 Mounting System uses self aligning mating components, a steel latching flag and an optional security accessory to help you easily guide, latch and lock your screen to the mount. Due to its universal mounting pattern, Q2 allows you to install the display in either portrait or landscape mode, quickly and easily change out displays, or move a display between mounts.
- Includes pole clamp and interface brackets.
Viewer Friendly - Display installs in portrait/landscape views (pole can be vertical or horizontal).
- Easy tilt (10° up, 25° down) and yaw adjustments (360°) for viewing flexibility.
- Screen tilt can be locked at a certain angle if you want to use it for a touchscreen application.
Proven Quality - UL-listed for proven strength.
- Mount goes through a series of rigorous tests to ensure a safe and secure solution.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
In the Box Chief FSP-4200S Pole Mount for Small Flat Panel Displays (Silver) FSP-4200S Pole-Mounting Bracket 4 x 10-24 x 1.00 Self-Tapping Screws 4 x .5 x .5" Nylon Spacers 5/32" Hex Key Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FSP-4200S Pole Mount for Small Flat Panel Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief FSP4200S Specs Number of Displays | 1 | Mounting-Hole Pattern | Custom | Bracket Load Capacity | 45 lb / 20.41 kg | Swivel Adjustment | 360° | Tilt Adjustment | -25 to 10° | Maximum Extension | None | Depth from Mounting Source | 1.9" / 48.2 mm | Material | Steel | Dimensions (W x H x D) | 6.9 x 5.6 x 3.6" / 175.2 x 142.2 x 91.4 mm | | Package Weight | 4.0 lb | Box Dimensions (LxWxH) | 8.5 x 6.0 x 4.25" |
