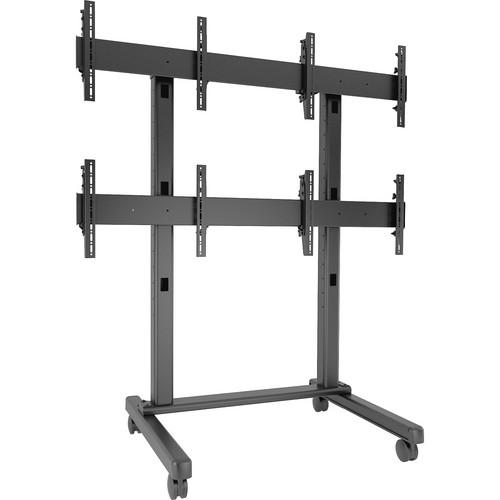

User Manual for Chief FUSION 2 x 2 Micro-Adjustable Large Freestanding Video Wall Cart for 42 to 50" Screens Click to enlarge the picture
Contents of the user manual for the Chief FUSION 2 x 2 Micro-Adjustable
- Product category: Flat Panel Carts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Flat Panel Carts
|
User manual for the Chief FUSION 2 x 2 Micro-Adjustable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The black FUSION 2 x 2 Micro-Adjustable Large Freestanding Video Wall Cart from Chief allows you to construct video walls in prominent locations for temporary applications. The screen array configuration is 2 screens wide by 2 screens high. To confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro. - 2 x 2 screen arrangement for 42 to 50" screens; larger displays possible with FCAX brackets (sold separately)
- Easily align displays with independent height, plumb, and lateral shift adjustment
- Smooth rolling casters for effortless positioning (1 locking caster per leg)
- Integrated cable management for a clean installation
- Available leveling feet (FCA776 - sold separately) for more permanent installations
UPC: 841872155449 In the Box Chief FUSION 2 x 2 Micro-Adjustable Large Freestanding Video Wall Cart for 42 to 50" Screens (Black) Base Cross Bar 2 x Dual Display Rail 2 x Cart Array Column 4 x Quick Connect Base 4 x Left Interface 4 x Right Interface Left Leg Right Leg 4 x Clamp Bracket 2 x Column Cap 2 x End Bracket 4 x Snap Cover Installation Hardware Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION 2 x 2 Micro-Adjustable Large Freestanding Video Wall Cart for 42 to 50" Screens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LVM2X2U Specs | Array Configuration | Screen: 2 screens wide x 2 screens high | | Center of Display to Floor/Table Range | Minimum Bottom Row to Maximum Top Row: 24.0 to 72.0" (609.6 to 1829.0 mm) | | Manual Height Adjustment | Micro-adjustment up to 0.75" (19.00 mm) per screen | | Mounting Pattern Compatibility | Any width x 100 to 400 mm | | Orientation | Landscape | | Plumb Adjustment | Micro-adjustment up to 0.75" (19.00 mm) | | Solution Type | Universal | | Typical Screen Sizes | 42.00 to 50.00" (106.68 to 127.00 cm), larger displays possible with FCAX brackets | | Overall Dimensions (H x W x D) | 80.5 x 72.5 x 40.4" (2,045.0 x 1,842.0 x 1,026.0 mm) | | Weight Capacity | 125.0 lb (56.7 kg) per screen | | | | Package Weight | 219.0 lb | | Box Dimensions (LxWxH) | 75.0 x 39.0 x 9.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
