User Manual for Chief FUSION 3 x 2 Portrait Micro-Adjustable Large Bolt-Down Freestanding Video Wall Click to enlarge the picture
Contents of the user manual for the Chief FUSION 3 x 2 Portrait
- Product category: Monitor Floor Stands Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Floor Stands
 |
User manual for the Chief FUSION 3 x 2 Portrait contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

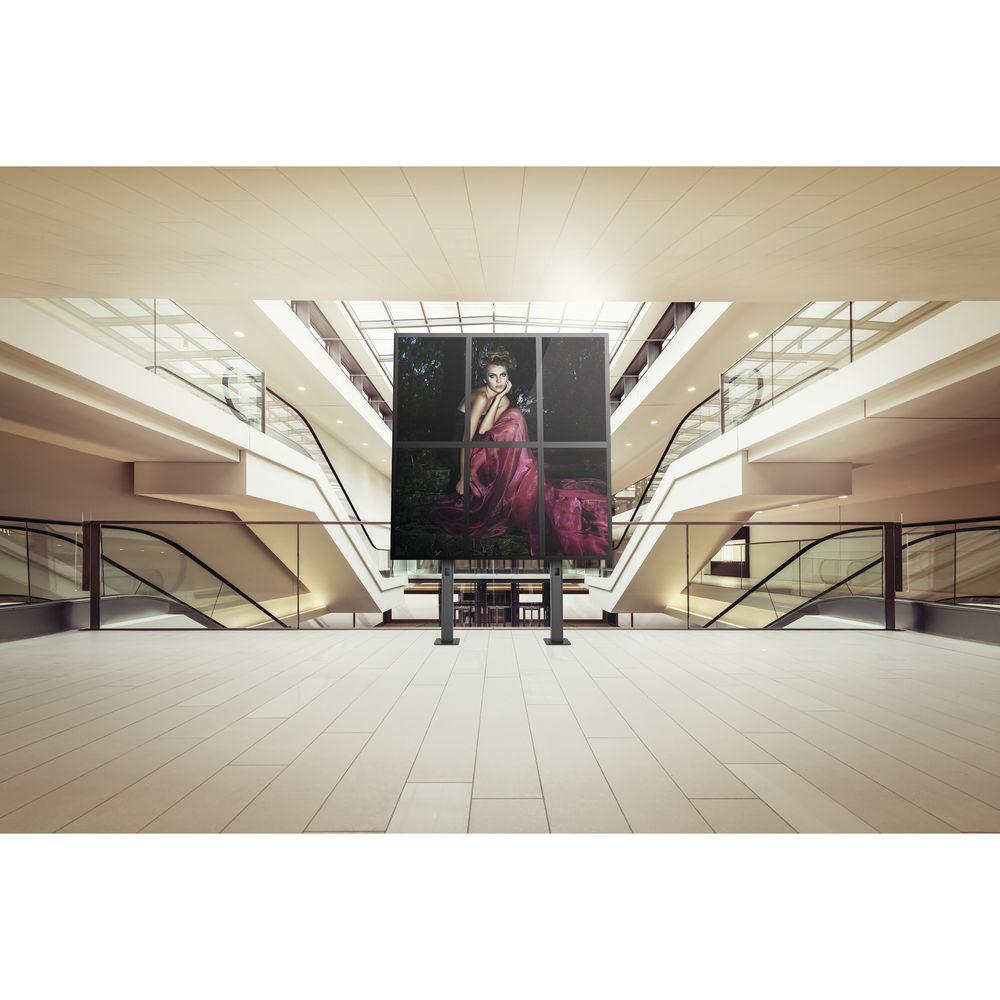

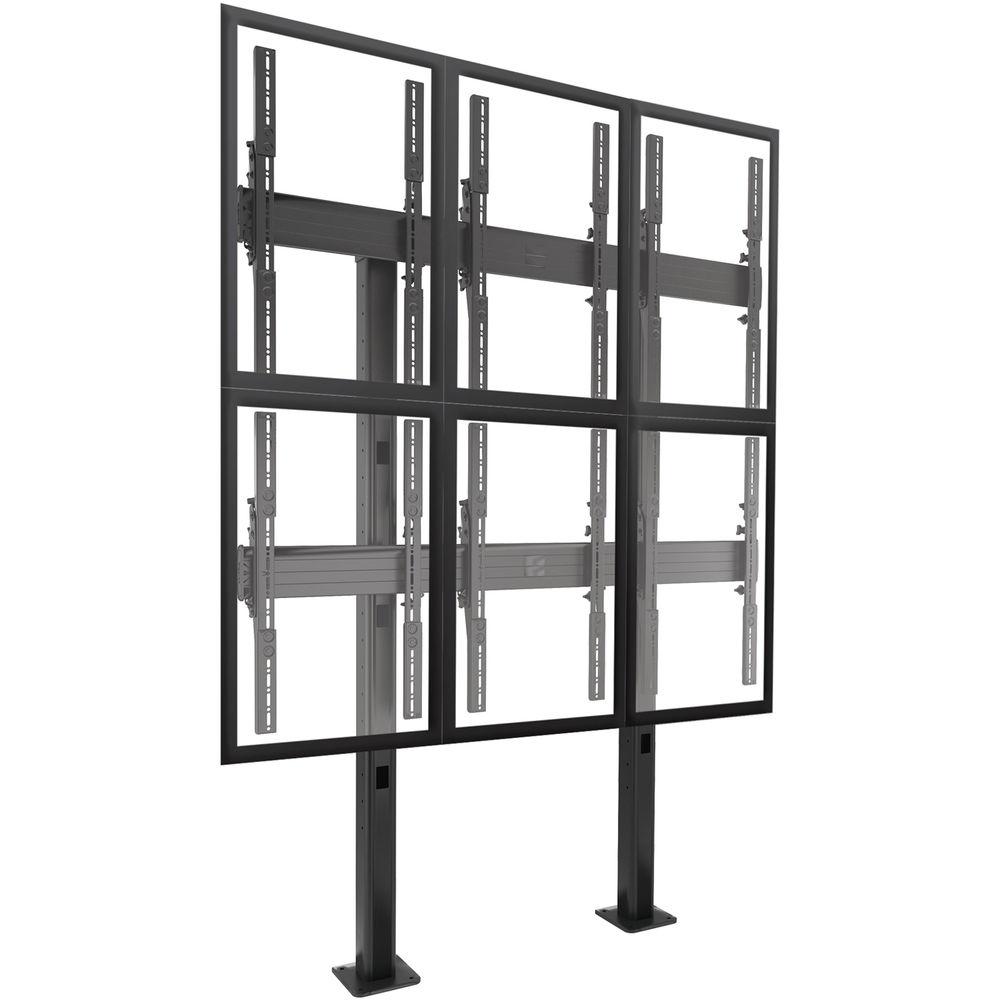

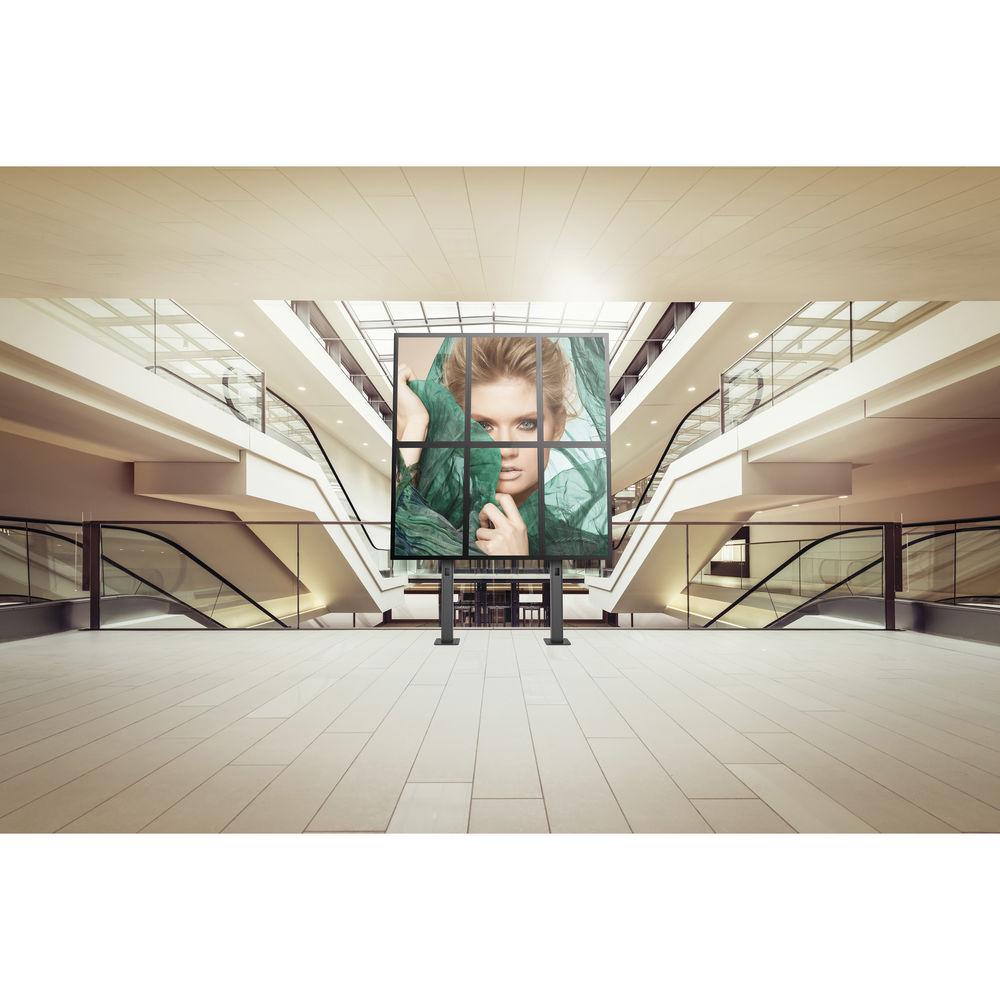

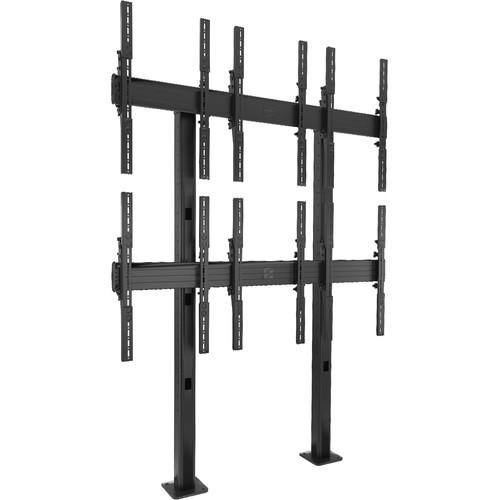

Product description The black FUSION 3 x 2 Portrait Micro-Adjustable Large Bolt-Down Freestanding Video Wall from Chief allows you to mount up to 6 displays in a 3 x 2 configuration. It enables you to construct video walls in prominent locations for permanent applications. - 3 x 2 portrait screen arrangement for 42 to 46" screens. Larger displays possible with FCAX brackets 1
Please Note: Use MountFinder to confirm compatibility. close - Allows you to easily align displays with independent height, plumb, and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
UPC: 841872157719 In the Box Chief FUSION 3 x 2 Portrait Micro-Adjustable Large Bolt-Down Freestanding Video Wall (Black) Installation Hardware Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION 3 x 2 Portrait Micro-Adjustable Large Bolt-Down Freestanding Video Wall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LBM3X2UP Specs | Compatibility | To confirm the compatibility of this table stand with your monitor, visit Chief's | | Center of Display to Floor/Table Range | 17.38" (441.00 mm) (minimum bottom row) to 82.38" (2,092.00 mm) (maximum top row) | | Manual Height Adjustment | Micro-adjustment up to 0.75" (19.00 mm) per screen | | Mounting Pattern Compatibility (Universal Version) | Any width x 100 to 400 mm | | Orientation | Portrait | | Plumb Adjustment | Micro-adjustment up to 0.75" (19.00 mm) | | Solution Type | Universal | | Typical Screen Sizes | 42 to 46" (107 to 117 cm) (Larger displays possible with FCAX brackets) | | Overall Dimensions (H x W x D) | 98.60 x 68.00 x 9.61" (2,504.00 x 1,727.00 x 244.00 mm) | | Weight Capacity | 100.0 lb (45.4 kg) per screen | | | | Package Weight | 210.0 lb | | Box Dimensions (LxWxH) | 75.0 x 42.0 x 14.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
