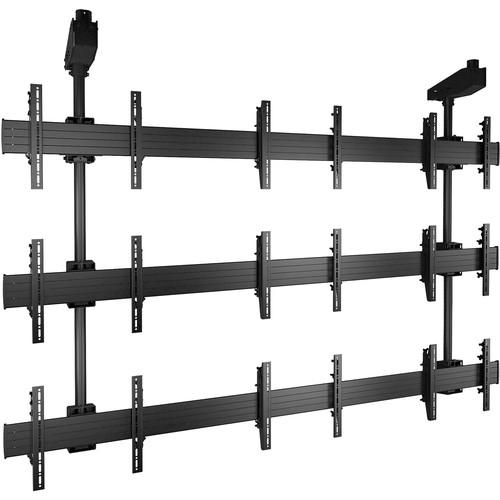

Product description The black FUSION 3 x 3 Micro-Adjustable Large Ceiling-Mounted Video Wall from Chief allows you to mount up to 9 displays in a 3 x 3 configuration. It enables you to construct video walls in prominent locations for permanent applications. This mount is well suited for digital signage installations. Note: For installation, ceiling plates and extension columns are required and must be ordered separately. - Precise Screen Alignment: Easily align displays with independent knobs for height and plumb adjustments with no tools required
- Controlzone Leveling: Micro-height and leveling adjustment at all column intersection points
- Infinite Screen Positioning: Infinite vertical and lateral adjustments provide tight display rows and columns
- Heavy-Duty Construction: Solid construction supports displays up to 55" and 85 lb (38.5kg) per screen
- Configurable: Add side-by-side configurations to create any video wall arrangements up to 3 screens in height
UPC: 841872155005 In the Box Chief FUSION 3 x 3 Micro-Adjustable Large Ceiling-Mounted Video Wall (Black) Installation Hardware 9 x Interface Bracket-Right 9 x Interface Bracket-Left 2 x Array Offset 6 x End Cap 2 x Mounting Rail 6 x Array Head 6 x Back Cover 12 x T-Slot Nut 12 x Friction Washer 2 x 72" Array Column CPA261 Adapter Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION 3 x 3 Micro-Adjustable Large Ceiling-Mounted Video Wall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCM3X3U Specs | Compatibility | To confirm the compatibility of this table stand with your monitor, visit Chief's | | Adjustments | Micro-adjustments of 2" at structural intersection points | | Manual Height Adjustment | 1.0" (25.4 mm) increments at structural intersections
Maximum screen height is 27" (686 mm) | | Mounting Pattern Compatibility (Universal Version) | Any width x 100 to 400 mm | | Orientation | Landscape | | Plumb Adjustment | Micro-adjustment up to 0.75" (19.00 mm) | | Typical Screen Sizes | 42 to 46" (107 to 117 cm) | | Weight Capacity | 85.0 lb (38.5 kg) | | | | Package Weight | 235.0 lb | | Box Dimensions (LxWxH) | 112.0 x 23.5 x 14.0" |
