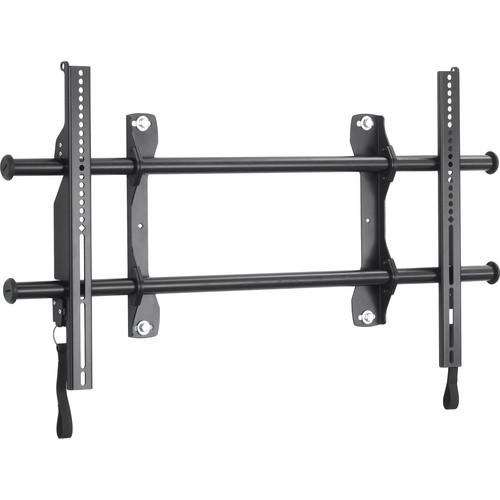

User Manual for Chief Fusion Flat Panel Fixed Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief Fusion Flat Panel Fixed Wall
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief Fusion Flat Panel Fixed Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief Fusion Flat Panel Fixed Wall Mount is an affordable solution for wall-mounting TVs measuring 37-63 inches with weights up to 200 lbs. The mount sits just 1.96" from the wall and mounts on studs with 16, 20 or 24" spacing. Centerless Shift provides post-installation, lateral shift for fine-tuning. Other features include ClickConnect mounting confirmation, built-in cable stand and integrated security, which accepts a padlock. This mount ships with a custom hardware kit. Please check compatibility with this LSA Fusion mount on the manufacturer's website. (http://www.chiefmfg.com) - Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options, including 16", 20" and 24" (40.64/50.8/61 cm) centers
- Great solution for quickly installing multiple screens
- Provides integrated security, just add a padlock
- Ships with a custom hardware kit
In the Box Chief Fusion Flat Panel Fixed Wall Mount (Black) LSAU Universal Mount Installation Hardware LSA5241 Custom Hardware Kit Allen Wrench Installation Guide Security Bracket 10 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Fusion Flat Panel Fixed Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LSA5241 Specs | | | Supported Screen Sizes | Up to 63" / 160.0 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Number of Displays Supported | 1 | | | | Lateral Shift | 17.5" / 44.5 cm | | Orientation | Landscape | | | | Construction Material | Aluminum, Steel | | Distance from Mounting Surface | 2.0" / 5.1 cm | | Dimensions | 13.2 x 34.4 x 2" / 33.5 x 87.5 x 5.1 cm |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
