User Manual for Chief FUSION Large 3 x 1 Ceiling-Mountable Menu Board Mount for 40 to 55" Displays Click to enlarge the picture
Contents of the user manual for the Chief FUSION Large 3 x 1
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
|
User manual for the Chief FUSION Large 3 x 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

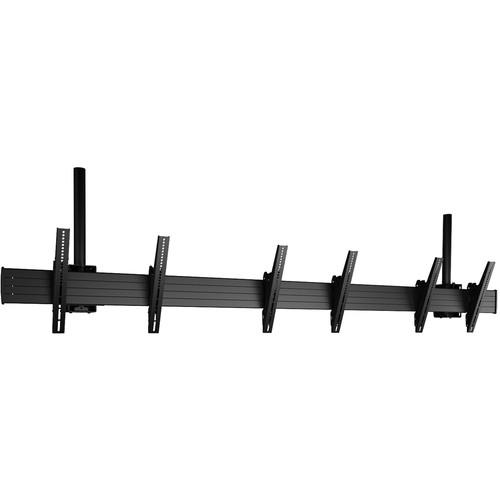

Product description The black FUSION Large 3 x 1 Ceiling-Mountable Menu Board Mount from Chief allows you to construct menu boards using displays in prominent locations where walls aren't available. You can combine more than one of this mount to easily create longer menu boards. This mount is well suited for digital signage installations. Note: For installation, a ceiling plate and an extension column are required and must be ordered separately.
For compatibility of ceiling plates and extension columns, please visit the Chief website. - ControlZone Leveling: Micro-height and leveling adjustment at all column intersection points
- Single horizontal extrusion keeps screens aligned
- Tilting interfaces with Centris technology allow for +5 / -20° adjustment
- Tool-free screen installation
- Secure displays with optional pad-lock security
- Fits up to three 40 to 55" displays (diagonal screen sizes); FCAX extension brackets can be added for larger screen sizes up to 65"
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
UPC: 841872158785 In the Box Chief FUSION Large 3 x 1 Ceiling-Mountable Menu Board Mount for 40 to 55" Displays (Black) 6 x Interface Bracket 2 x Lower Set Screw Bracket Mounting Rail 2 x Back Cover 2 x Array Head 4 x T-Slot Stud 2 x End Cap Installation Hardware Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION Large 3 x 1 Ceiling-Mountable Menu Board Mount for 40 to 55" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCM3X1U Specs | Compatibility | To confirm the compatibility of this table stand with your monitor, visit Chief's | | Adjustments | 2" micro adjustment at structural intersection points | | Mounting Pattern Compatibility (Universal Version) | Any width x 100 to 400 mm | | Solution Type | Universal | | Tilt | - 5°, 20° Landscape | | Typical Screen Sizes | 40 to 55" (102 to 140 cm)
Up to 65" (165.1 cm) with FCAX extension brackets (sold separately) | | Weight Capacity | 125.0 lb (56.7 kg) per display | | | | Package Weight | 62.0 lb | | Box Dimensions (LxWxH) | 109.5 x 13.0 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
