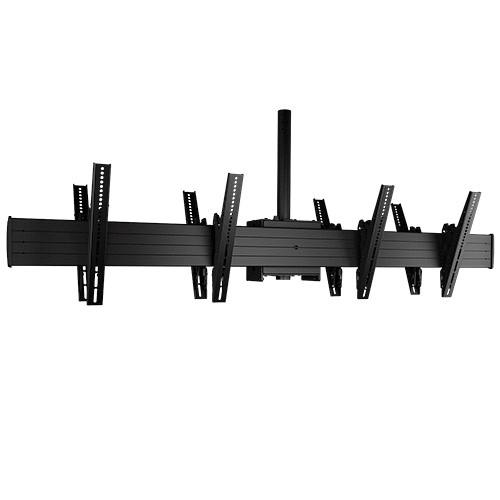

User Manual for Chief FUSION LCB2X1U Large Back to Back Ceiling Mountable 2 x 1 Menu Board Mount for 40 to 55" Displays Click to enlarge the picture
Contents of the user manual for the Chief FUSION LCB2X1U Large Back to
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
|
User manual for the Chief FUSION LCB2X1U Large Back to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The black FUSION LCB2X1U Large Back to Back Ceiling Mountable 2 x 1 Menu Board Mount from Chief makes construction of menu boards possible using four 40 to 55” displays in prominent locations where walls aren't available. Combine several menu board mount units to easily create longer menu boards. This ceiling-mounted menu board is suitable for digital signage installations.
This menu board mount includes a ceiling mount assembly, 8 interface brackets, and all the necessary mounting hardware. The interface brackets allow -5° to 20° tilt and can be locked at 0°, 10°, and 20° tilt.
This menu board mount is intended to be used with the CPA330, CPA365, and CPA395 UL-listed CPA Ceiling Plates (sold separately) and FCAX08, FCAX14, and FCAX20 UL-listed Extension Brackets (sold separately). The CMA330, CMA345, and CMA395 Ceiling Plates without swaged collars may also be used.
You can add a padlock (sold separately) to each interface bracket to lock the display to the ceiling mount. Note: Ceiling plate and extension column are required and must be purchased separately - Screen Array Configuration: screen width x screen height
- Single drop for fast installation
- Micro-adjustable roll of ±3° for perfect leveling
- 360° swivel for optimal viewing angles
- Single horizontal extrusion keeps screens aligned
- Interface brackets with Centris technology allow for easy tilt adjustment from -5 to 20°
- Allows for tool-free installation of displays
- Secures displays with optional padlock security
- Fits four 40 to 55" screens
- An FCAX series extension bracket can be added for larger screens up to 65"
- Compatible with traditional 1.5" NPT and new CPA-pinned ceiling plates and column systems (sold separately)
UPC: 841872158952 In the Box Chief FUSION LCB2X1U Large Back to Back Ceiling Mountable 2 x 1 Menu Board Mount for 40 to 55" Displays (Black) Ceiling Mount Assembly 8 x Interface Bracket Installation Hardware Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION LCB2X1U Large Back to Back Ceiling Mountable 2 x 1 Menu Board Mount for 40 to 55" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCB2X1U Specs | Compatible with |
To confirm the compatibility of this mount with your display, visit Chief's Please refer to the MountFinder tab on the right side of the webpage. | | Used with | CPA330, CPA365, and CPA395 CPA Ceiling Plates
FCAX08, FCAX14, and FCAX20 Extension Brackets
CMA330, CMA345, and CMA395 Ceiling Plates without Swaged Collars | | Mounting Pattern Compatibility (Universal Version) | Any width x 100 to 400 mm | | Post-Installation Leveling (Roll) | ±3° | | Solution Type | Universal | | Tilt | -5°, +20° | | Typical Screen Sizes | 40.0 to 55.0" (101.6 to 139.7 cm)
Can mount screens up to 65" with an FCAX series extension bracket (sold separately) | | Weight Capacity | Maximum Weight Allowed for Each Display: 100.00 lb (45.35 kg)
Maximum Weight Capacity of Mounting System: 400.0 lb (181.4 kg) | | | | Box Dimensions (LxWxH) | 82.5 x 12.5 x 12.0" |
