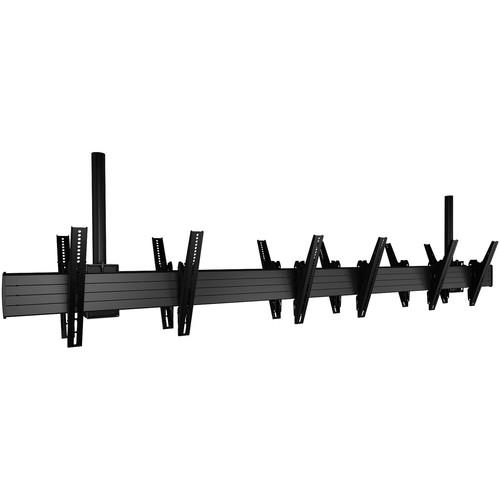

Product description The black FUSION LCB3X1U Large Back to Back Ceiling Mountable 3 x 1 Menu Board Mount from Chief makes construction of menu boards possible using six 40 to 55” displays in prominent locations where walls aren't available. Combine several menu board mount units to easily create longer menu boards. This ceiling-mounted menu board is suitable for digital signage installations. This menu board mount includes a ceiling mount assembly, 8 interface brackets, and all the necessary mounting hardware. The interface brackets allow -5° to 20° tilt and can be locked at 0°, 10°, and 20° tilt. You can add a padlock (sold separately) to each interface bracket to lock the display to the ceiling mount. Note: Ceiling plate and extension column are required and must be purchased separately. - Attaches to 40 to 55" screens and larger screens up to 65" with FCAX extension brackets (sold separately)
- Centris tilt mechanism allow screens to stay put where you place them for effortless multi-screen alignment, with locking points at 0, 10, and 20 degrees
- Infinite lateral shift for tight screen positioning
- ControlZone micro-leveling and height adjustments up to 2" (51 mm)
- Tool-free screen engagement to secure displays with optional padlock security
- Compatible with traditional 1.5" NPT and Chief pin-connection CPA ceiling plates and columns
- Single horizontal extrusion keeps screens aligned
- Tool-free screen engagement
- Security: Add a pad lock to secure screen to mount 1
Please Note: Sold separately. close UPC: 841872158990 In the Box Chief FUSION LCB3X1U Large Back to Back Ceiling Mountable 3 x 1 Menu Board Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION LCB3X1U Large Back to Back Ceiling Mountable 3 x 1 Menu Board Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCB3X1U Specs | Compatibility |
To confirm the compatibility of this mount with your projector, visit Chief's | | Mounting Pattern | Any width x 100 to 400 mm | | Solution Type | Universal | | Tilt | -5° , +20° | | Typical Screen Sizes | 40 to 50" (1016 to 1270 mm)
up to 65" (1651 mm) with FCAX extension brackets Brackets are sold separately. | | Weight Capacity | 125.0 lb (56.7 kg) per display | | Dimensions | 109.5 x 13.0 x 12.0" (2781.3 x 330.2 x 304.8 mm) | | Weight | 92.00 lb (41.73 kg) |
