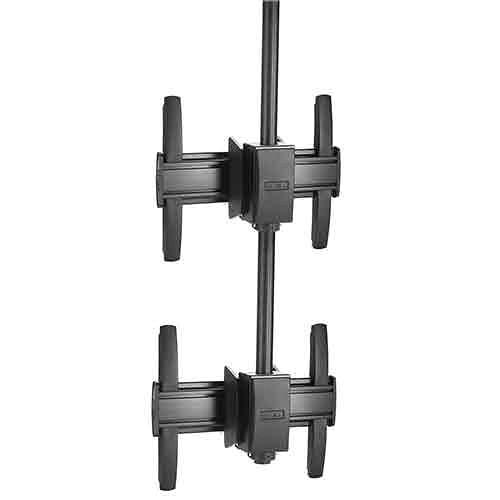

User Manual for Chief FUSION LCM1X2U Large Ceiling-Mounted 1 x 2 Stacker Kit Click to enlarge the picture
Contents of the user manual for the Chief FUSION LCM1X2U Large Ceiling-Mounted 1
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
|
User manual for the Chief FUSION LCM1X2U Large Ceiling-Mounted 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The black FUSION LCM1X2U Large Ceiling-Mounted 1 x 2 Stacker Kit from Chief includes two LCM1U Large Flat Panel Ceiling Mounts and a CPA048P 48" Pre-Drilled Pin Connection Column. The stacker kit allows you to install multiple displays vertically and is suitable for digital signage installations.
The FUSION LCM1U Flat Panel Ceiling Mounts are easy to install and offer precise TV positioning and flexible adjustments for large flat panel screens. These mounts are compatible with traditional 1.5" NPT and CPA pinned ceiling plates and extension column systems (sold separately).
The CPA048P 48" Pre-Drilled Pin-Connection Column comes with pre-drilled holes throughout the length in 1" increments. Having the holes pre-drilled helps save time during installation. Note: For connecting to longer drop length 1.5" NPT extension columns, CPA264 NPT Female to CPA Female Coupling (sold separately) is required.
For connecting to longer drop length pin connection columns, CPA263 CPA Connector Coupling (sold separately) is required. - LCM1U FUSION Large Flat Panel Ceiling Mount (Black) The black Chief LCM1U FUSION Large Flat Panel Ceiling Mount can hold a display weighing up to 125 lb with a mounting pattern between 200 x 100 and 616 x 400mm. It is suitable for digital signage installations and is compatible with traditional 1.5" NPT- and CPA-pinned ceiling plates and column systems. Note: A compatible ceiling plate and extension column are required and sold separately.
- Repeatability
- Continuous tilt ranges with four set locking points to eliminate guesswork when adjusting multiple screens
- Accessibility
- On/off connection designed for ease of installation and service
- Centris Fingertip Tilt
- Adjust display using Centris fingertip tilt technology
- Simple and Secure
- Tool-free screen engagement with optional padlock security (padlock to be purchased separately)
- Flexibility
- Mount swivels to your preferred viewing angle
- Select Compatibility
- Compatible with traditional 1.5" NPT- and CPA-pinned ceiling plates and column systems
UPC: 841872156170 - 48" Pre-Drilled Pin Connection Column for LCM Series Ceiling Mounts (Black) The black 48" Pre-Drilled Pin Connection Column from Chief has pre-drilled holes throughout its length in 1" increments and is compatible with the LCM Series Ceiling Mounts. The pre-drilled holes help save time during installation.
- Compatible with Chief's LCM Series Ceiling Mounts
UPC: 841872158792 In the Box Bundle Items 2 x LCM1U FUSION Large Flat Panel Ceiling Mount (Black) dsvqzyxqacxawyuraraudcxxuxuarwzbasyd 48" Pre-Drilled Pin Connection Column for LCM Series Ceiling Mounts (Black) - Limited 10-Year Warranty on Parts & Labor
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION LCM1X2U Large Ceiling-Mounted 1 x 2 Stacker Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LCM1U FUSION Large Flat Panel Ceiling Mount (Black)
| Mounting Pattern Compatibility | 200 x 100 to 616 x 400 mm | | Weight Capacity | 125 lb (56.7 kg) | | Adjustments | Tilt: -20 to 5°
Roll: ±3° | | Orientation | Landscape | | Certifications | UL listed | | Dimensions (W x H x D) | 26.8 x 16 x 6.4" (681 x 404 x 162 mm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 28.9 x 13.9 x 6.9" | - 48" Pre-Drilled Pin Connection Column for LCM Series Ceiling Mounts (Black)
| Compatible With | Chief's LCM Series Ceiling Mounts | | Certifications | UL | | Weight Capacity | 500.00 lb (226.79 kg) | | Length | 48.00" (121.92 cm) | | | | Box Dimensions (LxWxH) | 50.0 x 2.0 x 2.0" |
