User Manual for Chief Fusion LTM1U-G Micro-Adjustable Tilt Wall Mount for 37 to 63" Displays Click to enlarge the picture
Contents of the user manual for the Chief Fusion LTM1U-G Micro-Adjustable Tilt Wall
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
 |
User manual for the Chief Fusion LTM1U-G Micro-Adjustable Tilt Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

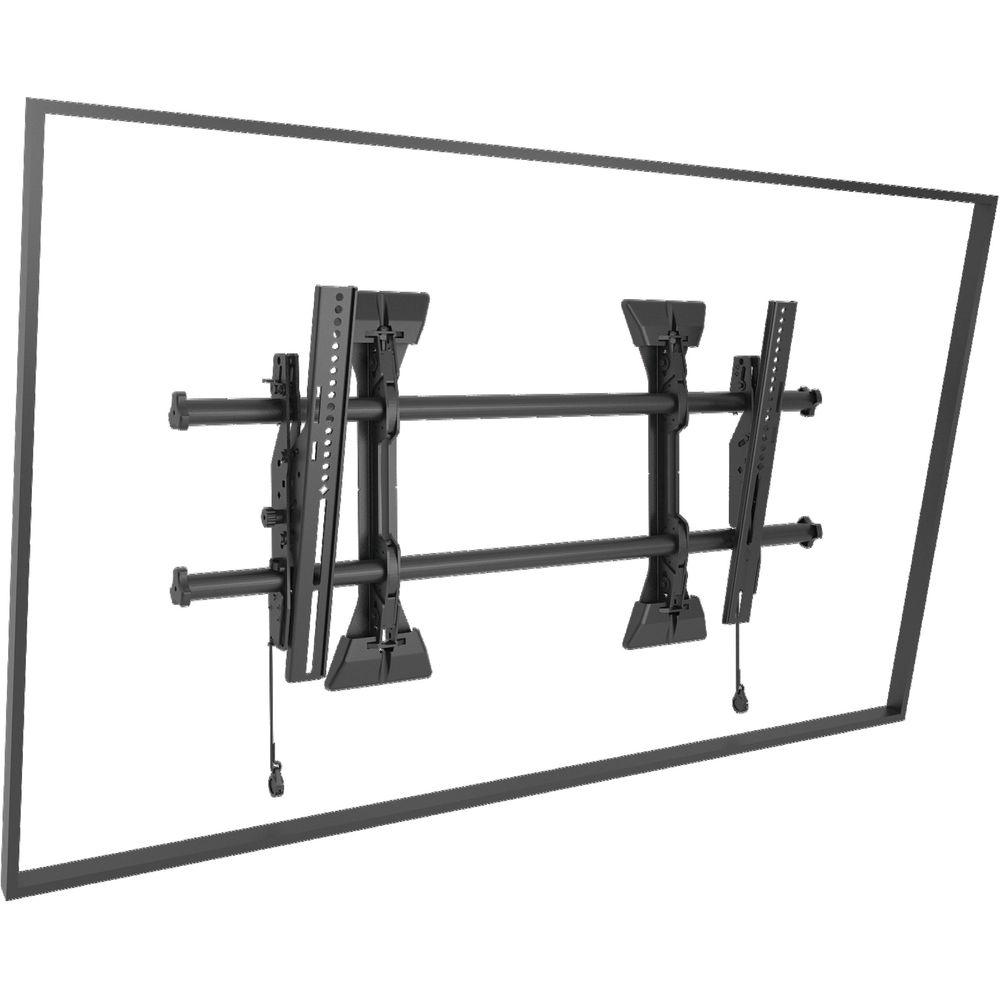

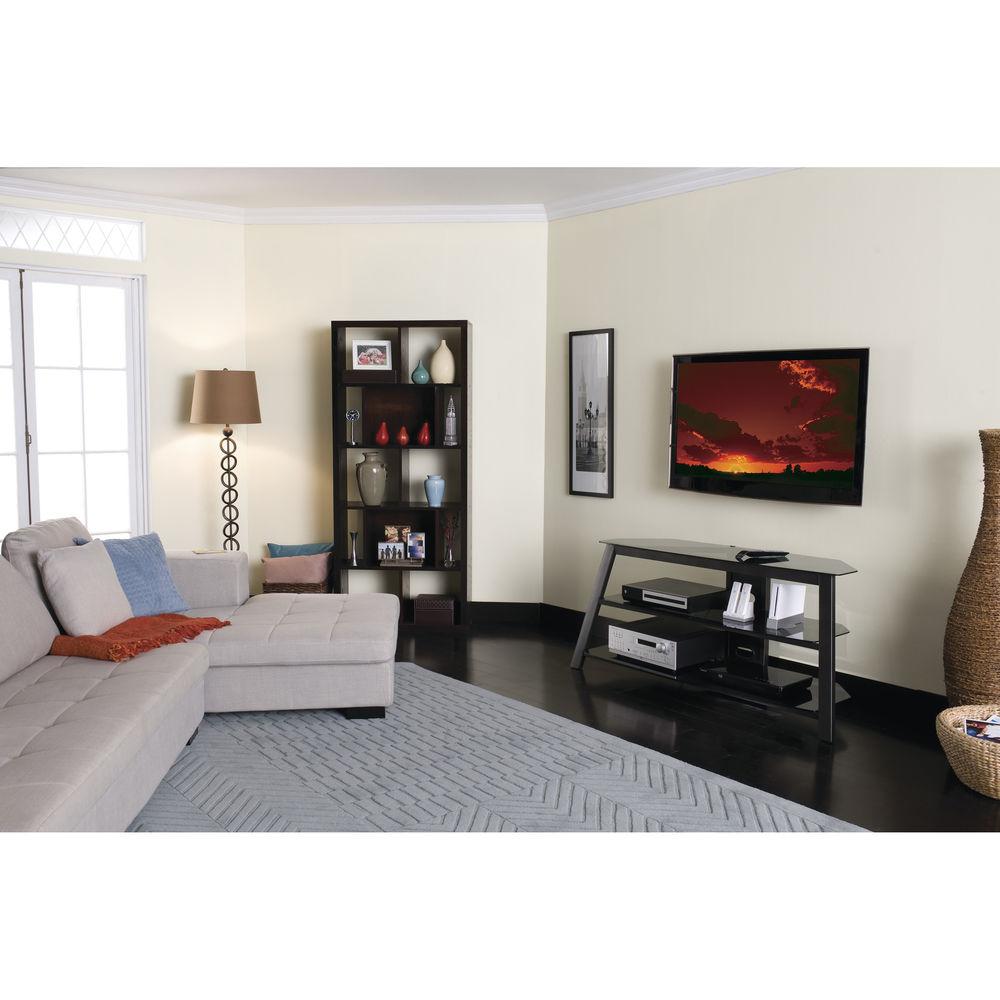

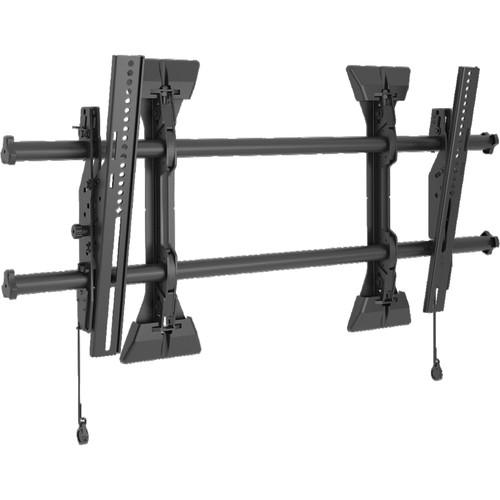

Product description Mount your 37 to 63" display to the wall with the Chief Fusion LTM1U-G Micro-Adjustable Tilt Wall Mount. It supports displays up to 200 lb with 100 x 100 to 870 x 400mm mounting patterns. The mount offers -12 to 2° of tilt and up to 17.4" of post-installation lateral shift for enhanced versatility. The LTM1U-G is TAA-compliant to meet the needs of U.S. government projects. - Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine-tuning of height and leveling
- Centerless Shift provides up to 17.5" of post-installation lateral shift — 8.75" left/right of uprights — for virtually limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws are designed to keep the mount stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- Multiple installation options for various stud distances
- Nesting spacers can be stacked to achieve nearly any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated security features
- Includes a custom hardware kit that can be hung from mount rails if installing in stages
- Accessories can be installed with the mount, and the entire unit can be adjusted together
UPC: 841872165523 In the Box Chief Fusion LTM1U-G Micro-Adjustable Tilt Wall Mount for 37 to 63" Displays Assembly Hardware Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Fusion LTM1U-G Micro-Adjustable Tilt Wall Mount for 37 to 63" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LTM1U-G Specs | | | Supported Screen Sizes | 37 to 63" / 94.0 to 160.0 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Mounting-Hole Pattern | 100 x 100 to 870 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -12 to +2
