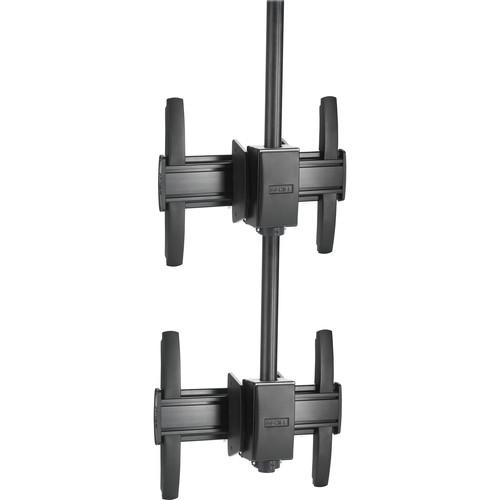

Product description The black FUSION Medium Ceiling Mountable 1 x 2 Stacking Kit from Chief allows you to install multiple displays vertically and is suitable for digital signage installations. This stacking kit includes a FUSION Medium Ceiling Mount for Flat Panel Displays and a 48” Pre-Drilled Pin Connection Column.The Fusion Ceiling Mount offers optimum TV positioning and flexible adjustments for medium flat panel screens. It is compatible with traditional 1.5” NPT as well as CPA-pinned ceiling plates and column systems.The pre-drilled pin connection column is 4’ in length and features pre-drilled holes throughout the length of the column in 1” increments. This helps save time during installation. This column is compatible with LCM series ceiling mounts. - MCM1U FUSION Medium Flat Panel Ceiling Mount (Black) Mount your display to the ceiling with the black Chief MCM1U FUSION Medium Flat Panel Ceiling Mount. It will attach to a traditional 1.5" NPT and select CPA pinned ceiling plate and column systems and supports displays weighing up to 125 lb, with 200 x 100 to 460 x 400mm mounting patterns. It provides -20 to 5° of tilt and ±3° of roll adjustment.
- Repeatability
- Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens
- Accessibility
- Simple on/off connection for ease of installation and service
- Centris Fingertip Tilt
- Adjust display using Centris fingertip tilt technology
- Flexibility
- Mount swivels to your preferred viewing angle
- Simple & Secure
- Tool-free screen engagement with optional padlock security
- Portrait/Landscape Capability
- Your display can be mounted in either portrait or landscape mode, and the mount is compatible with any mounting pattern from 200 x 100 to 460 x 400mm
UPC: 841872156194 - 48" Pre-Drilled Pin Connection Column for LCM Series Ceiling Mounts (Black) The black 48" Pre-Drilled Pin Connection Column from Chief has pre-drilled holes throughout its length in 1" increments and is compatible with the LCM Series Ceiling Mounts. The pre-drilled holes help save time during installation.
- Compatible with Chief's LCM Series Ceiling Mounts
UPC: 841872158792 In the Box Bundle Items MCM1U FUSION Medium Flat Panel Ceiling Mount (Black) duqfyxeszuzvdweczbtaxrszysyszrxrxeycyx 48" Pre-Drilled Pin Connection Column for LCM Series Ceiling Mounts (Black) duqfyxeszuzvdweczbtaxrszysyszrxrxeycyx - Limited 10-Year Warranty on Parts & Labor
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION Medium Ceiling Mountable 1 x 2 Stacking Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MCM1U FUSION Medium Flat Panel Ceiling Mount (Black)
| Compatible With | Traditional 1.5" (3.8 cm) NPT and select CPA pinned ceiling plates and column systems | | Weight Capacity | 125 lb (56.69 kg) | | Mounting Pattern Compatibility | 200 x 100 mm to 460 x 400 mm | | Adjustments | Tilt: -20 to 5°
Roll, ±3° | | Orientation | Landscape and portrait | | Dimensions (W x H x D) | 20.82 x 16 x 6.37" (528 x 404 x 162 mm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 24.0 x 14.0 x 7.0" | - 48" Pre-Drilled Pin Connection Column for LCM Series Ceiling Mounts (Black)
| Compatible With | Chief's LCM Series Ceiling Mounts | | Certifications | UL | | Weight Capacity | 500.00 lb (226.79 kg) | | Length | 48.00" (121.92 cm) | | | | Box Dimensions (LxWxH) | 50.0 x 2.0 x 2.0" |
