User Manual for Chief FUSION Micro-Adjustable Large Ceiling Mounted Video Wall Solution Click to enlarge the picture
Contents of the user manual for the Chief FUSION Micro-Adjustable Large Ceiling Mounted
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
|
User manual for the Chief FUSION Micro-Adjustable Large Ceiling Mounted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

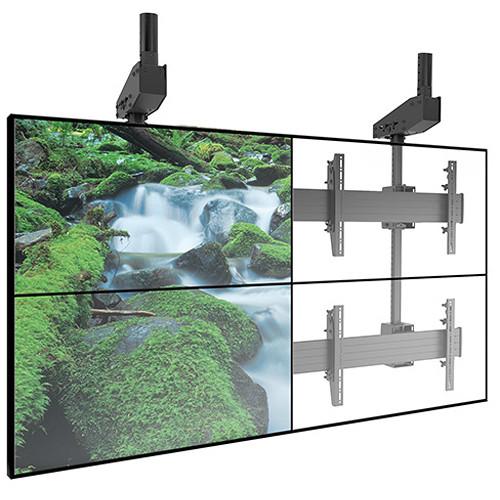

Product description The black FUSION Micro-Adjustable Large Ceiling Mounted Video Wall Solution (2 x 2) from Chief makes it possible to construct video walls in prominent locations where walls aren't available. It is suitable for digital signage installations. - Precise Screen Alignment
- Allows easy alignment of displays with independent knobs for height and plumb adjustments, requiring no tools
- Controlzone Leveling
- Allows micro-height and leveling adjustment at all column intersection points
- Infinite Screen Positioning
- Infinite vertical and lateral adjustments provide tight display rows and columns
- Heavy-Duty Construction
- The solid construction supports displays up to 55.00" (139.70mm) and 125 lb (56.7kg) per screen
- Configurable
- Add configurations side by side to create any video wall arrangements up to 3 screens tall
- Miscellaneous Features
- Landscape orientation, UL listed
UPC: 841872155012 In the Box Chief FUSION Micro-Adjustable Large Ceiling Mounted Video Wall Solution (2 x 2 / Black) Mounting Hardware Interface Bracket (Right) Interface Bracket (Left) Array Offset Array Head with Back Cover End Cap 2 x Mounting Rail 2 x 48.0" (121.9cm) Array Column Adapter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION Micro-Adjustable Large Ceiling Mounted Video Wall Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCM2X2U Specs | Adjustments | Micro-adjustments of 2.00" (50.80 mm) at structural intersection points | | Manual Height Adjustment | 1.0" (25.4 mm) increments at structural intersections | | Mounting Pattern Compatibility | Any width x 3.93 to 15.74" (100.00 to 400.00 mm) | | Plumb Adjustment | Micro-adjustment up to 0.75" (19.00 mm) | | Solution Type | Universal | | Typical Screen Sizes | 42 to 50" (102 to 127 cm) | | Height | Arm: 5.38" (13.66 cm) | | Overall Dimensions (WxHxD) | 72.83 x 43.28 x 14.50" (185.00 x 138.70 x 36.83 cm) | | Weight Capacity | Each Display: 125.0 lb (56.7 kg)
Total: 500.0 lb (226.8 kg) | | | | Package Weight | 152.0 lb | | Box Dimensions (LxWxH) | 76.0 x 18.5 x 16.0" |
