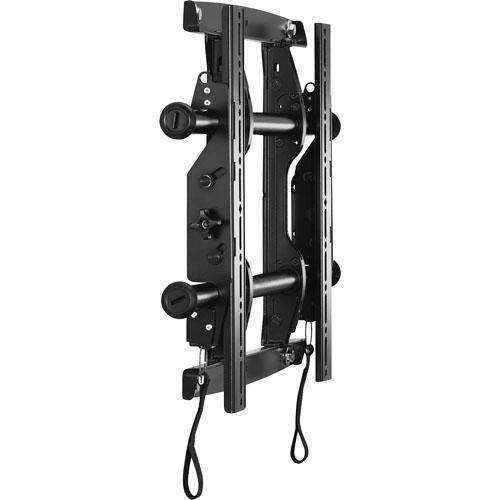

Product description The Chief Fusion Micro-Adjustable Tilt Wall Mount is an affordable solution for wall-mounting TVs measuring 26-47 inches with weights up to 75 lbs. The mount sits just 1.99" from the wall and mounts on single studs or 16" centers. Centris low-profile adjustment allows 0-12° tilting to assure the perfect viewing angle. Centerless Shift provides post-installation, lateral shift for fine-tuning. Other features include ClickConnect mounting confirmation, built-in cable stand and integrated security, which accepts a padlock. This mount ships with a custom hardware kit. Please check compatibility with this MTM Fusion mount on the manufacturer's website. (http://www.chiefmfg.com) - ControlZone Leveling for post-installation fine tuning of height and leveling

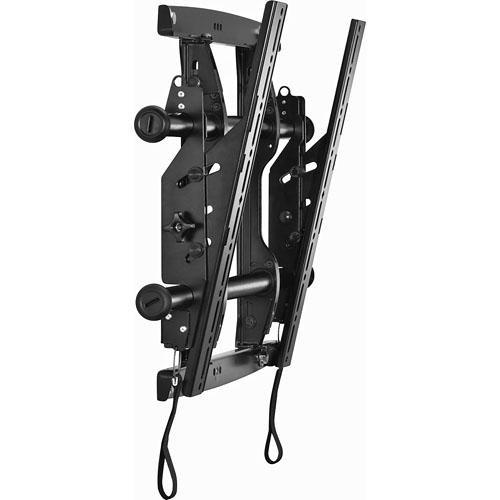

- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

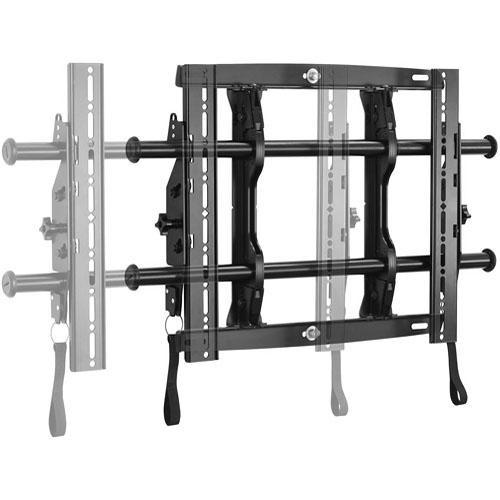

- Centerless Shift provides up to 14.5" (368 mm) of post-installation lateral shift - 7.25" (184 mm) left/right of uprights for limitless centering
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Provides integrated security, just add a padlock
- Ships with a custom hardware kit
In the Box Chief Fusion Micro-Adjustable Tilt Wall Mount MTM Universal Mount Installation Hardware MTM3044 Custom Hardware Kit 2 x Allen Wrench Installation Guide Security Bracket 10 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Fusion Micro-Adjustable Tilt Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief MTM3044 Specs | | | Supported Screen Sizes | Up to 47" / 119.4 cm | | Supported Weight Capacity | : 75 lb / 34 kg
: 125 lb / 56.7 kg | | Number of Displays Supported | 1 | | | | Lateral Shift | 14.5" / 36.8 cm | | Vertical Adjustment | -0.5 to 0.5" / -1.3 to 1.3 cm | | Orientation | Landscape | | | | Construction Material | Aluminum, Steel | | Distance from Mounting Surface | 2.0" / 5.1 cm | | Dimensions | 16.53 x 25.44 x 1.99" / 420 x 646 x 51 mm | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 28.5 x 18.5 x 4.0" |
