User Manual for Chief FUSION Portrait Micro-Adjustable Ceiling Mount for Video Wall Solutions Click to enlarge the picture
Contents of the user manual for the Chief FUSION Portrait Micro-Adjustable Ceiling Mount
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
|
User manual for the Chief FUSION Portrait Micro-Adjustable Ceiling Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

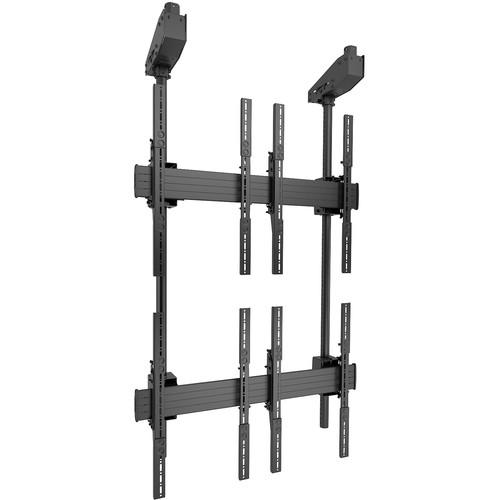

Product description The FUSION Portrait Micro-Adjustable Ceiling Mount from Chief can be used to create a video wall solution even in locations where walls aren't available for mounting. The mount is ideal for digital signage installations and offers tool free screen alignment using knobs for height and plumb adjustments. The mount is compatible with traditional 1.5" NPT and CPA pinned ceiling plates and column systems. Note: Compatible ceiling plate and extension column are required and must be ordered separately. - Precise Screen Alignment
- Allows alignment of displays with independent knobs for height and plumb adjustments
- Controlzone Leveling
- Micro-height and leveling adjustment at all column intersection points
- Infinite Screen Positioning
- Vertical and lateral adjustments provide tight display rows and columns
- Heavy-Duty Construction
- Solid construction supports displays up to 55" and 125 lb per screen
- Configurable
- Add configurations side by side to create any video wall arrangements up to 3 screens tall 1
Please Note: Ceiling plate and extension column are required and are sold separately. close UPC: 841872159102 In the Box Chief FUSION Portrait Micro-Adjustable Ceiling Mount for Video Wall Solutions (2 x 2) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief FUSION Portrait Micro-Adjustable Ceiling Mount for Video Wall Solutions in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCM2X2UP Specs | Adjustments | Micro-adjustments of 2" / 5 cm at structural intersection points | | Height Adjustment | Manual: 1.0" / 2.5 cm increments at structural intersections | | Mounting Pattern Compatibility (Universal Version) | Any width x 100 to 400 mm | | Orientation | Portrait | | Plumb Adjustment | Micro-adjustment up to 0.75" / 1.91 cm | | Typical Screen Sizes | 40.0 to 50.0" / 101.6 to 127.0 cm | | Screen Height | Max: Not specified by manufacturer | | Weight Capacity | 125.0 lb / 56.7 kg per screen |
