User Manual for Chief Fusion Series LCB1U Back-to-Back Flat Panel Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Chief Fusion Series LCB1U Back-to-Back Flat
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
|
User manual for the Chief Fusion Series LCB1U Back-to-Back Flat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

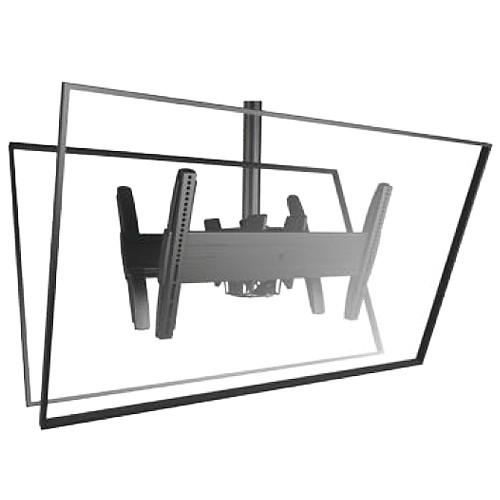

Product description The black Chief Fusion-Series LCB1U Back-to-Back Flat Panel Ceiling Mount can hold two 32 to 60" displays weighing up to 125 lb each. Designed for use with select Chief ceiling plates and extension columns, both sold separately, this mount will provide -20 to 5° tilt for your displays and is VESA 200 x 100 to 600 x 400 compatible. Note: Extension column and ceiling plate are required and sold separately. The LCB1U mount is designed to be mounted to a 1.5" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum-ASTM B221) threaded extension column (sold separately), or a UL Listed Chief CPA Series extension column (sold separately). - Centris technology provides a continuous range of fingertip tilt from -20 to 5°
- Four set locking points at 0, 5, 10, and 15° eliminate guess work when adjusting multiple screens
- Simple on/off column connection for ease of installation and service
- Tool-free screen engagement to secure displays with padlock security that is sold separately
- Compatible with 1.5" NPT and Chief pin-connection CPA ceiling plates and columns
- Stacking capability with CPA columns provides multiple configuration options
UPC: 841872159010 In the Box Chief Fusion Series LCB1U Back-to-Back Flat Panel Ceiling Mount (Landscape, Black) Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Fusion Series LCB1U Back-to-Back Flat Panel Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCB1U Specs | Orientation | Landscape | | Compatibility | Screen Size: 32.0 to 60.0" (81.3 to 152.4 cm)
Ceiling Plates: CPA330, CPA365, CPA395, CMA330, CMA345, and CMA395 | | Weight Capacity | 125.0 lb (56.7 kg) per display | | Mounting Pattern (W x H) | 200 x 100 to 616 x 400 mm | | Dimensions (W x D x H) | 29.5 x 17.0 x 11.0" (74.9 x 43.2 x 27.9 cm) | | Weight | 27.0 lb (12.2 kg) | | | | Package Weight | 33.65 lb | | Box Dimensions (LxWxH) | 29.0 x 16.0 x 10.0" |
