User Manual for Chief In-Ceiling Storage Box with Column Drop Click to enlarge the picture
Contents of the user manual for the Chief In-Ceiling Storage Box with Column
- Product category: Mount Add-Ons Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Mount Add-Ons
 |
User manual for the Chief In-Ceiling Storage Box with Column contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

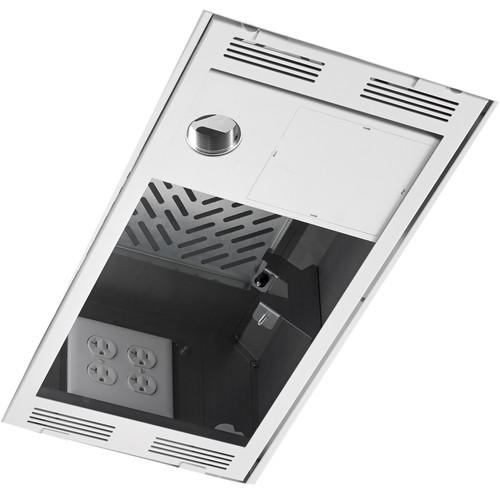

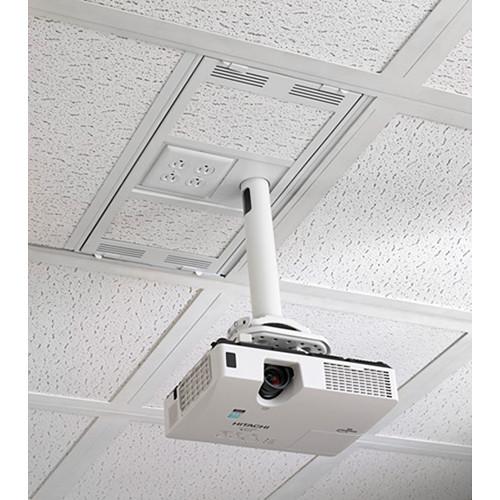

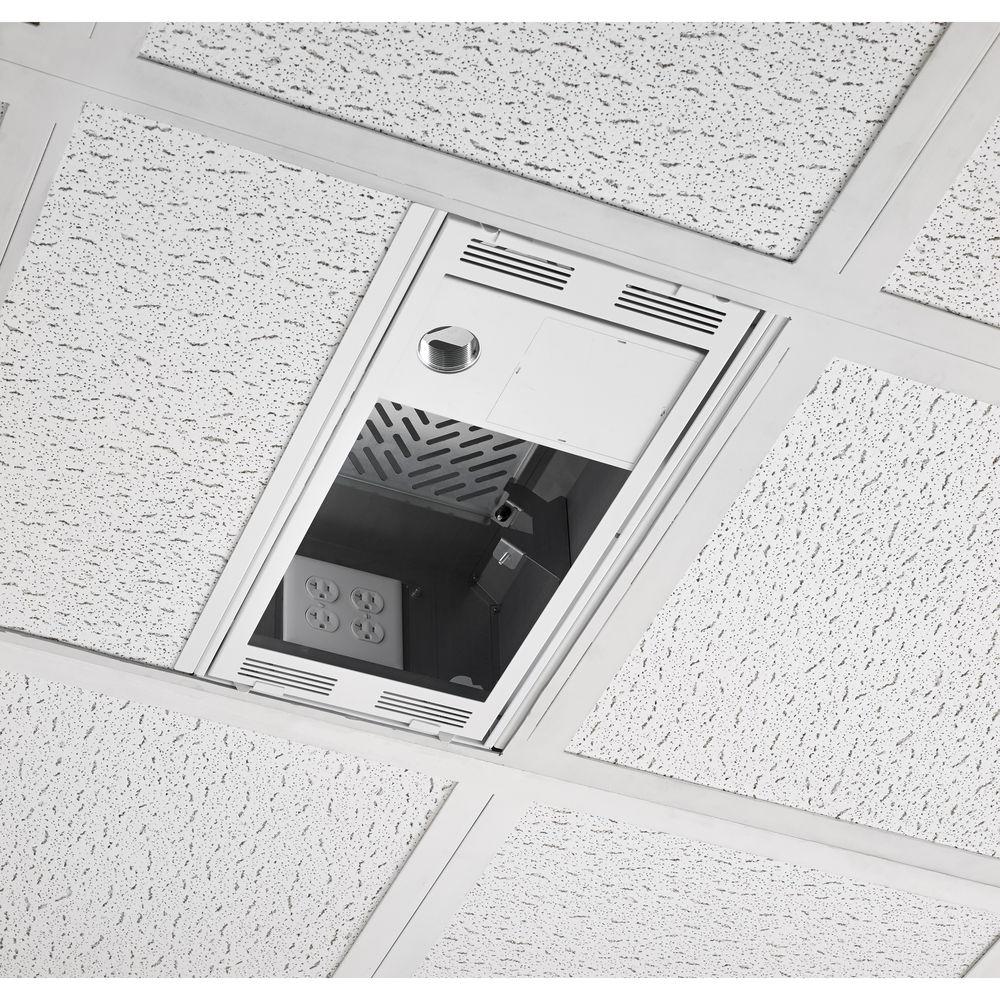

Product description Mount your projector and A/V equipment up to a total of 100 lb in the ceiling with the 1 x 2' Chief In-Ceiling Storage Box. It is designed to conceal a variety of equipment above a 2 x 2' ceiling tile and supports a 1.5" NPT column for mounting your projector to help provide a clean installation. Its detachable power housing can be pre-installed with electricians on-site and assembled to the storage box at a later time. The enclosure includes one shelf and has built-in ventilation. - Pipe flexibility within the tile helps reduce reliance on image correction

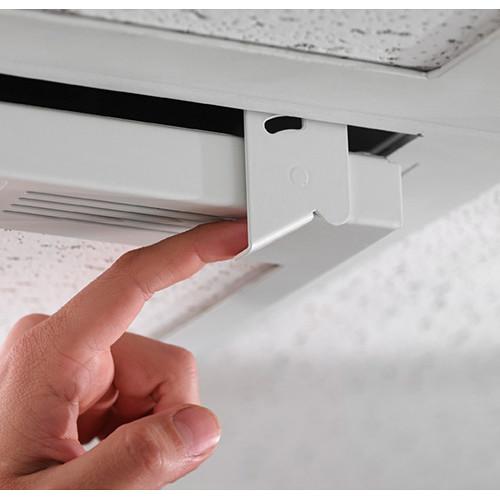

- Drop carriage door enhances accessibility and serviceability, providing virtually full access to equipment

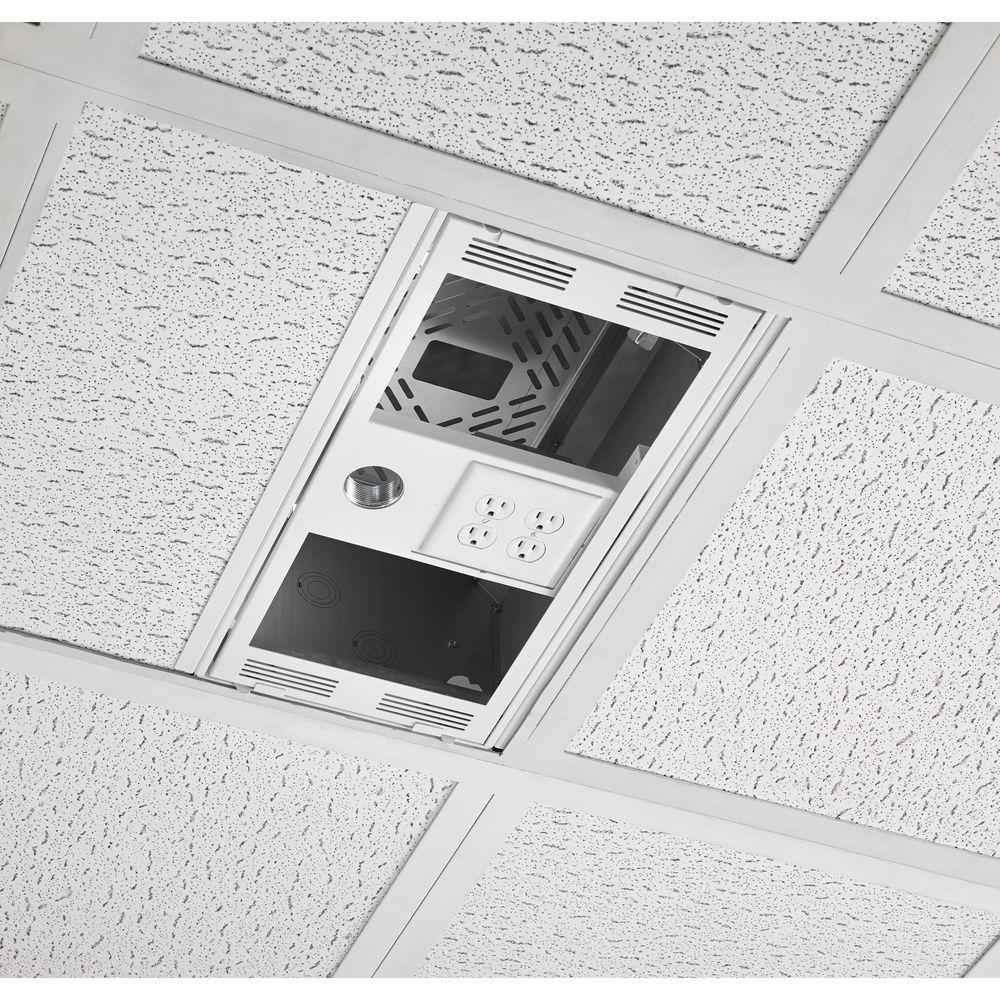

- Detachable power housing can be pre-installed with electricians on-site and assembled to the storage box at a later time inside the plenum box or facing the room
- A/V tray supports a variety of A/V components
- Includes one shelf; second shelf available separately
- Includes speed-connect installation hardware
- Lightweight (31.9 lb) construction, one-person installation
UPC: 841872162881 In the Box Chief In-Ceiling Storage Box with Column Drop (1 x 2') Hardware Kit Limited 10-Year Warranty on Hardware Limited 1-Year Warranty on Electrical Components Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief In-Ceiling Storage Box with Column Drop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief CMS491C Specs | Weight Capacity | Total: 100 lb / 45.4 kg
Projector Ceiling Plate: 50 lb / 22 kg
Each Shelf Location: 25 lb / 11 kg | | NPS or NPT Threading | 1.5" NPT column support | | Maximum Equipment Size | W x H x D: 19.25 x 7.61 x 12" / 489 x 193 x 305 mm | | Knockouts | 4 x nested knockouts for 1.25, 1, 0.5" / 3.175, 2.54, 1.27 cm diameter conduit | | Gang Qty | Up to 2 x single-gang or 1 x dual-gang outlets | | Certification | Plenum rated
UL approved in accordance with 2043
TAA compliant | | Dimensions (W x H x D) | 12.97 x 8 x 23.67" / 329 x 203 x 601 mm | | Weight | 31.9 lb / 14.5 kg | | | | Box Dimensions (LxWxH) | 27.5 x 17.0 x 11.0" |
