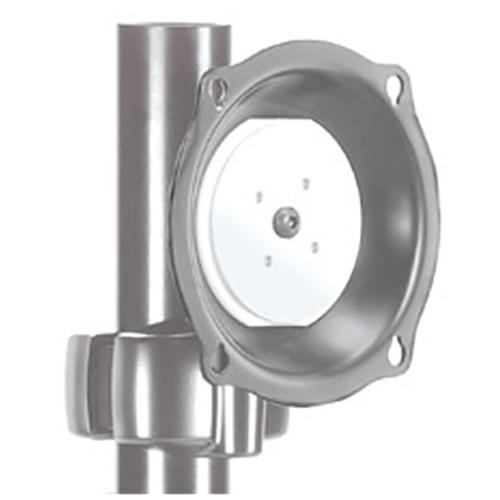

User Manual for Chief JPP210S Pivot-Tilt Pole Mount Click to enlarge the picture
Contents of the user manual for the Chief JPP210S Pivot-Tilt Pole Mount
- Product category: Monitor Pole & Truss Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Pole & Truss Mounts
|
User manual for the Chief JPP210S Pivot-Tilt Pole Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief JPP210S VESA 200x200 Flat Panel Pivot-Tilt Pole Mount is an ideal way to quickly mount 26-45" flat panel TVs to poles 1.5 in diameter.These pole mounts are very useful in display, convention or retail applications and are especially valuable in multi-panel installations where features like Centris Technology enable fingertip adjustment in all directions. Additionally, the panel may be mounted in either landscape or portrait orientation, making it easy to align each panel with the others. Please check compatibility with your specific TV at the manufacturer's website. Note: To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro at chiefmfg.com. - Centris Technology provides smooth, fingertip tilt in all directions.
- Portrait and landscape mounting capability.
- Install mount horizontally and use pitch adjustment for side-to-side pivot.
- Smooth swivel up to 15° in any direction.
- Fast height adjustment for ergonomic alignment.
- Compatible with VESA 200 x 200 mm hole pattern.
UPC: 841872108339 In the Box Chief JPP210S Pivot-Tilt Pole Mount (Silver) Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief JPP210S Pivot-Tilt Pole Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief JPP210S Specs | Number of Displays | 1 | | Mounting-Hole Pattern | 200 x 100 mm, 200 x 200 mm | | Maximum Screen Size | 45" / 114.3 cm | | Minimum Screen Size | 26" / 66 cm | | Bracket Load Capacity | 75 lb / 34 kg | | Swivel Adjustment | 150° | | Tilt Adjustment | -15 to 15° | | Maximum Extension | None | | Dimensions (W x H x D) | 7.4 x 6.0 x 3.8" / 187.9 x 152.4 x 96.5 mm | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 19.45 x 10.3 x 3.75" |
