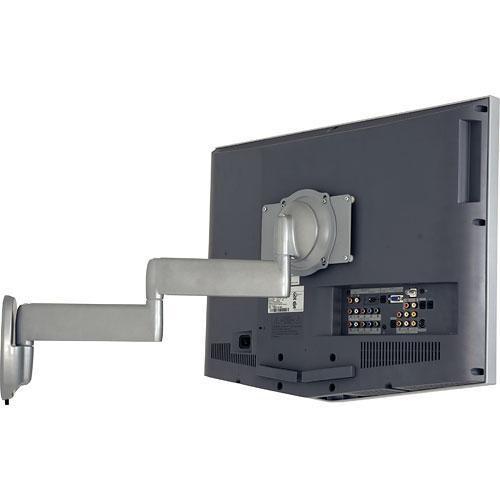

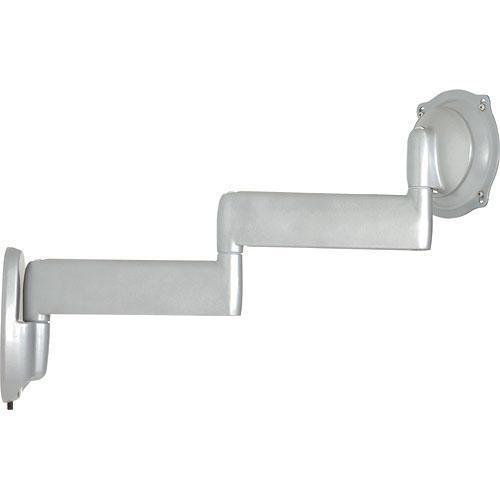

User Manual for Chief JWDVS Universal Flat Panel Dual Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief JWDVS Universal Flat Panel Dual
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
 |
User manual for the Chief JWDVS Universal Flat Panel Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief JWDVS provides a broad range of motion for viewing 26-45" medium flat panel LCD TVs and monitors up to 75 lbs from multiple angles. It features easy installation and ultra smooth adjustment for viewing flexibility, folds in close to the wall for a low-profile appearance, and has built-in cable management for a clean installation. The JWDVS includes a VESA interface bracket making it compatible with hundreds of flat panel displays from 26-45". However, if you want to confirm the compatibility of this mount with your flat panel TV or monitor, please visit Chief's MountFinder Pro.aeuatryxurbatyfwrufqevsczv Easy Installation - Comes assembled for easy installation
- Single stud wall mounting
- VESA-compliant (100 x 100mm, 200 x 100mm, 200 x 200mm and 400 x 200mm patterns). Custom interface brackets also available (MSB-Series)
- Teardrop hole pattern makes mounting the screen quick and easy
- Built-in cable management (insert cables in cavity located in lower portion of mount arm) for a clean installation
Viewing Conveniences - Patented Centris technology provides smooth, fingertip tilt (+/-15°) in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust
- Smooth extension up to 20.38" to achieve ideal viewing angle
- Independently adjustable tension at pivot points for customized control

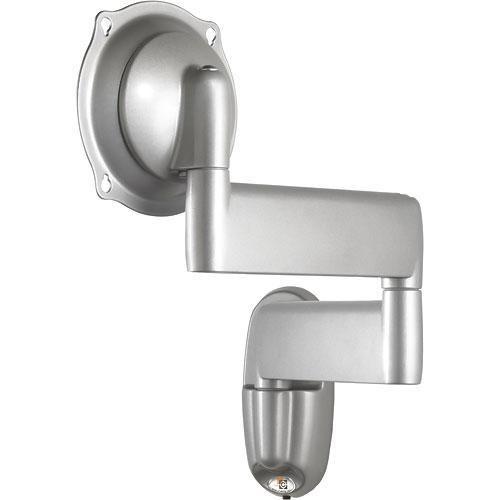

- Folds in close to the wall (2.69") for a low-profile appearance
- Sleek, attractive design hides all hardware
- Backed by a 10-year warranty to ensure that you are receiving the best quality product
UPC: 841872064093 In the Box Chief JWDVS Universal Flat Panel Dual Swing Arm Wall Mount (Silver) Dual Arm Wall Mount J-Series Wall Plate Cable Management Covers (2) 3/8" x 3" Hex Head Lag Screws (2) 8-32 x 3/8" Phillips Flat Machine Screws (4) 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief JWDVS Universal Flat Panel Dual Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief JWD Specs | | | Supported Screen Sizes | Up to 45" / 114.3 cm | | Supported Weight Capacity | 75 lb / 34 kg | | Mounting-Hole Pattern | 100 x 100 to 400 x 200 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -15 to +15
