User Manual for Chief JWPVB Flat Panel Pivot Tilt Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief JWPVB Flat Panel Pivot Tilt
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
 |
User manual for the Chief JWPVB Flat Panel Pivot Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

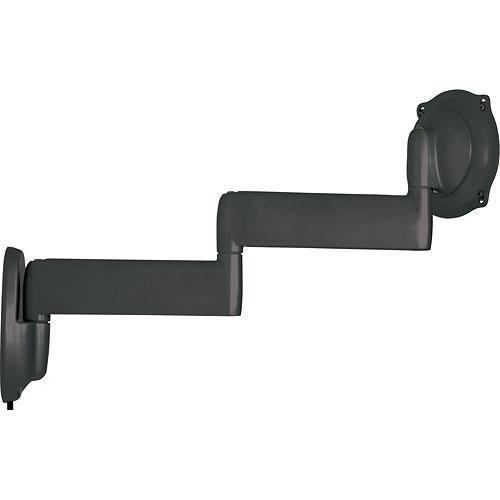

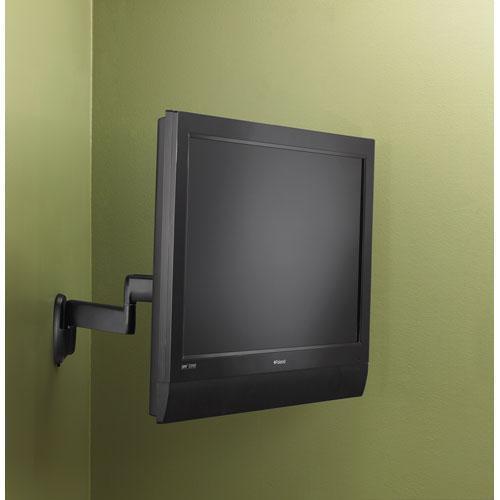

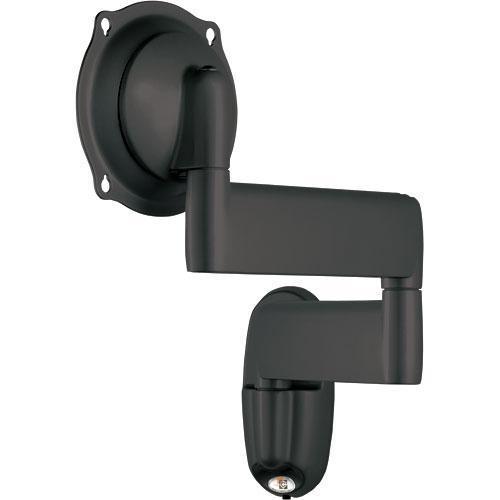

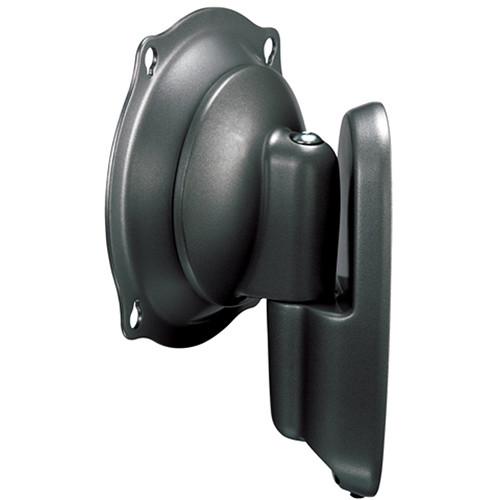

Product description The Chief JWPVB Pivot/Tilt Wall Mount attaches flat panel displays from 26-45" (up to 75 lbs) to the wall and provides smooth pivot and tilt adjustments for different viewing angles. An ergonomic solution, the JWPVB is quick to install, easy to use, and folds in close to the wall for a low-profile appearance. The JWPVB includes a VESA-compliant interface bracket making it compatible with hundreds of flat panel displays from 26-45". However, if you want to confirm the compatibility of this mount with your flat panel TV or monitor, please visit Chief's MountFinder Pro. Easy Installation - Comes assembled for easy installation
- Single stud wall mounting
- VESA 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 100mm, 300 x 200mm and 400 x 200mm compliant. Custom interface brackets are also available (MSB-Series).
- Teardrop hole patterns makes mounting the screen quick and easy
- Quick, easy cable management for a clean installation
Viewing Conveniences - Portrait and landscape rotation
- Patented Centris technology provides smooth, fingertip tilt (+/-15°) in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust
- Independently adjustable tension at pivot points provides customized control
- Sleek, attractive design hides all hardware. Folds in close (3.35") to the wall for a low-profile appearance
- Backed by a 10-year warranty to ensure that you are receiving the best quality product
UPC: 841872064079 In the Box Chief JWPVB Flat Panel Pivot/Tilt Wall Mount (Black) Pivot/Tilt Wall Mount J-Series Wall Plate 3/8" x 3" Hex Head Lag Screws (2) 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief JWPVB Flat Panel Pivot Tilt Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief JWPVB Specs | | | Supported Screen Sizes | Up to 45" / 114.3 cm | | Supported Weight Capacity | 75 lb / 34 kg | | Mounting-Hole Pattern | 100 x 100 to 400 x 200 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -15 to +15
