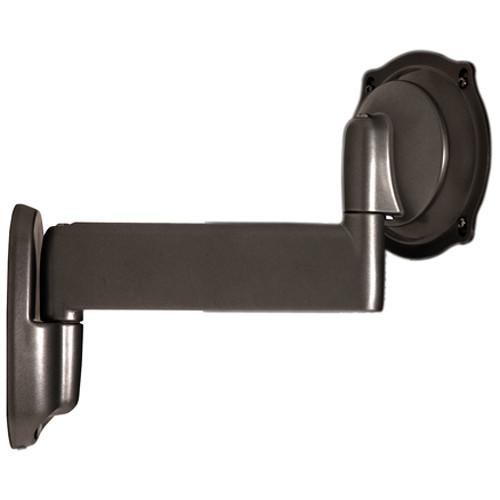

User Manual for Chief JWSVS Flat Panel Single Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief JWSVS Flat Panel Single Swing
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief JWSVS Flat Panel Single Swing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Sleek and attractively designed, the Chief JWSVS Single Swing Arm Wall Mount provides a broad range of motion for viewing 26-45" flat panel TVs and monitors (up to 75 lbs) from multiple angles. It features easy installation and ultra smooth adjustment for viewing flexibility. For convenience, it folds in close to the wall for a low-profile appearance and has built-in cable management.The JWSVS includes a VESA-compliant interface bracket making it compatible with hundreds of flat panel displays from 26-45". However, if you want to confirm the compatibility of this mount with your flat panel TV or monitor, please visit Chief's MountFinder Pro.dcdqyzar Easy Installation - Comes assembled for easy installation
- Single stud wall mounting
- VESA-compliant (100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 100mm, 300 x 200mm, and 400 x 200mm patterns). Custom interface brackets are also available (MSB-Series)
- Teardrop hole patterns makes mounting the screen quick and easy
- Built-in cable management (insert cables in cavity located in lower portion of mount arm) for a clean installation
Viewing Conveniences - Patented Centris technology provides smooth, fingertip tilt (+/-15°) in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust
- Smoothly extends out to 11.88" to achieve ideal viewing angle. Swivels up to 180°
- Independently adjustable tension at pivot points provides customized control
- Sleek, attractive design hides all hardware. Folds in close (3.38") to the wall for a low-profile appearance
- Backed by a 10-year warranty to ensure that you are receiving the best quality product
UPC: 841872064062 In the Box Chief JWSVS Flat Panel Single Swing Arm Wall Mount (Silver) Single Arm Wall Mount J-Series Wall Plate Cable Management Cover 3/8" x 3" Hex Head Lag Screws (2) 8-32 x 3/8" Phillips Flat Machine Screws (2) 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief JWSVS Flat Panel Single Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief JWSVS Specs | | | Supported Screen Sizes | Up to 45" / 114.3 cm | | Supported Weight Capacity | 75 lb / 34 kg | | Mounting-Hole Pattern | 100 x 100 to 400 x 200 mm | | Number of Displays Supported | 1 | | | | Screen Pivot (Arm) | 180
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
