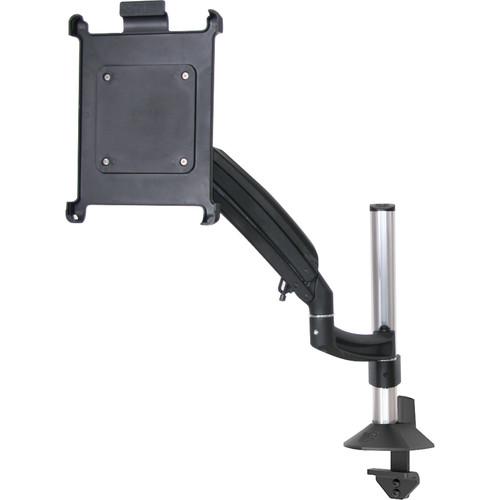

User Manual for Chief K1C120BXI2B Kontour K1C120B & FSBI2B Portable iPad Interface iPad Mount Kit Click to enlarge the picture
Contents of the user manual for the Chief K1C120BXI2B Kontour K1C120B & FSBI2B
- Product category: Monitor Table Top Stand Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Table Top Stand Mounts
|
User manual for the Chief K1C120BXI2B Kontour K1C120B & FSBI2B contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The K1C120BXI2B Kontour K1C120B with FSBI2B Portable iPad Interface iPad Mount Kit from Chief includes the K1C120B Dynamic Desk Clamp Mount and the FSBI2B Portable iPad Interface Bracket for an iPad 2, 3rd-generation iPad with 30-pin connector, or 4th-generation iPad with Lightning connector. Also included is the KRA400B weight-plate adapter for use with the FSBI2B on the dynamic lifting arm.
The K1C120B Kontour K1C Dynamic Column mount supports landscape and portrait viewing, and features Centris Extreme Tilt technology for flexible viewing. The height can also be adjusted to accommodate your viewing environment. This mount arm features a desk clamp design and includes mounting hardware for easy installation.
The FSBI2B iPad 2nd, 3rd & 4th Generation Interface Bracket is designed to allow you to attach your 2nd, 3rd or 4th Generation iPad to select Chief wall, desk, and pole mounts. It attaches to any VESA 100 x 100 mm compatible mount and securely holds your tablet while in use.
The KRA400B Weighted Adapter Plate provides necessary weight for ideal functioning of dynamic height adjust arm with a mounted iPad. - Kontour K1C Dynamic Column Mount (Black) Securely mount your monitor to a desk with the black Chief Kontour K1C Dynamic Column Mount. This device supports landscape and portrait viewing, and features Centris Extreme Tilt technology for flexible viewing. The height can also be adjusted to accommodate your viewing environment. This mount arm features a desk clamp design, and includes mounting hardware for easy installation. The Kontour K1C is compatible with displays that incorporate 75 x 75mm and 100mm x 100mm mounting patterns, and with a weight up to 22 lb.
- Centris Extreme Tilt provides +75°, -10° of tilt, for optimal viewing comfort whether sitting or standing
- 20" of total height adjustment range, including 13" of dynamic height adjustment using smooth motion gas-spring technology, and an additional 7" of manual height adjustment on the column
- 3-step installation and quick-release monitor interface for easy mounting and maintenance
- Clamps to edge of desk through standard grommet hole, or through bolt hole with the included mounting hardware kit
- Tool-free cable management covers attached cords for a clean, professional look
- Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation
- Recyclable design and TAA compliant
- Allen key storage in the mount's base
UPC: 841872160016 - iPad 2nd, 3rd & 4th Generation Interface Bracket - VESA 100 x 100 (Black) The black iPad 2nd, 3rd & 4th Generation Interface Bracket - VESA 100 x 100 from Chief is designed to allow you to attach your 2nd, 3rd or 4th Generation iPad to select Chief wall, desk and pole mounts. It attaches to any VESA 100 x 100 mm compatible mount, and securely holds your tablet while in use. And when you want to take your iPad on the road, no worries; the bracket can easily be removed without the use of tools. Features include custom-molded materials, a minimalist design, and durable functionality.
- Attaches to any VESA 100 x 100 mm compatible mount
- Securely holds tablet while in use; easy toolless removal when on-the-go
- Custom-molded materials, minimalist design, durable functionality
- Compatibility
- Chief FSR4100, FTR4100, KCD110, KWD110, K2C100, K2W100, KPD100, K2P100 and other Chief F and K-Series products (except dynamic height adjustable arms)
UPC: 841872153438 - KRA400B Weighted Adapter Plate for Kontour Dynamic Height Adjustable Arms & iPad Interfaces (Black)
In the Box Bundle Items Kontour K1C Dynamic Column Mount (Black) urddcxeqvzrvbe KRA400B Weighted Adapter Plate for Kontour Dynamic Height Adjustable Arms & iPad Interfaces (Black) iPad 2nd, 3rd & 4th Generation Interface Bracket - VESA 100 x 100 (Black) urddcxeqvzrvbe Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief K1C120BXI2B Kontour K1C120B & FSBI2B Portable iPad Interface iPad Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Kontour K1C Dynamic Column Mount (Black)
| | | Number of Displays Supported | 1 | | Orientation | Landscape, portrait | | Tilt | +75°, -10° | | Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) | | Dynamic Height Adjustment | 13" (330.2 mm) | | Manual Height Adjustment | 7.0" (177.8 mm) | | Maximum Extension | 22.5" (571.0 mm) | | Maximum Depth | 2.45" (62 mm) | | Mounting Pattern Compatibility (Universal Version) | 75 x 75 mm, 100 x 100 mm | | Compliances | TAA compliant | | Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals | | Weight Capacity | 5 - 22 lb (2.3 - 9.9 kg) | | | | Box Dimensions (LxWxH) | 37.0 x 15.5 x 6.0" | - iPad 2nd, 3rd & 4th Generation Interface Bracket - VESA 100 x 100 (Black)
| Compatibility | iPad 2nd, 3rd, 4th Generation | | Weight Capacity | 2.0 lb (0.9 kg) | | Mounting Pattern Compatibility | 3.9 x 3.9" (100.0 x 100.0 mm) | | Overall Dimensions | 10.2 x 7.5 x 0.7" (259.0 x 191.0 x 18.0 mm) (HxWxD) | | | | Box Dimensions (LxWxH) | 12.25 x 9.45 x 2.7" | - KRA400B Weighted Adapter Plate for Kontour Dynamic Height Adjustable Arms & iPad Interfaces (Black)
