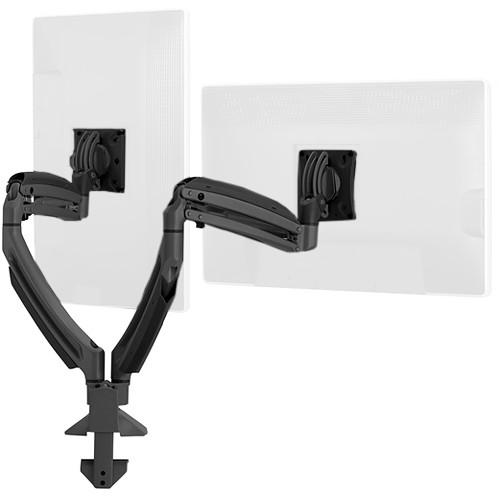

User Manual for Chief K1D220BXDL Kontour K1D220S with Dell Quick-Connect Interfaces Click to enlarge the picture
Contents of the user manual for the Chief K1D220BXDL Kontour K1D220S with Dell
- Product category: Monitor Table Top Stand Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Table Top Stand Mounts
|
User manual for the Chief K1D220BXDL Kontour K1D220S with Dell contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The black K1D220BXDL Kontour K1D220S with Dell Quick-Connect Interfaces from Chief includes the K1D220B K1D Dynamic Desk Clamp Mount for 2 Monitors, and the KSA1250B Quick-Connect Bracket for Dell UltraSharp Series Monitors. The K1D220 allows you to mount two monitors. It features Chief's patented Centris Extreme Tilt technology for fingertip monitor positioning. It allows +75 to -10° of effortless tilt, for optimal viewing comfort whether sitting or standing. It also allows for 13" of dynamic height adjustment. The KSA1250B Quick-Connect Bracket allows fast and easy installation of any Dell UltraSharp monitor onto the K1D220B. It interfaces with the click-in interface on a Dell Ultrasharp monitor for a hardware-free connection. - Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors (Black) The black Chief Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors allows you to mount two monitors. The mount features sleek, solidly-constructed forged aluminum arms. Chief's patented Centris Extreme Tilt technology allows for fingertip monitor positioning - it allows +75°/ -10° of effortless tilt, for optimal viewing comfort whether sitting or standing. It also allows for 13" of dynamic height adjustment. Mounting and maintenance is made easy with three-step installation and a quick-release monitor interface. The mount clamps to edge of desk, through standard grommet hole, or through a bolt hole with the included kit. It also features tool-free cable management covers for a clean, professional look.
- Forged aluminum arms with a subtle black finish
- Patented Centris Extreme Tilt provides +75°, -10° of effortless tilt for viewing comfort
- 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
- Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
- Clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
- Tool-free cable management covers for a clean, professional look
- High levels of recycled content and a highly-recyclable design - Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
UPC: 841872160184 - Quick-Connect Interface for Dell Monitors (Black) The Chief Quick-Connect Interface allows you to attach most Dell monitors to any Chief Kontour monitor arm. It's designed for compatibility with most Dell monitors that have a recessed cutout design on the rear.
Installation consists of securing the interface to the 100x100 VESA pattern of the Kontour arm with included screws and then simply clicking the interface onto the recessed back of the monitor. - Features
-
- Attach most Dell monitors to any Chief Kontour monitor arm
- Compatible with most Dell monitors that have a recessed cutout design on the rear
In the Box Bundle Items Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors (Black) 2 x Quick-Connect Interface for Dell Monitors (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief K1D220BXDL Kontour K1D220S with Dell Quick-Connect Interfaces in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors (Black)
| | | Supported Screen Sizes | 10 to 30" / 25.4 to 76.2 cm | | Number of Displays Supported | 2, Side-by-Side | | Load Capacity | 25 lb / 11.3 kg (Per Arm) | | Mounting-Hole Pattern | 75 x 75 to 100 x 100 mm | | Orientation | Landscape, Portrait | | Clamp Desk Compatibility | 0.5 to 2.5" / 1.3 to 6.3 cm | | Minimum Depth Requirement | 2.45" / 62 mm | | | | Tilt Adjustment | 85° (-10 to 75°) | | Height Adjustment | 13.0" / 33.0 cm | | Max Arm Extension Length | 21.6" / 549 mm | | | | Material of Construction | Aluminum | | | | Box Dimensions (LxWxH) | 36.1 x 11.0 x 10.0" | - Quick-Connect Interface for Dell Monitors (Black)
| Color | Black | | Mounting Pattern | 100 x 100mm VESA for compatibility with any Chief Kontour monitor arm | | Weight Capacity | 25 lb (11.3 kg) | | | | Box Dimensions (LxWxH) | 8.5 x 6.0 x 1.5" |
