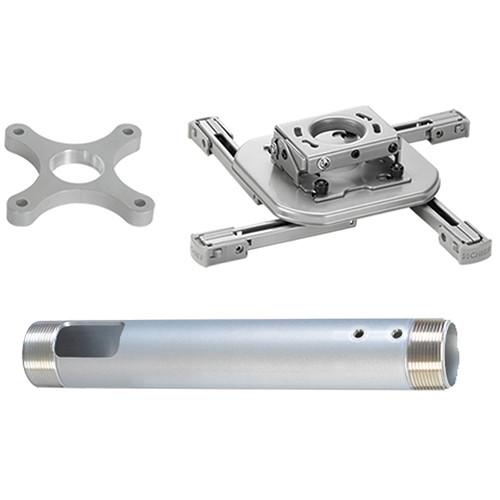

User Manual for Chief KITAF003S Projector Ceiling Mounting Kit Click to enlarge the picture
Contents of the user manual for the Chief KITAF003S Projector Ceiling Mounting Kit
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief KITAF003S Projector Ceiling Mounting Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The silver Chief KITAF003S Projector Ceiling Mounting Kit simplifies ordering and installation of projector ceiling mount products. It comprises of a mini universal RPA ceiling mount, a 3" fixed extension column, and a designer ceiling plate. - RSMD000 Mini RPA Projector Mount (Silver) The Chief RSAUS Mini RPA Projector Mount builds on the foundation of the highly successful RPA mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package.Although 33% smaller than the RPA, this mini mount retains much of the functionality of the larger mount, with independent roll, pitch and yaw adjustments for quick and precise projector registration and a 25 lb capacity. Shipped fully assembled, the RSAUS is also quick to connect or disconnect for lamp or filter changes while maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected. The RSAUS offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns. The included universal fits most projectors.To confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.wvbszttrdqsuus
- Smaller Form Factor
- Compact design is smaller than the RPA Elite by 1/3 and includes all the same features.
- Independent Adjustments
- Independent roll, pitch and yaw for quick and precise projector registration.
- Quick Release
- Quick connect/disconnect with convenient lamp and filter access on most projectors. Disconnecting maintains registration and doesn't affect preset adjustments.
- Security
- All-Points Security steel-into-steel locking hardware at all connection points protects against theft. (No key or lock)
- Installation
- Multiple installation options including: flush mount to ceiling, use 0.25" threaded rods, or use a 1.5" NPT column.
- Fits Most Projectors
- Now includes new universal interface to further reduce installation time.
UPC: 841872119748 - CMS-003S 3" Speed-Connect Fixed Extension Column (Silver) Use the silver Chief CMS-060 Speed-Connect Fixed Extension Column to lower your projector or flat panel display an additional 3" from the ceiling. Use in combination with any 1.5" NPT ceiling plate or other accessory. Consists of 1.5" NPT column threaded on both ends. Aluminum construction makes installation easy and saves on shipping costs. Weight capacity is 500 lb.
- Made of aluminum for easy installation and maximum strength
- Weight capacity is 500 lbs
UPC: 841872104119 - 5" Designer Ceiling Plate with 1-1/2" NPT Opening (Silver) Cost effective, attractive solution for simple installs, the silver Chief Designer Ceiling Plate is designed for ease of installation with any height of drop ceiling. By using any length of standard NPT 1-1/2" pipe, threaded on both ends, you can extend the height capabilities to meet your needs.
- Can hold equipment using all four holes or two opposing holes
- 4" x 4" mounting pattern is designed to allow use of 3/8" mounting bolts
- Includes set screw to secure a 1-1/2" NPT to the ceiling plate
- Weight capacity is 500 lbs.
UPC: 841872027555 In the Box Bundle Items RSMD000 Mini RPA Projector Mount (Silver) wvbszttrdqsuus - 10 Year Manufacturer's Warranty
CMS-003S 3" Speed-Connect Fixed Extension Column (Silver) 5" Designer Ceiling Plate with 1-1/2" NPT Opening (Silver) - 4" Flat Ceiling Plate CMA-101
- 5/16-18 x 3/8" Security Set Screw
- 5/16-18 x 3/8" Socket Set Screw
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief KITAF003S Projector Ceiling Mounting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RSMD000 Mini RPA Projector Mount (Silver)
| Compatibility | To confirm the compatibility of this mount with your projector, visit Chief's | | Adjustments | Roll: +/-3°
Pitch: +/-20°
Yaw: 360° | | Construction | Steel | | Dimensions (HxWxD) | 1.44 x 4.38 x 4.39" (3.7 x 11.1 x 11.2 cm) | | Weight Capacity | 25 lbs (11.3 kg) | | Color | Silver | | | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 4.0" | - CMS-003S 3" Speed-Connect Fixed Extension Column (Silver)
| Construction | Aluminum | | Finish | Silver | | Length | 3" | | Adjustments | Fixed column | | Weight | Capacity: 500 lb (226.8 kg) | | | | Box Dimensions (LxWxH) | 5.6 x 2.3 x 2.25" | - 5" Designer Ceiling Plate with 1-1/2" NPT Opening (Silver)
| Certifications | OSHPD Approved
TÜV Certified
UL Listed | | Weight Capacity | 500 lb / 226.8 kg | | Dimensions | 0.7 x 5 x 5" / 18 x 127 x 127 mm | | Weight | 0.9 lb / 0.4 kg |
