User Manual for Chief KITMD003W Projector Mount Kit Click to enlarge the picture
Contents of the user manual for the Chief KITMD003W Projector Mount Kit
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief KITMD003W Projector Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

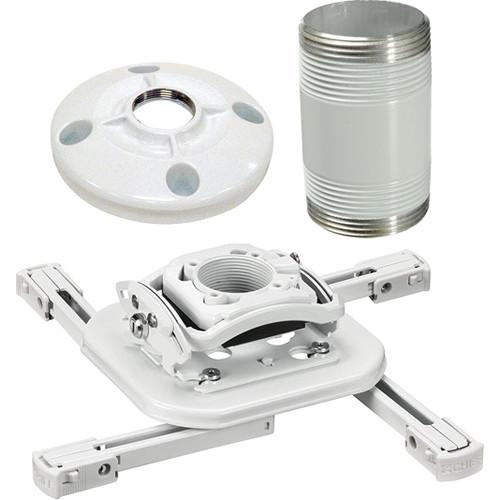

Product description The Chief KITMD003W Projector Mount Kit (White) includes the Chief RSMAUW Universal Mini Elite Projector Mount, CMS003W 3" Speed-Connect Fixed Extension Column, and CMS115W 6" Speed-Connect Ceiling Plate.The Chief RSMAUW Mini RPA Elite Projector Mount builds upon the RPA Elite mount and offers a compact design. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future. Although 1/3 smaller than the RPA, this mini mount maintains 100% of the functionality of the larger mount, with independent MicroZone adjustments and supports projectors up to 25 pounds. Centris Technology allows for fingertip positioning, which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the RSMAUW is also quick to connect or disconnect for lamp or filter changes thanks to the Q-Lock release lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates a key and lock for enhanced security. The RSMAUW offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns. Although the RSMAU is considered universal because it fits most projectors, to confirm the compatibility of this mount with your projector, visit Chief's MountFinderProretarddccutuuxetecue. - Smaller Design
- Compact design is smaller than the RPA Elite by 33% but still includes all of its features
- Adjustment Options
- MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
- Fingertip Positioning
- Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
- Cable Management
- Integrated cable management allows you to route cables through the top of the mount without using any additional accessories
- Quick Connect and Disconnect
- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)
UPC: 841872144801 In the Box Chief KITMD003W Projector Mount Kit (Projectors up to 25 lb, White) CHRSMAUW CHCMS003W CHCMS115W 10-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief KITMD003W Projector Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief KITMD003W Specs | | | Depth From Mounting Source | Not Specified by Manufacturer | | Max Equipment Size | 25.0 lb (11.3 kg) | | Column | 1.5" NPT | | Adjustments | Roll:+/-3°
Pitch: +/-15°
Yaw: 360° | | | | Construction | Steel, White | | Dimensions | 1.83 x 4.37 x 5.07" (46 x 111 x 129 mm) | | Weight Capacity | 25.0 lb (11.3 kg) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 15.1 x 11.3 x 7.7" |
