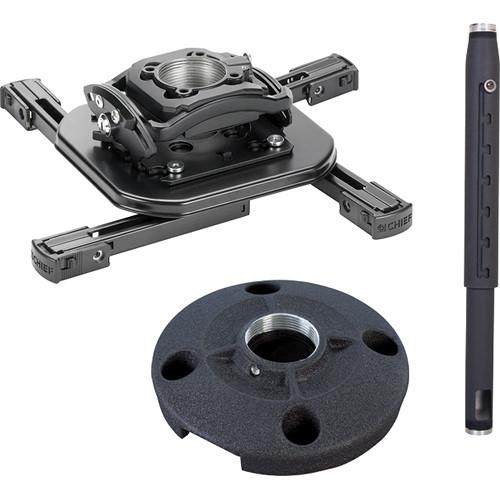

User Manual for Chief KITMD0203 Projector Mount Kit Click to enlarge the picture
Contents of the user manual for the Chief KITMD0203 Projector Mount Kit
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief KITMD0203 Projector Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief KITMD0203 Projector Mount Kit includes RSMAU Mini Elite Universal Projector Mount (Lock A), CMS0203 2-3' Adjustable Extension Column, and CMS115 speed connect ceiling plate. The RSMAU Mini Elite Universal Projector Mount allows you to easily mount a projector weighing up to 25 lb (11.3 kg). Centris technology allows for fingertip tilting and rotation of the display, and automatically adjusts the mount to support different projector weights. MicroZone adjustments allow for quick and precise projector registration.
Integrating a hassle-free cable management system, the clamp mount prevents tangling and damage to the cords and also helps in reducing clutter. The RSMAU Mini Elite mount features a Q-lock quick release lever that can be used for quickly connecting or disconnecting the projector. - RSMAU Mini Elite Universal Projector Mount (Lock A)
-
- RSMAU Projector Mount allows you to easily mount a projector weighing up to 25 lb (11.3 kg)
- Centris technology allows for fingertip tilting and rotation of the display, and automatically adjusts the mount to support different projector weights
- MicroZone adjustments allow for quick and precise projector registration
- Hassle-free cable management system
- Q-lock quick release lever that can be used for quickly connecting or disconnecting the projector
- CMS0203 2-3' Adjustable Extension Column
-
- Adjust the height in 1" (24.4 mm)
- Sports a notched design for adjustment without disassembly
- Consists of 1.5" NPT column, threaded on both ends
- Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
- Includes set screw for add stability
- CMS115 Speed Connect Ceiling Plate
-
- Provides a clean look and makes installation quick and easy
- Aluminum construction for optimal strength in a lightweight design
- 1.5” NPT compatible
- Integrated cable management - allows cables to exit the top of the plate through the cable exit port
- All-Points Security System exclusive locking hardware at column connection point to protect against theft
UPC: 841872144856 In the Box Chief KITMD0203 Projector Mount Kit RSMAUS Mini RPA Elite Projector Mount (Black) CMS115 Speed Connect Ceiling Plate CMS0203 2-3' Adjustable Extension Column 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief KITMD0203 Projector Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief KITMD0203 Specs | | | Adjustments | Roll: 3°
Pitch: 15°
Yaw: 360° | | Color | Black | | Solution Type | Universal | | Dimensions (HxWxD) | 1.8 x 4.4 x 5.1" (46 x 111 x 129 mm) | | Weight | 25 lb (11.3 kg) | | | | Color | Black | | Certifications | TUV Approved, UL Approved | | Dimensions (HxWxD) | 36.0 x 2.3 x 2.3" (914 x 59 x 59 mm) | | Weight Capacity | 500 lb (226.8 kg) | | | | Certifications | TUV Approved, UL Approved | | Color | Black | | Dimensions (HxWxD) | 1.8 x 6.5 x 6.5" (46 x 165 x 165 mm) | | Weight Capacity | 500 lb (226.8 kg) | | | | Package Weight | 14.9 lb | | Box Dimensions (LxWxH) | 31.25 x 16.0 x 9.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
