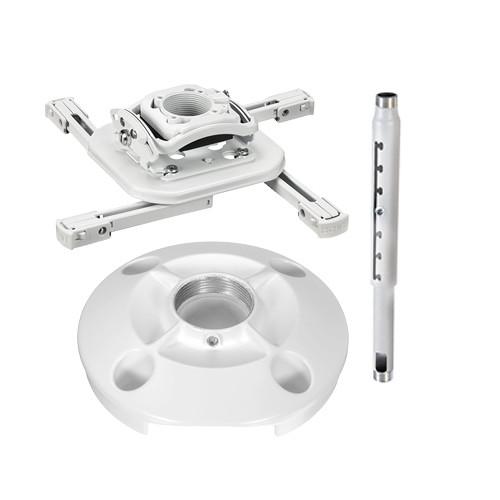

Chief KITMD0203 Projector Mount Kit

User Manual for Chief KITMD0203 Projector Mount Kit

• Product category: Projector Mounts Chief
• Brand: Chief
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Chief Projector Mounts

Product description

• RSMAUS Mini RPA Elite Projector Mount (White) The Chief RSMAUS Mini RPA Elite Projector Mount builds on the foundation of the highly successful RPA Elite mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.

  Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent MicroZone adjustments and a 25 lb capacity. Centris Technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the RSMAUS is also quick to connect or disconnect for lamp or filter changes via the Q-Lock Release Lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates an "A" series key and lock.



  Although the RSMAUS is considered universal insofar as it fits most projectors, to confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.yyccsycyrqtczxtv
  Smaller Form Factor
  • Compact design is smaller than the RPA Elite by 1/3 and includes all the same features
  Micro-Adjustable
  • MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
  Fingertip Positioning
  • Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
  Cable Management
  • Integrated cable management through top of mount without additional accessories
  Quick Release
  • Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)
  UPC: 841872119816
• CMS-115W Speed-Connect Ceiling Plate (White) The Chief CMS-115W Speed-Connect Adjustable Extension Column (White) focuses on speed of installation. The Speed-Connect Series was designed as an upgrade to the popular CMA Series of ceiling mount accessories. The Speed-Connect Series integrates easy-to-use features that focus on saving time and maximizing security. The Speed-Connect adjustable extension columns include a host of features to make your installations faster and more secure. Design innovations include a continuously adjustable notch for length changes (1" increments) without disassembly, aluminum construction for easier installation and flow-through cable management with an integrated port (12" columns or longer) for routing cables. Includes 1.5" NPT threads on both ends (in 6"-12' lengths) and can be used with many of Chief's popular accessories.
  • Low-profile, aesthetic design
  • Integrated cable management - Allows cables to exit the top of the plate through the cable exit port
  • All-Points Security System - Exclusive locking hardware at column connection point to protect against theft
  • Aluminum construction for optimal strength in a lightweight design
  • 1.5" NPT Compatible
  UPC: 841872076096
• CMS-0203W 2-3' Speed-Connect Adjustable Extension Column (White) Threaded on both ends, the white Chief CMS-0203W is a 2 - 3' (60.9 - 91.4cm) adjustable extension column that can be used with any 1.5" NPT accessory to lower a projector or flat panel display to a desired height. Includes a continuously adjustable notch for length changes (1" increments) without disassembly, aluminum construction for fast and easy installation, and flow-through cable management with an integrated port for routing cables. Supports up to 500 pounds.
  • Revolutionary notched design allows for lightning-fast height adjustments without disassembly
  • Aluminum construction for easier installation - also saves on shipping costs
  • Flow-through cable management with an integrated port on one end for routing cables
  UPC: 841872092768

• Interface Bracket

• Security Kit

• Nuts, Screws and Hardware

• 10 Year Manufacturer's Warranty

• (2) 5/16 x 1/8"

• (1) 5/32" Allen Wrench

• Ten-Year Warranty

• 5/16 x 5/8" Screw

• 5/16" Lock Washer

• 5/16" Flat Washer

• 5/16 x 1/4" Nuts (2)

• 5/32" Allen Wrench

• 5/16 x 1/14" Nut

• 3/16" Allen Wrench

• 10-Year Warranty

Also Includes

• Limited 10-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RSMAUS Mini RPA Elite Projector Mount (White)

  Compatibility	To confirm the compatibility of this mount with your projector, visit Chief's
  Adjustments	Roll: +/-3° Pitch: +/-15° Yaw: 360°
  Construction	Steel
  Dimensions (HxWxD)	1.83 x 4.37 x 5.07" (4.6 x 11.1 x 12.9 cm)
  Weight Capacity	25 lbs (11.3 kg)
  Color	White

  Box Dimensions (LxWxH)	10.4 x 10.3 x 4.6"

• CMS-115W Speed-Connect Ceiling Plate (White)

  Construction	Aluminum, White
  Dimensions	6.5 x 6.5 x 1.8" (16.51 x 16.51 x 4.57 cm)
  Weight	Not specified; Weight Capacity: 500 lb (186.62 kg)

  Box Dimensions (LxWxH)	6.8 x 6.7 x 2.8"

• CMS-0203W 2-3' Speed-Connect Adjustable Extension Column (White)

  Construction	Aluminum
  Finish	White
  Length	2-3'
  Adjustments	Not Specified by Manufacturer
  Weight	Capacity: 500 lbs (226.8kg)

  Box Dimensions (LxWxH)	29.0 x 3.0 x 3.0"
