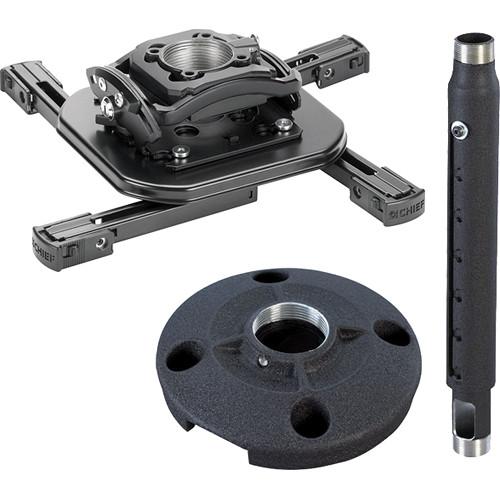

Product description The Chief KITMD0305 Projector Flat Ceiling Kit includes an RSMAU Mini Elite Universal Projector Mount (Lock A), a CMS0305 3-5' Adjustable Extension Column, and a CMS115 Speed Connect Ceiling Plate and is ideal for mounting smaller projectors weighing up to 25 lb (11.3 kg).
Centris technology automatically adjusts the mount to support different projector weights and also ensures fingertip tilting and rotation. MicroZone adjustments allow for quick and precise projector registration. Hassle-free cable routing on top of the mount prevents tangle and damage to the cords and helps reduce clutter around the installation. A Q-lock quick release lever on the mount ensures quickly connecting or disconnecting the projector.
CMS0305 3-5' Adjustable Extension Column can be raised or lowered in height by increments of 1" (24.4 mm) and the notched design lets you do the adjustments without having to disassemble the rods.
With a channel to route the cables through, the Speed Connect Ceiling Plate provides a clean look and also makes the installation quick and easy. Locking hardware on the plate at the column connection point, protects against theft. - RSMAU Mini Elite Universal Projector Mount (Lock A)
- Can mount projectors weighing up to 25 lb (11.3 kg)
Centris technology helps fingertip tilting and rotation of the display
Mount automatically adjusts to support different projector weights
MicroZone adjustments ensure quick and precise projector registration
Hassle-free cable routing and management
Q-lock quick release lever quickly connects or disconnects the projector - CMS0305 3-5' Adjustable Extension Column
- Adjust the height in increments of 1" (24.4 mm)
Sports a notched design for adjustment without disassembly
Consists of 1.5" NPT column, threaded on both ends
Includes set screw for added stability - CMS115 Speed Connect Ceiling Plate
- Provides a clean look and makes installation quick and easy
Aluminum construction for optimal strength in a light-weight design
Locking hardware at column connection point to protect against theft UPC: 841872144870 In the Box Chief KITMD0305 Projector Flat Ceiling Kit RSMAUS Mini RPA Elite Projector Mount (Black) CMS-0305 3-5' Speed-Connect Adjustable Extension Column (Black) CMS-115 Speed-Connect Ceiling Plate (Black) 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief KITMD0305 Projector Flat Ceiling Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief KITMD0305 Specs | | | Adjustments | Roll: 3°
Pitch: 15°
Yaw: 360° | | Solution Type | Universal | | Color | Black | | Overall Dimensions (H x W x D) | 1.8 x 4.4 x 5.1" (46 x 111 x 129 mm) | | Weight Capacity | 25 lb (11.3 kg) | | | | Certifications | TUV Approved, UL Approved | | Color | Black | | Overall Dimensions (H x W x D) | 60 x 2.3 x 2.3" (1524 x 59 x 59 mm) | | Weight Capacity | 500 lb (226.8 kg) | | | | Certifications | TUV Approved, UL Approved | | Color | Black | | Overall Dimensions (H x W x D) | 1.8 x 6.5 x 6.5" (46 x 165 x 165 mm) | | Weight Capacity | 500 lb (226.8 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 48.0 x 12.5 x 12.5" |
