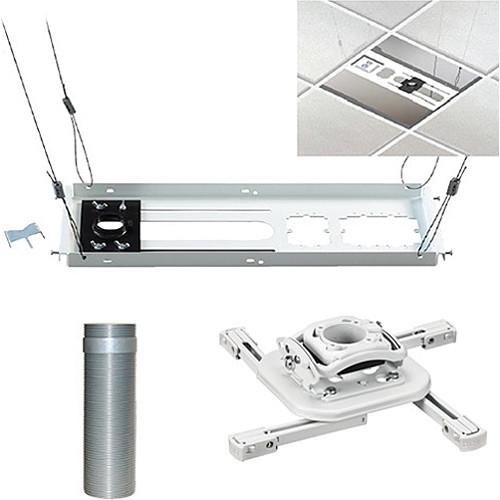

Chief KITMZ006W Projector Ceiling Mount Kit

User Manual for Chief KITMZ006W Projector Ceiling Mount Kit

• Product category: Projector Mounts Chief
• Brand: Chief
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Chief Projector Mounts

Product description

• RSMAUS Mini RPA Elite Projector Mount (White) The Chief RSMAUS Mini RPA Elite Projector Mount builds on the foundation of the highly successful RPA Elite mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.

  Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent MicroZone adjustments and a 25 lb capacity. Centris Technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the RSMAUS is also quick to connect or disconnect for lamp or filter changes via the Q-Lock Release Lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates an "A" series key and lock.



  Although the RSMAUS is considered universal insofar as it fits most projectors, to confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.
  Smaller Form Factor
  • Compact design is smaller than the RPA Elite by 1/3 and includes all the same features
  Micro-Adjustable
  • MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
  Fingertip Positioning
  • Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
  Cable Management
  • Integrated cable management through top of mount without additional accessories
  Quick Release
  • Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)
  UPC: 841872119816
• CMSZ006 Speed-Connect Fixed Extension Column (Black) The CMSZ006 Speed-Connect Fixed Extension Column (Black) from Chief is fully threaded to help save installation time while maximizing security.
  • Includes an integrated port on one end for routing cables
  • Aluminum construction for easier installation - also saves on shipping costs
  • Threaded on both ends
  • 1.5" NPT compatible
  UPC: 841872122151
• CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White) The Chief CMS440 Speed-Connect Lightweight Suspended Ceiling Kit focuses on speed of installation. The Speed-Connect series was designed as an upgrade to the popular CMA series of ceiling mount accessories, integrating easy-to-use features that focus on saving time and maximizing security.The Speed-Connect ceiling kit includes a host of design innovations, including the WireVice Cable Suspension System for quick and easy tie-off, and the TwisTile Tile Cutter, used for piercing holes into your ceiling tile. This design also features a continuously adjustable mounting slot for infinite placement options, along with single and dual electrical outlet cutouts, and All-Points tamper-resistant hardware at the column connection point.
  • WireVice Cable Suspension System for quick and easy tie-off
  • TwisTile Ceiling Tile Cutter pierces a circular hole in your tile for column placement
  • Continuously-adjustable mounting slot for infinite placement options
  • Single and dual electrical outlet cutouts
  • All-Points Security System with exclusive locking hardware at column connection point to protect against theft
  • Fits 24" (or 600mm) wide ceiling tile grids
  • 1.5" NPT Compatible
  UPC: 841872076102

• Interface Bracket

• Security Kit

• Nuts, Screws and Hardware

• 10 Year Manufacturer's Warranty

• 10-Year Warranty

• 4 x 25' Flexible Cables

• 4 x Wood Eyebolts

• 4 x Concrete Anchors

• Chrome Trim Ring

• Limited 10-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RSMAUS Mini RPA Elite Projector Mount (White)

  Compatibility	To confirm the compatibility of this mount with your projector, visit Chief's
  Adjustments	Roll: +/-3° Pitch: +/-15° Yaw: 360°
  Construction	Steel
  Dimensions (HxWxD)	1.83 x 4.37 x 5.07" (4.6 x 11.1 x 12.9 cm)
  Weight Capacity	25 lbs (11.3 kg)
  Color	White

  Box Dimensions (LxWxH)	10.4 x 10.3 x 4.6"

• CMSZ006 Speed-Connect Fixed Extension Column (Black)

  Construction	Aluminum
  Finish	Black
  Length	6" (152.4mm)
  Weight Capacity	500 lbs (227kg)

  Box Dimensions (LxWxH)	9.0 x 7.4 x 2.6"

• CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White)

  Construction	Aluminum, white
  Weight Capacity	50 lb (18.66 kg)
  Dimensions	8.0 x 23.4 x 1.3" (20.3 x 59.4 x 3.3 cm)
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	27.25 x 9.25 x 1.75"
