User Manual for Chief KITPB003 Projector Ceiling Mount Kit Click to enlarge the picture
Contents of the user manual for the Chief KITPB003 Projector Ceiling Mount Kit
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief KITPB003 Projector Ceiling Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

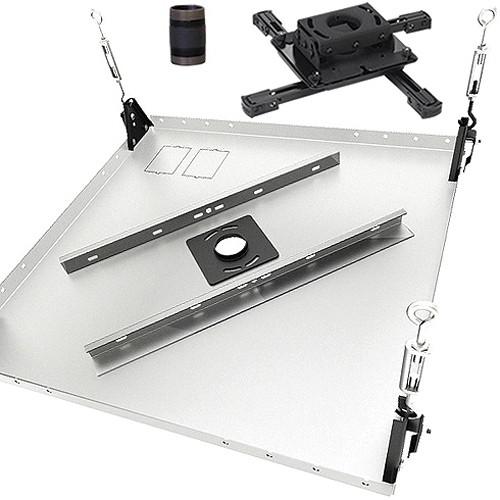

Product description The Chief KITPB003 Projector Ceiling Mount Kit, in black, allows for neat and clean installation of up to 50 lb projectors. The kit includes an inverted ceiling mount, an extension column for lowering the projector an additional 3", and a tile replacement plate designed to either fully replace 2 x 2' suspended ceiling tiles or sit above the suspended ceiling while secured to the structure above with four tie wires. - RSMD000 Mini RPA Projector Mount (Silver) The Chief RSAUS Mini RPA Projector Mount builds on the foundation of the highly successful RPA mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package.Although 33% smaller than the RPA, this mini mount retains much of the functionality of the larger mount, with independent roll, pitch and yaw adjustments for quick and precise projector registration and a 25 lb capacity. Shipped fully assembled, the RSAUS is also quick to connect or disconnect for lamp or filter changes while maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected. The RSAUS offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns. The included universal fits most projectors.To confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.
- Smaller Form Factor
- Compact design is smaller than the RPA Elite by 1/3 and includes all the same features.
- Independent Adjustments
- Independent roll, pitch and yaw for quick and precise projector registration.
- Quick Release
- Quick connect/disconnect with convenient lamp and filter access on most projectors. Disconnecting maintains registration and doesn't affect preset adjustments.
- Security
- All-Points Security steel-into-steel locking hardware at all connection points protects against theft. (No key or lock)
- Installation
- Multiple installation options including: flush mount to ceiling, use 0.25" threaded rods, or use a 1.5" NPT column.
- Fits Most Projectors
- Now includes new universal interface to further reduce installation time.
UPC: 841872119748 - CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White) The Chief CMS440 Speed-Connect Lightweight Suspended Ceiling Kit focuses on speed of installation. The Speed-Connect series was designed as an upgrade to the popular CMA series of ceiling mount accessories, integrating easy-to-use features that focus on saving time and maximizing security.The Speed-Connect ceiling kit includes a host of design innovations, including the WireVice Cable Suspension System for quick and easy tie-off, and the TwisTile Tile Cutter, used for piercing holes into your ceiling tile. This design also features a continuously adjustable mounting slot for infinite placement options, along with single and dual electrical outlet cutouts, and All-Points tamper-resistant hardware at the column connection point.
- WireVice Cable Suspension System for quick and easy tie-off
- TwisTile Ceiling Tile Cutter pierces a circular hole in your tile for column placement
- Continuously-adjustable mounting slot for infinite placement options
- Single and dual electrical outlet cutouts
- All-Points Security System with exclusive locking hardware at column connection point to protect against theft
- Fits 24" (or 600mm) wide ceiling tile grids
UPC: 841872076102 - CMS-003 3" Speed-Connect Fixed Extension Column (Black) Use the black Chief CMS-060 Speed-Connect Fixed Extension Column to lower your projector or flat panel display an additional 3" from the ceiling. Use in combination with any 1.5" NPT ceiling plate or other accessory. Consists of 1.5" NPT column threaded on both ends. Aluminum construction makes installation easy and saves on shipping costs. Weight capacity is 500 lb.
- Made of aluminum for easy installation and maximum strength
- Weight capacity is 500 lbs
UPC: 841872092591 In the Box Bundle Items RSMD000 Mini RPA Projector Mount (Silver) frfqscfsdufyrqwxvb - 10 Year Manufacturer's Warranty
CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White) CMS-003 3" Speed-Connect Fixed Extension Column (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief KITPB003 Projector Ceiling Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RSMD000 Mini RPA Projector Mount (Silver)
| Compatibility | To confirm the compatibility of this mount with your projector, visit Chief's | | Adjustments | Roll: +/-3°
Pitch: +/-20°
Yaw: 360° | | Construction | Steel | | Dimensions (HxWxD) | 1.44 x 4.38 x 4.39" (3.7 x 11.1 x 11.2 cm) | | Weight Capacity | 25 lbs (11.3 kg) | | Color | Silver | | | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 4.0" | - CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White)
| Construction | Aluminum, white | | Weight Capacity | 50 lb (18.66 kg) | | Dimensions | 8.0 x 23.4 x 1.3" (20.3 x 59.4 x 3.3 cm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 27.25 x 9.25 x 1.75" | - CMS-003 3" Speed-Connect Fixed Extension Column (Black)
| Construction | Aluminum | | Finish | Black | | Length | 3" | | Adjustments | Fixed column | | Weight | Capacity: 500 lb (226.8 kg) | | | | Box Dimensions (LxWxH) | 4.5 x 2.2 x 1.5" |
