Product description

The Chief KITPF018024 Universal Ceiling Projector Mount Kit is a projector mount kit that is based on the RPA Universal ceiling mount. It also includes the CMA-018024 18-24" adjustable extension column and the CMA-101 5" ceiling plate. RPA models features the All-Points Security System for secure installations in offices and schools. This mount offers quick installation and a low profile design. This RPAU Universal mount was designed to be compatible with as many projectors as possible. To confirm the compatibility of this mount with your projector, please visit Chief's Cross Reference Listzscuudetdxzvyxfcwuxyu.
    Low-Profile
  • This aesthetic design is perfect for offices, schools and homes.
    Quick Projector Disconnect/Reconnect
  • This features always maintains projector registration and does not affect pre-set adjustments. It also gives the user lamp and filter access on most projector models.
    Adjustments
  • Independent roll, pitch, and yaw adjustments make it easy to precisely register the projector.
    All Points Security System
  • Locking hardware that locks equipment at all key connection points to protect against theft.
    Cable Management
  • Allows cables to be routed through the top of the mount without additional accessories.
    Mounting Accessories
  • Compatible with a large assortment of accessories to easily overcome a variety of installation challenges.
UPC: 841872094076 In the Box Chief KITPF018024 Universal Ceiling Projector Mount Kit

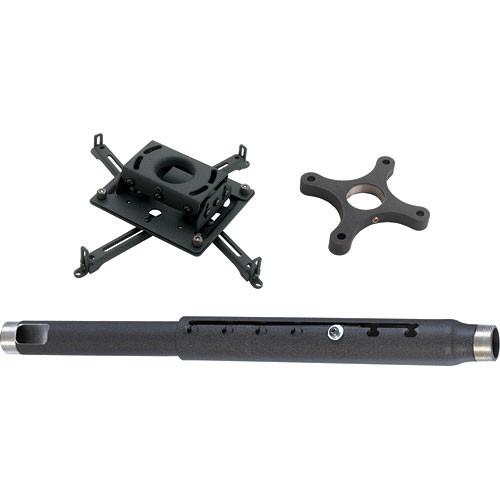

  • RPAU Inverted LCD/DLP Projector Ceiling Mount (Black)
  • CMA-018024 18-24" Adjustable Extension Column
  • 5" Designer Ceiling Plate with 1-1/2" NPT Opening (Black)
  • Ten-Year Warranty
