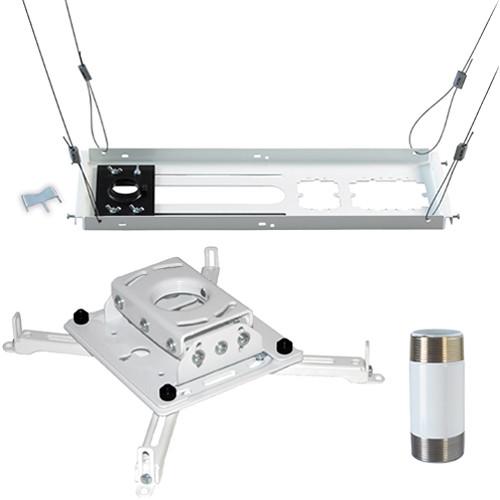

User Manual for Chief KITPS006W Ceiling Mount Kit for Projectors

• Product category: Projector Mounts Chief
• Brand: Chief
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Chief Projector Mounts

Product description

• RPAUW Inverted LCD/DLP Projector Ceiling Mount (White) An inverted ceiling mount with the exclusive All-Points security system, the Chief RPAUW is the top-selling projector mount in the industry. Ideal for use offices, schools and homes, it is supplied with everything needed for quick installation, a low-profile look and easy projector maintenance. It features a solid steel design, integrated cable management, and independent roll, pitch and yaw. It offers easy projector maintenance, quick projector connect/disconnect, and adjustable mounting legs and feet. The patented All-Points is an integrated security system that uses security hardware at all key connection points to protect projectors from theft. Steel-into-steel construction makes All-Points more effective than other integrated security systems. The RPAUW includes a universal interface bracket, making it compatible with 95% of inverted projectors on the market. This makes it perfect for installers who are uncertain of a customer's projector type. However, if you want to confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.fzcqedrtatdxsswexbzvbqvvcvsuzarsrb

  Easy Installation

  • Independent Roll (+/-4°), Pitch (+/-25°) and Yaw (360°) adjustments make it easy to quickly and precisely register the projector.
  • Three ceiling mounting methods: Flush mount, optional 1/4" threaded rod, or with an optional 1.5" NPT Threaded Extension Column.
  • Compatible with a large assortment of accessories to easily overcome a variety of installation challenges.
  • Allows lateral shift when using the optional LSB-100 Lateral Shift Accessory. The LSB-100 allows the projector to be shifted 3" right or left of the installation spot (5.75" on projectors under 15 lb). The LSB-100 is also used to accommodate different lens placement when projectors are replaced in existing installations. Maintains quick disconnect feature and includes All-Points Security System hardware.


  Security and Reliability

  • Heavy gauge solid steel design for secure mounting.
  • UL-listed for proven strength, supports projector systems up to 50 lbs.
  • Includes the All-Points Security System - exclusive locking hardware to protect against theft. Optional to use, the system locks the projector and mount with security hardware at all key connection points: Roll, Pitch and Yaw adjustments; bracket-to-projector; and mount-to-bracket.
  • Compatible with Chief's PG-1A and PG-2A Projector Guard security cages.
  • Backed by a 10-year warranty to ensure that you are receiving the best quality product.


  Conveniences

  • Low-profile design allows the RPAU to be flush mounted without additional accessories.
  • Ships fully assembled with everything you need for installation in one box.
  • Custom designed brackets allow quick projector disconnect without loss of registration, doesn't affect pre-set adjustments.
  • Quick projector reconnect with convenient lamp and filter access.
  • Integrated cable management allows cables to be routed through the top of the mount without additional accessories.
  • Easy to maintain, it allows easy replacement of filter or bulb; offers proper ventilation; and lets you adjust the contour of the mount for the lowest profile possible.
  UPC: 841872045405
• CMS-006W 6" Speed-Connect Fixed Extension Column (White) Use the white Chief CMS-060 Speed-Connect Fixed Extension Column to lower your projector or flat panel display an additional 6" from the ceiling. Use in combination with any 1.5" NPT ceiling plate or other accessory. Consists of 1.5" NPT column threaded on both ends. Aluminum construction makes installation easy and saves on shipping costs. Weight capacity is 500 lb.
  • Made of aluminum for easy installation and maximum strength
  • Weight capacity is 500 lbs
  UPC: 841872092638
• CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White) The Chief CMS440 Speed-Connect Lightweight Suspended Ceiling Kit focuses on speed of installation. The Speed-Connect series was designed as an upgrade to the popular CMA series of ceiling mount accessories, integrating easy-to-use features that focus on saving time and maximizing security.The Speed-Connect ceiling kit includes a host of design innovations, including the WireVice Cable Suspension System for quick and easy tie-off, and the TwisTile Tile Cutter, used for piercing holes into your ceiling tile. This design also features a continuously adjustable mounting slot for infinite placement options, along with single and dual electrical outlet cutouts, and All-Points tamper-resistant hardware at the column connection point.
  • WireVice Cable Suspension System for quick and easy tie-off
  • TwisTile Ceiling Tile Cutter pierces a circular hole in your tile for column placement
  • Continuously-adjustable mounting slot for infinite placement options
  • Single and dual electrical outlet cutouts
  • All-Points Security System with exclusive locking hardware at column connection point to protect against theft
  • Fits 24" (or 600mm) wide ceiling tile grids
  • 1.5" NPT Compatible
  UPC: 841872076102

• Ceiling Bracket

• Joint Bracket

• Plate, Adjustment

• Self-Tapping, Pan Head, 10-24 x 1/2" Screws with Washer (12)

• 5/16" Screw Set

• 10-Year Warranty

• 5/16 x 5/8" Screw

• 5/16" Lock Washer

• 5/16" Flat Washer

• 5/16 x 1/4" Nut (2)

• 5/32" Allen Wrench

• 5/16 x 1/4" Lock Washer

• 3/16" Allen Wrench

• 10-Year Warranty

• 4 x 25' Flexible Cables

• 4 x Wood Eyebolts

• 4 x Concrete Anchors

• Chrome Trim Ring

• Limited 10-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RPAUW Inverted LCD/DLP Projector Ceiling Mount (White)

  Depth From Mounting Source	Not Specified by Manufacturer; The RPAUW adds approximately 2.5" (64mm) to the installation
  Max Equipment Size	50 lbs (22.7kg)
  Adjustments	Roll Adjustment: +/- 4° adjustment up or down Loosen screw, adjust mount and tighten screw to hold adjustment Pitch Adjustment: +/- 25° adjustment on each side of the mount. Loosen screw, adjust mount and tighten screw to hold adjustment. Full range of pitch in a flush mount installation. Yaw Adjustment: 360° by turning the mount on the threaded column and securing in place with set screw. 12° yaw possible on flush mount using slots in top of RPAUW.

  Construction	Steel, Black
  Dimensions	6.25 x 1.75 x 5.5" (159 x 44 x 140mm) Height does not include interface bracket
  Weight Capacity	50 lbs (22.7kg) Each mount is designed to support the weight of the projector model(s) specified; However, your ceiling must hold at least five times the weight of your installation
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	10.5 x 10.3 x 4.55"

• CMS-006W 6" Speed-Connect Fixed Extension Column (White)

  Construction	Aluminum
  Finish	White
  Length	6"
  Adjustments	Fixed column
  Weight	Capacity: 500 lb (226.8 kg)

  Box Dimensions (LxWxH)	9.05 x 2.3 x 2.25"

• CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White)

  Construction	Aluminum, white
  Weight Capacity	50 lb (18.66 kg)
  Dimensions	8.0 x 23.4 x 1.3" (20.3 x 59.4 x 3.3 cm)
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	27.25 x 9.25 x 1.75"
