User Manual for Chief KONTOUR K3 Grommet Mounted 3x1 2x1 Array Click to enlarge the picture
Contents of the user manual for the Chief KONTOUR K3 Grommet Mounted 3x1
- Product category: Monitor Table Top Stand Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Table Top Stand Mounts
 |
User manual for the Chief KONTOUR K3 Grommet Mounted 3x1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

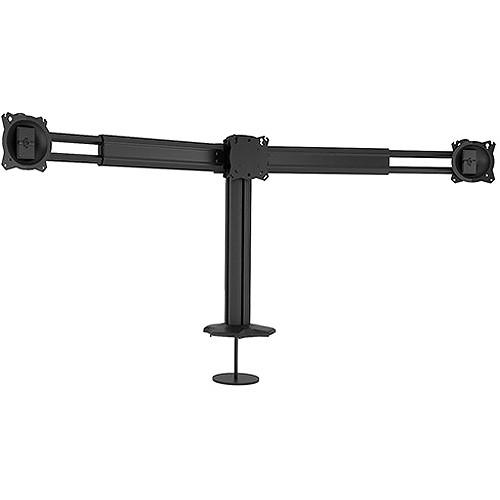

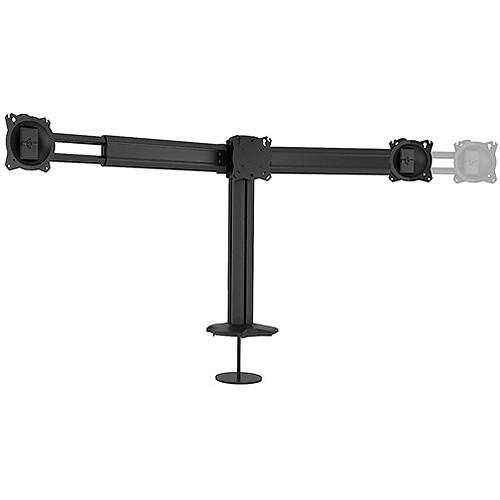

Product description The black Chief KONTOUR K3 Grommet Mounted 3x1 / 2x1 Array, with its telescoping array arms, can accommodate up to three 27" monitors in a triple-monitor configuration or up to two 30" monitors when configured for dual monitors. It is elegantly designed and provides a robust solution for call centers, security desks, IT, health care, control rooms, and other multi-monitor settings. - Telescoping rails add 8" per arm of lateral adjustment for larger monitors
- Portable Centris heads can be easily moved from the telescoping rail to the array arm for better lateral adjustment
- Heads on the rails feature Centris technology that provides a smooth 12° tilt in all directions
- Center column head features 10° of tilt up and down
- Independent height adjustment of each arm
- Height adjustment of the center column head
- Array arms can be adjusted from flat up to a 15° angle towards the user
- Teardrop hole pattern makes mounting monitors quick and easy
- VESA 75 x 75 mm and 100 x 100 mm compatible
- Tool-free, integrated cable management
UPC: 841872157047 In the Box Chief KONTOUR K3 Grommet Mounted 3x1 / 2x1 Array (Black) Installation Hardware Array Assembly Cable Management Cover Column Cap Base Cover Grommet Screw and Base Grommet Plate Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief KONTOUR K3 Grommet Mounted 3x1 2x1 Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief K3G310B Specs | Desktop Thickness Range | 0.5 to 5.0" (13.0 to 127.0 mm) | | Grommet Hole Size Range | 0.38 to 3.50" (10.00 to 89.00 mm) | | Mounting Method | Grommet-mount | | Mounting Pattern Compatibility (Universal Version) | 75 x 75 mm, 100 x 100 mm | | Number of Monitors | 2 or 3 | | Orientation | Landscape & Portrait | | Solution Type | Universal | | Tilt | Heads on Rails: 12°
Head on Column: 10° | | Typical Screen Sizes | 2x1: Up to 30" (76.2 cm)
3x1: Up to 27" (69 cm) | | Overall Dimensions (H x W x D) | 20.87 x 40.17 x 7.03" (530.00 x 102.00 x 178.50 mm) | | Weight Capacity | 15.0 lb (6.8 kg) per monitor | | | | Package Weight | 25.4 lb | | Box Dimensions (LxWxH) | 44.25 x 25.0 x 4.75" |
