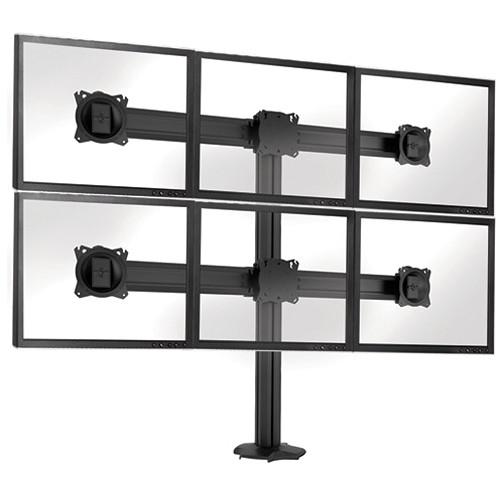

User Manual for Chief Kontour K3 Grommet Mounted 3x2 Array Click to enlarge the picture
Contents of the user manual for the Chief Kontour K3 Grommet Mounted 3x2
- Product category: Monitor Table Top Stand Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Table Top Stand Mounts
|
User manual for the Chief Kontour K3 Grommet Mounted 3x2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The silver Kontour K3 Grommet Mounted 3x2 Array from Chief can be used to mount six 27" monitors or four 30" monitors in an arrangement of 2x2 or 3x2, respectively. The mount heads and arms are all easily adjustable for accommodating larger monitors and various viewing angles. Designed for easy installation, the mount comes largely pre-assembled and features teardrop mounting holes and VESA 75x75mm and 100x100mm mounting patterns. - Telescoping arm rails add 8" / 20.3 cm per arm of lateral adjustment for larger monitors
- Heads offer 12° fingertip tilt in all directions
- Centris heads can be moved from the telescoping rails to the array arms for lateral adjustment creating simple horizontal alignment
- Center column heads feature 10° of vertical tilt
- Independent height adjustment of each arm and center head along the column for fine-tuning of vertical screen alignment
- Array arms can be adjusted from flat up to a 15° angle toward the user for optimization of viewing angles
- Teardrop hole pattern for monitor mounting
- VESA 75x75mm and 100x100mm compatible
- Tool-free integrated cable management
- Ships largely pre-assembled
UPC: 841872161693 In the Box Chief Kontour K3 Grommet Mounted 3x2 Array (Silver) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Kontour K3 Grommet Mounted 3x2 Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief K3G320S Specs | Desktop Thickness Range | 0.5 to 5.0" / 1.3 to 12.7 cm | | Grommet Hole Size Range | 0.4 to 3.5" / 1.0 to 8.9 cm | | Mounting Method | Grommet Mount | | Mounting Pattern Compatibility (Universal Version) | 75 x 75 mm, 100 x 100 mm | | Number of Monitors Supported | 6 x 27" / 68.6 cm (diagonal) or 4 x 30" / 76.2 cm (diagonal) | | Orientation | Portrait, landscape | | Tilt | Displays: ±12° in all directions
Center Column Head: 10° vertical
Array Arms: 15° vertical | | TV Width Range | 2x2: 51.2" / 130.1 cm (max)
3x2: 25.6" / 65.0 cm (max) | | Typical Screen Sizes | 2x2: Up to 30.0" / 76.2 cm diagonal
3x2: Up to 28.0" / 71.1 cm diagonal | | Weight Capacity | 15.0 lb / 6.8 kg per monitor | | Weight (Approximate) | 36.0 lb / 16.3 kg |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
