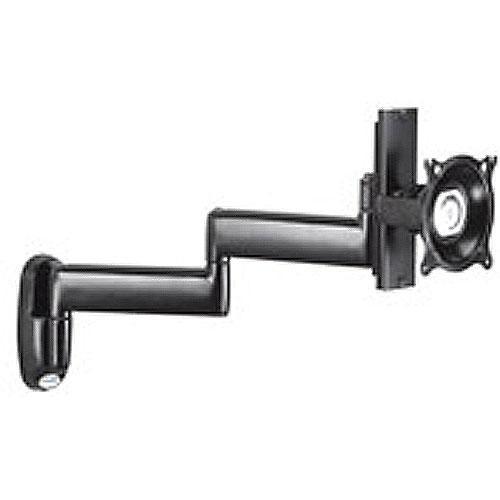

User Manual for Chief KWD130B Height-Adjustable Dual Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief KWD130B Height-Adjustable Dual Swing Arm
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief KWD130B Height-Adjustable Dual Swing Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief KWD130 Height-Adjustable Dual Swing Arm Wall Mount provides manual height adjustments, so small flat panel displays from 10-30" (up to 30 lbs.) can be placed in the appropriate viewing height. For convenience, the mount folds in close to the wall for a low profile appearance. Comes with a 10-year warranty. To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Easy Installation - Comes assembled for easy installation.
- VESA-compliant (75 x 75mm or 100mm x100mm). Interface brackets are available for non-VESA compliant displays.
- Easy to install. Simply attach wall plate to single stud. Then slide mount onto plate. Attach display to mount. (Teardrop hole patterns makes mounting the screen quick and easy). Secure hardware.
- Optional OFB office furniture interface brackets available for most office systems.
- Built-in cable management for a clean installation. Simply route cables through the predefinded pathway inside the arms.
Viewing Conveniences - Patented Centris technology provides smooth, fingertip tilt in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust.
- Offers 4.75" (121 mm) of height adjustment to achieve the proper viewing height.
- Provides maximum range of motion from low profile to full extension (up to 18.6").
- Portrait and landscape rotation and side-to-side pivot (pivots 180° at wall plate).
- Independently adjustable tension at pivot points provides customized control. Tension can be optimized for touchscreen use.
- Sleek, attractive design hides all hardware. Folds in close (5.06")to the wall for a low-profile appearance.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
UPC: 841872106281 In the Box Chief KWD130B Height-Adjustable Dual Swing Arm Wall Mount (Black) Wall Bracket Screw, Phillips Pan Sheet Metal, #10 x 2-1/2" (2) Washer, Flat Machine Screw, #10 (2) Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief KWD130B Height-Adjustable Dual Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief KWD130B Specs | | | Supported Weight Capacity | 30 lb / 13.6 kg | | Mounting-Hole Pattern | 75 x 75 to 100 x 100 mm | | Number of Displays Supported | 1 | | | | Vertical Adjustment | 4.8" / 12.1 cm | | Screen Pivot (Arm) | -180 to +180
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
