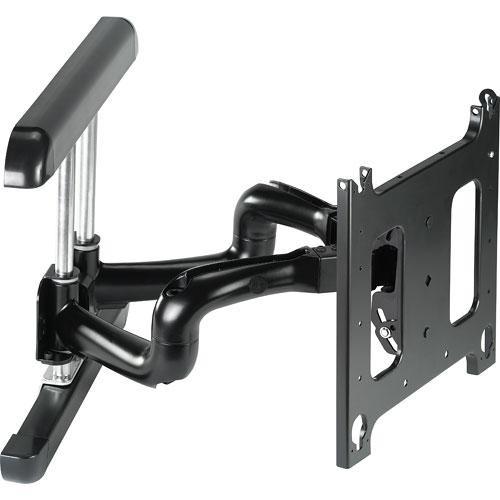

User Manual for Chief Large Flat Panel Swing Arm Wall Display Mount, 25" Extension Click to enlarge the picture
Contents of the user manual for the Chief Large Flat Panel Swing Arm
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief Large Flat Panel Swing Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description View large flat panel displays up to 71" or 200 lbs. from any angle with the black PNRUB Large Flat Panel Swing Arm Wall Display Mount, from Chief. Rugged, versatile, and installer-friendly, the PNRUB is designed for installations that require a solid dual swing arm with shorter extension. The dual arms extend up to 25" from the wall, swivels up to 90° left or right of center, and does not include interface bracket (adds 0.5 - 1.5").The PNRUB was designed for fast installation and includes a universal interface bracket making it compatible with hundreds of flat panel displays from 42-71" or 200 lbs. However, you should check to see that this mount will work with your specific screen model. - Mount comes complete with all required hardware for installation
Fast Installation - Wall bracket can be placed on wall using convenient mounting guides for a hassle-free installation.
- The PNRUB ships with the support posts for the dual arms centered in the mount. The support posts can be moved laterally right or left of center to readily accommodate sites with limited wall space. The mount also has post-installation height adjustment and tilt adjustment that spans 5° up and 15° down for installation flexibility.
- ClickConnect mounting system provides easy connect/disconnect without any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft.
- Q-Latch Mounting System simplifies installation. It uses a lockable latch to safely secure display to the mount. Provides quick display connect/disconnect and is compatible with multiple accessories.
- Integrated lateral shift up to 9", 4.5" or left/right (22.9 and 11.4 cm, respectively)
- Built-in cable management channels inside the arms provides quick and easy routing of cables.
- Post-installation height adjustment up to 1" (25.4 mm) for installation flexibility.
- Wall protection rubber stops protect the wall when arms are collapsed.
Viewer Friendly
- Extends 25" (63.5 cm) from the wall, only 3-1/4" (8.26 cm) deep when collapsed.
- Independently adjustable tension at pivot points provides customized control.
- Centris Select tilt mechanism lets you select the suitable tension for your screen's center of gravity to achieve smooth fingertip tilt. Screen angle stays set until you decide to re-adjust.
- Swivel up to 90° left or right (depending upon screen size).
Proven Quality
- Designed with cast components and steel uprights to securely hold displays up to 200 lbs.
- Mount goes through a series of rigorous tests to ensure a safe and secure installation.
- Backed by a 10-year warranty.
UPC: 841872051567 In the Box Chief Large Flat Panel Swing Arm Wall Display Mount, 25" Extension (Black) PNR-UB Wall Mount 2 x Cover Plates 4 x End Caps 12 x Tie-wraps Wrench, Adjustment Bar, Adjustment Limited 10-Year Warranty Brochure PDF 213.1kbuxzxbubqxrafbxsatf Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Large Flat Panel Swing Arm Wall Display Mount, 25" Extension in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PNR-U Specs | | | Supported Screen Sizes | Up to 71" / 180.3 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Mounting-Hole Pattern | 200 x 200 to 800 x 400 mm | | Number of Displays Supported | 1 | | | | Lateral Shift | 9.0" / 22.9 cm | | Orientation | Landscape, Portrait | | | | Construction Material | Steel | | Distance from Mounting Surface | 3.3 to 25.00" / 8.3 to 63.5 cm | | Dimensions | 21.2 x 27.1 x 3.3" / 53.8 x 68.7 x 8.4 cm | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 43.0 x 25.75 x 6.25" |
