User Manual for Chief Large Flat Panel Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief Large Flat Panel Swing Arm
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
 |
User manual for the Chief Large Flat Panel Swing Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

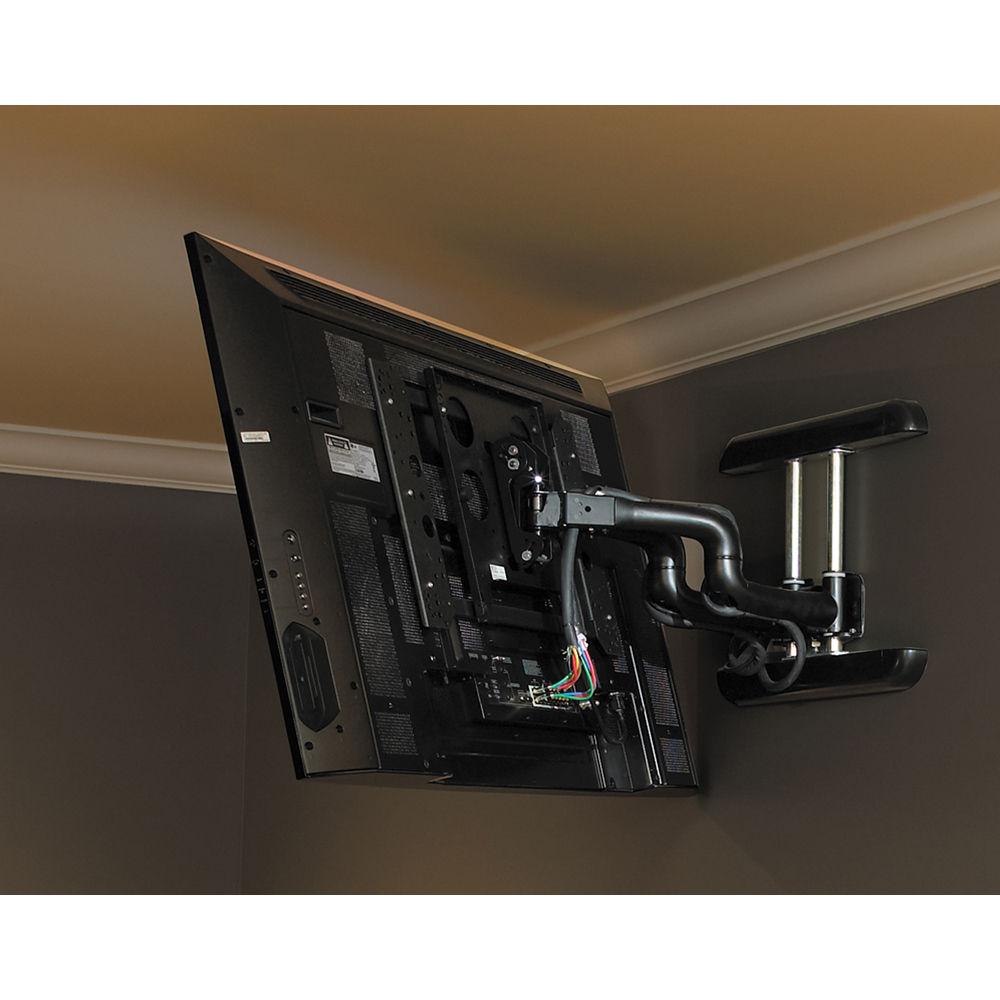

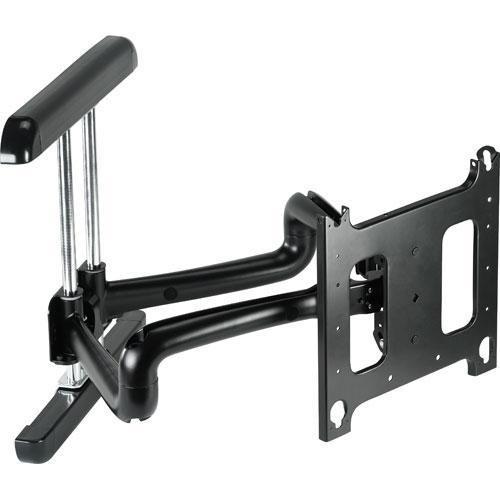

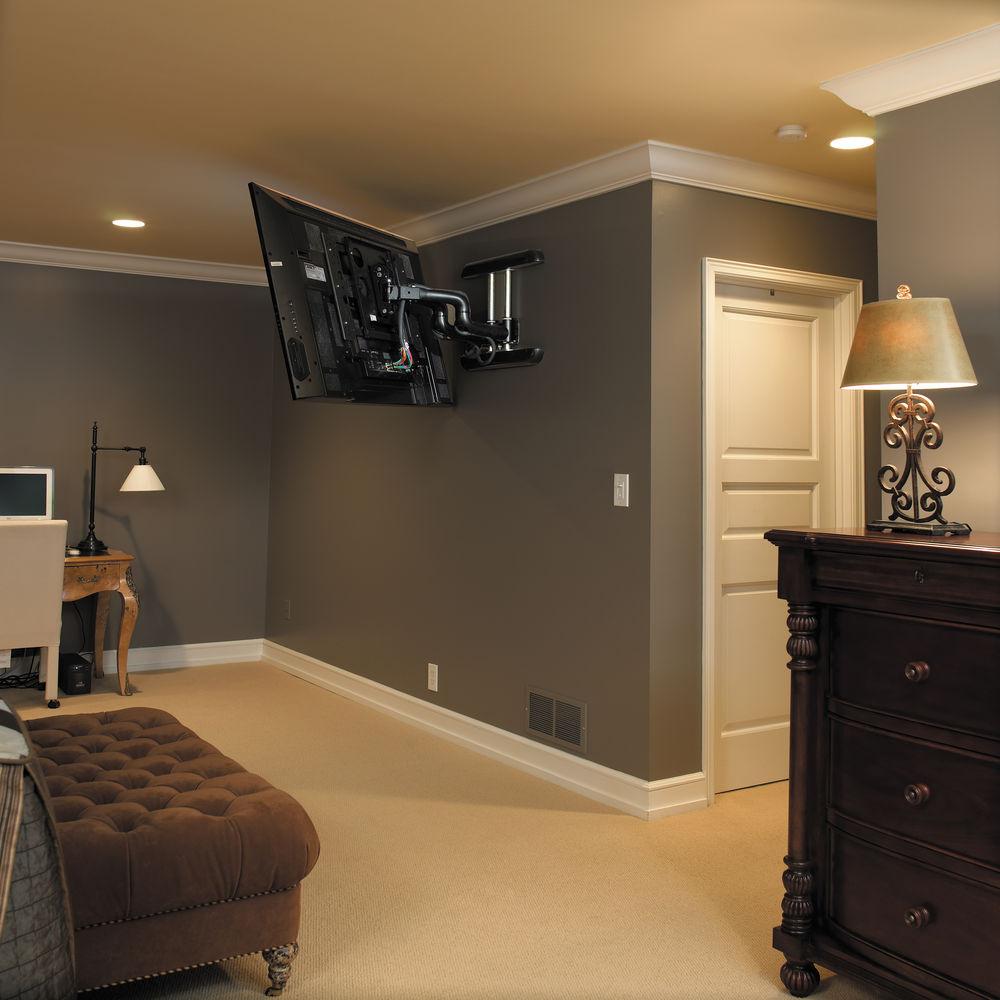

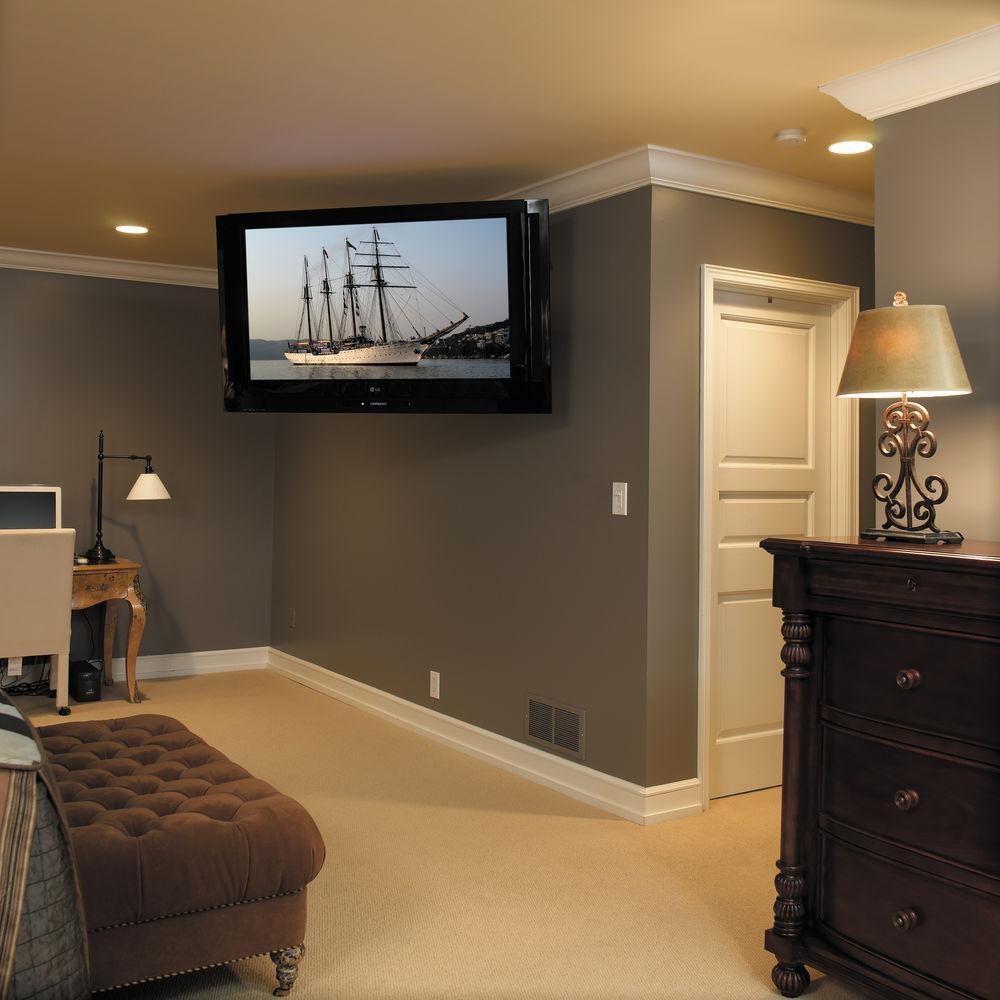

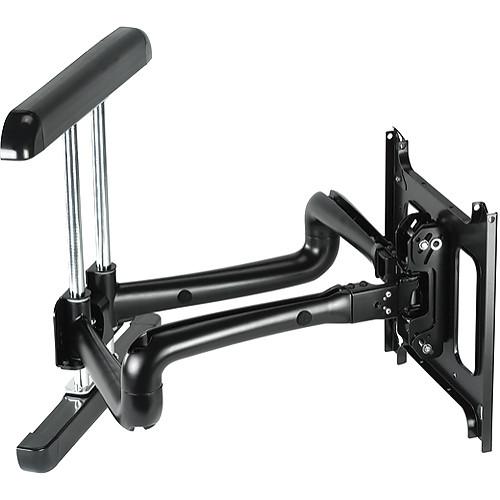

Product description View large flat panel displays up to 71" or 200 lbs. from any angle with the Chief PDR-UB Universal Dual Swing-Arm Wall Mount. This custom mounting solution swings out and extends up to 37" from the wall, collapsing to just 2-7/8" when in home position. The PDR-UB is wall-mounted, rugged, versatile, and installer-friendly. It has vertical, lateral and rotational tilt tension adjustments. Flat panel screens can be mounted in either the landscape or portrait position.The PDR-UB is designed for fast installation. After drawing the plumb line and installing the two top lag bolts into the dual wall studs, the installer hangs the mount on its top bracket and installs two lag bolts in the bottom bracket. Next, the installer makes the height adjustment, installs the plasma screen, and routes the power/audio/video cables down the built-in path in the swing-out arms, completing the installation process.The PDR-UB includes a universal interface bracket making it compatible with most flat panel displays from 42 to 71" or 200 lbs. However, if you want to confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Fast Installation - Wall bracket can be placed on wall using convenient mount guides for a hassle-free installation
- The PDR-UB is shipped with the support posts for the dual arms centered in the mount. The support posts can be moved right or left of center to readily accommodate sites with limited wall space. The mount also has post-installation height adjustment up to 2" and pitch adjustment that spans 5° up and 15° down for installation flexibility.
- No tools necessary for adjustments
Exclusive ClickConnect mounting system provides easy connect/disconnect without requring any tools
An audible click confirms panels are locked in place
Add a padlock to protect the display from theft - Q-Latch Mounting System simplifies installation with a lockable latch that safely secures the display to the mount, provides quick connect/disconnect of the display and is compatible with multiple accessories
- Integrated lateral shift up to 9" (4.5" left/right) of 16" stud system without disassembly
- Built-in cable management channels inside the arms provides quick and easy routing of cables
- Post-installation height adjustment up to 1.25" (7.62 cm) for ultimate installation flexibility
- Wall protection rubber stops protect the wall when arms are collapsed
Viewer Friendly
- Extends 37" from the wall, only 2-7/8" deep when collapsed (not including interface bracket)
- Independently adjustable tension at pivot points provides customized control

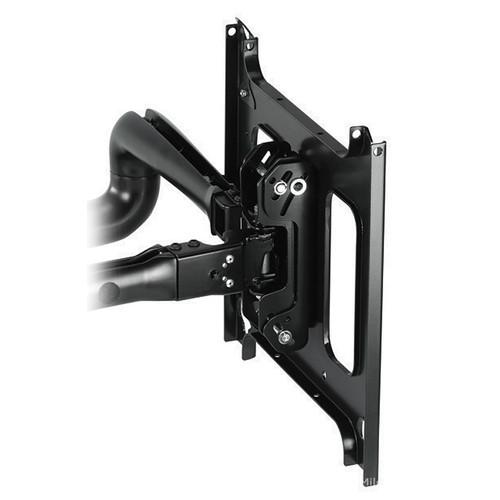

- Exclusive Centris Select tilt mechanism lets you select the perfect tension for your screen's center of gravity to achieve smooth fingertip tilt and screen angle stays set until you decide to re-adjust
- Swivel up to 90° left or right (depending upon screen size)
Proven Quality
- Solid construction for ultimate strength / designed with cast components and steel uprights to securely hold displays up to 200 lbs
- Every mount goes through a series of rigorous tests to ensure a safe and secure solution

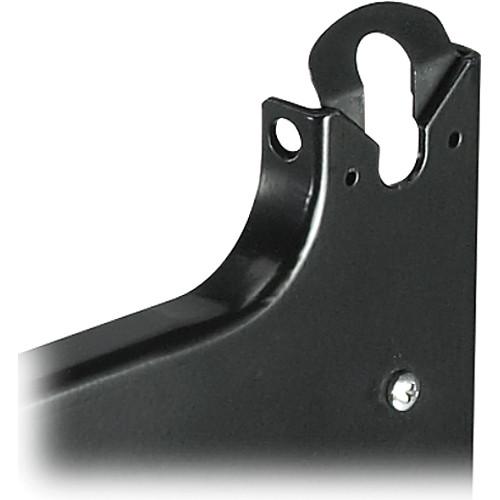

UPC: 841872051659 In the Box Chief Large Flat Panel Swing Arm Wall Mount (Black) PSBUB Universal Flat Panel Interface Bracket (Black) yucyyzuzatsydxducwdarrqbu Cover Plates (2) End Caps (4) Tie-Wraps (12) Lag Bolts, 5/16" x 2.5" (4) Flat Washers, 5/16" (4) Wrench, Adjustment Bar, Adjustment 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Large Flat Panel Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PDR-U Specs | | | Supported Screen Sizes | Up to 71" / 180.3 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Mounting-Hole Pattern | 200 x 200 to 800 x 400 mm | | Number of Displays Supported | 1 | | | | Lateral Shift | 9.0" / 22.9 cm | | Orientation | Landscape, Portrait | | | | Construction Material | Steel | | Distance from Mounting Surface | 3.0 to 37.00" / 7.6 to 94.00 cm | | Dimensions | 22 x 39.5 x 3.4" / 56 x 100.3 x 8.6 cm | | | | Package Weight | 79.5 lb | | Box Dimensions (LxWxH) | 42.75 x 26.5 x 7.5" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
