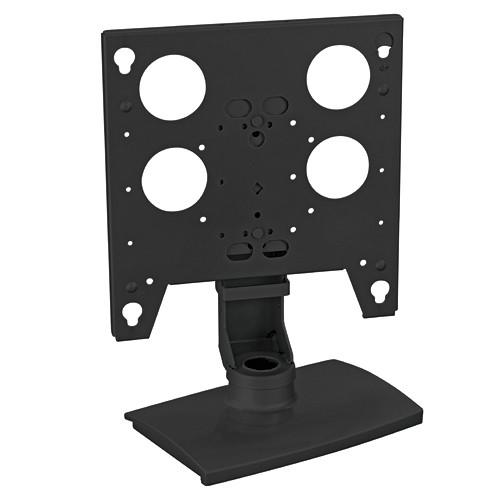

User Manual for Chief Large Flat Panel Swivel Table Stand Click to enlarge the picture
Contents of the user manual for the Chief Large Flat Panel Swivel Table
- Product category: Monitor Table Top Stand Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Table Top Stand Mounts
|
User manual for the Chief Large Flat Panel Swivel Table contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The silver Large Flat Panel Swivel Table Stand from Chief can hold 32 to 50” displays weighing up to 150 lb. It provides a wide variety of features for most tabletop installations of large flat panel TVs. - Smooth swivel with optional stops
- Exclusive ClickConnect mounting system provides simplified tool-less latching with an audible click
- Free standing with bolt down capability for permanent installations or security
- Height adjustment of 5" for different screen heights up to 32"
- Two cable management options for ease of installation
- Smooth finger-tip swivel up to 45° in either direction with optional stops at 15, 25, and 35°
- Allows post-installation leveling (roll)
- Stylish solution for residential, commercial, and business applications
In the Box Chief Large Flat Panel Swivel Table Stand (Silver) 2 x Interface Side Bracket 4 x 10-24 x 0.500 Button Head Cap Screw 4 x M6 x 20mm Phillips Head Screw 4 x Mounting Button - Tapped 4 x 0.74 x 0.25 x 0.25 Nylon Spacer 1/8" Allen Key Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Large Flat Panel Swivel Table Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PSS2409S Specs | Weight Capacity | 150 lb (68.kg) | | TV Height Range | 15.0 to 32.0" (38.1 to 81.3 cm) | | Typical Screen Sizes | 32.0 to 50.0" (81.3 to 127.0 cm) | | Manual Height Adjustment | 5.0" (12.7 cm) | | Mounting Method | Free Standing and Bolt-down | | Mounting Pattern Compatibility (Universal Version) | 200 x 200 to 862 x 517 mm | | Compatibility | To confirm the compatibility of this mount with your display, visit Chief's | | Orientation | Landscape | | Pivot | Up to 45° in either direction with optional stops at 15, 25, and 35° | | Solution Type | Custom | | Overall Dimensions (H x W x D) | 20.7 x 16.3 x 9.3" (52.6 x 41.3 x 23.6 cm) | | Width | Monitor: 16.27" (41.32 cm) Base: 14.25" (36.19 cm) | | Height | Total: 20.7 to 27.4" (52.5 x 69.5 cm) Base: 3.16" (8.02 cm) | | Depth | Monitor: 2.5" (6.3 cm) Base: 9.2" (23.3 cm) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
