User Manual for Chief Large Thinstall Dual Swing Arm Wall Mount Extension Click to enlarge the picture
Contents of the user manual for the Chief Large Thinstall Dual Swing Arm
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief Large Thinstall Dual Swing Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

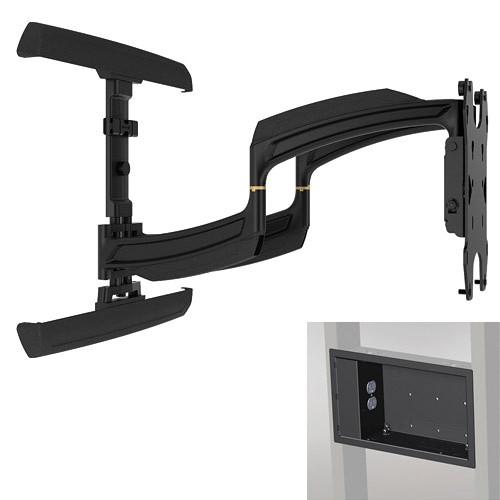

Product description The Chief Large Thinstall Dual Swing Arm Wall Mount Extension is a high-performance power accessory that integrates with Chief mounts and improves the audio and video performance of flat panels. This wall mount combines the TS525TU Large Thinstall Dual Swing Arm Wall Mount with the PAC521P In-Wall Box (with Power Outlet Conditioner).
The TS525TU Large Thinstall Dual Swing Arm Wall Mount is a lightweight, low-profile full-motion wall mount for 37 to 58" (93.98 to 147.32 cm) TVs. This mount easily installs with one person by mounting the top rail and sliding on the assembly.
The PAC521P In-Wall Box (with Power Outlet Conditioner) is a high-performance in-wall box power accessory that integrates with Chief mounts and improves the audio and video performance of flat panel displays. - Large Thinstall Dual Swing Arm Wall Mount Extension
-
- Replaces the need for an outlet
- Provides AC cleaning without loss of power
- Filter removes more noise than many full-sized line conditioners
- Non-volatile spike protection with LED protection indicator can potentially absorb thousands of spikes
- Non-current limiting design passes full power on a regular circuit
- Picture and sound available after protection stops until a replacement can be installed
- Rated for 2160 joules and 15 amps
- 1800 watt maximum
- Reduces common and differential mode noise by up to 40 dB
- TS525TU Large Thinstall Dual Swing Arm Wall Mount
-
- Ultra Low Profile: Sleek design collapses to 1.5" (38 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma
- Extends up to 25" (635 mm): Full extension maximizes viewing potential
- Centris Low-Profile Tilt: Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles
- Centerless Lateral Shift: Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
- Integrated Cable Management: Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
- Post Installation Height Adjustment: A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
- PAC521P In-Wall Box (with Power Outlet Conditioner)
-
- Combines 2 Chief products into one part number; a flat panel in-wall box with a high-performance power outlet conditioner
- Compatible with all FUSION products
- Power conditioner is invisible and recessed into the in-wall box
- Provides an organized, recessed space for excess cables
- Can be used with new construction or retro-fit installations
- Installs horizontally between 16” (40.6 cm) centers or vertically on a single stud
- Capacity for up to 4 single gang junction boxes and conduit, surge protectors and excess cables
- ETL Listed
In the Box Chief Large Thinstall Dual Swing Arm Wall Mount Extension TS525TU Thinstall Swing Arm Wall Mount for 37 to 58" TVs PAC521P In-Wall Box with Power Outlet Conditioner 10-Year Warranty (TS525TU Large Thinstall Dual Swing Arm Wall Mount) 1-Year Limited Warranty (PAC521P In-Wall Box (with Power Outlet Conditioner) Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Large Thinstall Dual Swing Arm Wall Mount Extension in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief TS525TUP Specs | | | Supported Screen Sizes | 37 to 58" / 94.0 to 147.3 cm | | Supported Weight Capacity | 125 lb / 56.7 kg | | Mounting-Hole Pattern | 100 x 100 to 800 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -15 to +15
