User Manual for Chief LCD Projector Stacking System - LCD-2TS Click to enlarge the picture
Contents of the user manual for the Chief LCD Projector Stacking System -
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief LCD Projector Stacking System - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

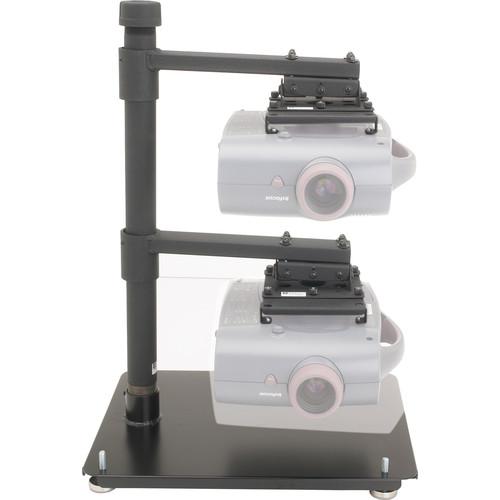

Product description Mount two (or more) LCD projectors on your tabletop using Chief's modular LCD-2TS LCD Projector Stacking System. Projectors can be installed inverted or non-inverted using separate RPA or UPC mounts, (sold seperately), that fix your model projector to the pipe section's arms. Stock unit includes two arms and a two-foot pipe section. When using an optional table stand, a three-foot pipe section is the maximum recommended height. Note: This stacking system requires an optional RPA or RPM projector mount to attach projectors - Dual Tabletop Mounting
- Stand it on a table using the included LCDB Base Plate that can be freestanding or bolted down. Projectors can be attached to arms in either inverted or non-inverted position, for convenient lamp and filter access.
- Expandable
- Add additional projectors or increase distance between them by purchasing longer CMA series NPT Extension Columns, up to six feet long. Note that tabletop installations should not exceed three feet in height.
- Flexible Positioning
- Projectors can face the same or opposing directions; vertical spacing is adjustable; arms rotate a full 360° individual roll, pitch, and yaw tweaks are possible for each projector.
- Easy Disconnect/Reconnect
- Projectors can be quickly detached from arms for servicing, without disturbing the current registration angle upon disconnecting or reconnecting.
- Positive Registration Lock
- Projector may be removed without losing projector mount registration.
- Dual Availability
- Product is available as complete systems or modular components.
- Adaptable
- The stacker accommodates projectors up to 18 inches wide.
UPC: 841872002200 In the Box Chief LCD Projector Stacking System - LCD-2TS Base Plate with Leveling Feet 2 x Projector Arms Two-foot Pipe Section with NPT 1.5" diameter 5 x Set Screws 8 x Flatwashers 8 x Carriage Bolts 8 x Acorn Nuts 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief LCD Projector Stacking System - LCD-2TS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCD2TS Specs | | | Roll | +/- 4° | | Pitch | +/- 25° | | Yaw | +/- 12° | | | | Tabletop To Center Of First Lens | Adjustable within dimensions | | Center To Center | Adjustable within dimensions | | | | Adjustable | Yes, height only | | Dimensions | Not Specified by Manufacturer | | | | Tier | Two | | Construction | Metal | | Color | Black | | Dimensions | 24.0 x 20.0 x 16" (61.0 x 35.1 x 18.3 cm) | | Weight Capacity | 100.0 lb (45.4 kg) | | Weight | 25.0 lbs (6.8 kg) | | Warranty | 10-Year | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 24.0 x 19.5 x 5.5" |
