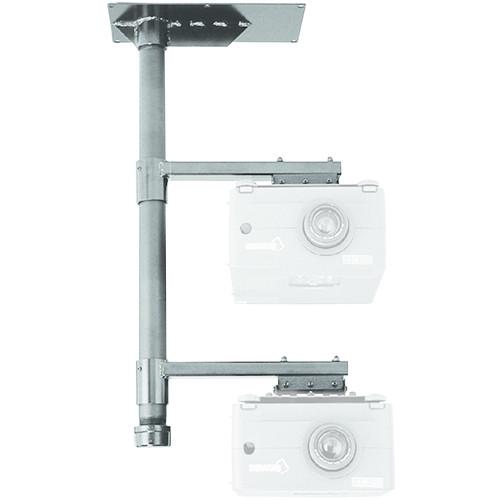

User Manual for Chief LCD Projector Stacking System LCD2C Click to enlarge the picture
Contents of the user manual for the Chief LCD Projector Stacking System LCD2C
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief LCD Projector Stacking System LCD2C contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Chief's LCD Projector Stacking System lets you secure two LCD/DLP projectors to a ceiling or tabletop. Independent roll, pitch and yaw adjustments aid focusing and allow vertical adjustments in the space between projectors. Two RPA or UPC mounts are required to attach the projectors to the arms. Order a complete system, or choose modular components. - Dual Mounting
- the stacker can be secured to either a ceiling or tabletop.
- Multiple Projection
- Two projectors can be installed facing same or opposing directions, inverted or non-inverted.
- Adjustable
- Roll, pitch and yaw adjustments aid precise projection; more options become available when the spacing between projectors is adjusted.
- Complete Arm Rotation
- The stacker arms rotate 360° for a number of viewing options.
- Quick Registration
- The unit provides quick projector disconnect/reconnect and convenient lamp and filter access.
- Compatible With...
- RPA or UPC Series projector mounts.
UPC: 841872002194 In the Box Chief LCD Projector Stacking System LCD2C 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief LCD Projector Stacking System LCD2C in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCD2C Specs | | | Roll | +/- 4° | | Pitch | +/- 25° | | Yaw | +/- 12° | | | | Tabletop To Center Of First Lens | 24" (60.9cm) | | Center To Center | 13.3" (33.8cm) | | | | Adjustable | N/A | | Dimensions | N/A | | | | Tier | 2 | | Construction | Metal | | Color | Black | | Dimensions | W x H x D: 13.7 x 24 x 7.2" (34.9 x 61 x 18.3cm) | | Weight Capacity | 100 lbs (45.5 kg) | | Weight | 15 lbs (6.8 kg) | | Warranty | 10 Year Warranty | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 24.0 x 19.6 x 5.7" |
