User Manual for Chief LCDA230C Non-Inverted, Universal Projector Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Chief LCDA230C Non-Inverted, Universal Projector Ceiling
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief LCDA230C Non-Inverted, Universal Projector Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

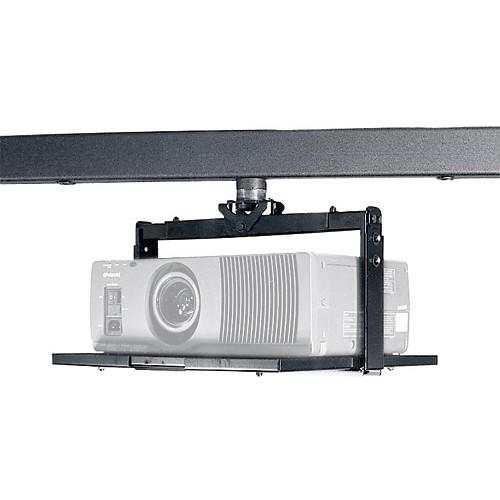

Product description A universal solution for mounting upright LCD or DLP projectors up to 50 lbs, the Chief LCDA230C holds projectors on an adjustable tray and allows you to tighten the mount for a secure fit. Ideal for portable installations in offices and small businesses where the projector is taken down frequently for traveling, the LCDA230C provides independent adjustments for quick, easy registration. Three mounting methods ensure that the unit attaches the projector to almost any ceiling surface.To confirm the compatibility of this mount with your projector, please visit Chief's MountFinder Pro. - Easy installation, no interface bracket required
- Adjustable tray accommodates a wide variety of projectors
- The mount can be tightened around the projector for a secure fit
- Independent Roll (+/-5°), Pitch (+/-90°) and Yaw (360°) adjustments for fast and precise image registration
- For cable management, cables can be routed through top of mount without additional accessories
- Convenient lamp and filter access for no hassle maintenance
- Compact design, takes up minimal space when mounted or stored
- Three ceiling mounting options: flush mount to ceiling (requires the CMA250 Ceiling Mount Adapter) for a low-profile installation; four 1/4" threaded rods (threaded rod not included); or use a 1.5" NPT threaded extension column
UPC: 841872001876 Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief LCDA230C Non-Inverted, Universal Projector Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCDA230C Specs | Depth From Mounting Source | 7.7 - 13.4" (196 - 340mm) | Max Equipment Size | Not Specified by Manufacturer | | Position Locking | N/A | Roll | +/-5° | Pitch | +/-90° | Yaw | 360° | Rotation | No | | Construction | Metal | Color | Black | Dimensions | Maximum Height: 7.7 - 13.4" (196 - 340mm) Maximum Width: 12.7 - 23.3" (324 - 591mm) Tray Depth: 17.8" (450mm) | Weight Capacity | 50 lbs (22.7kg) | Weight | Not Specified by Manufacturer | Warranty | 10-Year Warranty | | Package Weight | 12.45 lb | Box Dimensions (LxWxH) | 19.8 x 14.7 x 4.8" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
